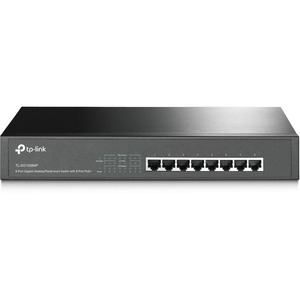

TP-Link Tl-Sg1008Mp 8-port Gigabit PoE+ Switch, 124W PoE Power Supply For All 8 PoE+ Ports - 3 Yr Wty TL-SG1008MP
SKU
412564
Brand
MPN
TL-SG1008MP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$180.00
Buy Now And Earn 180 Reward Points!
TP-Link TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports - 3 Yr WTY
| UPC | 840030700057 |
|---|---|
| ASIN | B07TX5CX37 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1008MP |
| Notes | All eight ports support PoE+ (802.3at) and can auto-detect IEEE 802.3af/at powered devices. Port priority function will disable lower-priority ports if total PoE demand exceeds the unit's power budget. |
| Warranty | 3 Year Limited Warranty |
| Port Type | 10/100/1000 Mbps RJ45 (Auto Negotiation, Auto MDI/MDIX) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Manageable | No (Unmanaged) |
| PoE Budget | 153 W (total) |
| Buffer Size | 1.5 Mbits |
| Description | The TP-Link TL-SG1008MP is an unmanaged Layer 2 Gigabit Ethernet switch with eight 10/100/1000 Mbps RJ45 ports that all support Power over Ethernet Plus (PoE+). It provides simultaneous data and power delivery over a single Ethernet cable to IEEE 802.3af/at compliant devices such as wireless access points, IP cameras and IP phones. The switch offers a total PoE power budget of 153W (up to 30W per port), an energy-efficient design to reduce power consumption, overload protection with port priority, and a sturdy metal chassis with desktop or 1U rack-mount installation. Plug-and-play setup requires no configuration, making it suitable for small business and branch office deployments. |
| Form Factor | Desktop, Rack-mountable (1U) |
| Item Weight | 0.93 lb (14.8 oz) |
| Jumbo Frame | Up to 16 KB |
| Fan Quantity | 1 |
| Manufacturer | TP-Link |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE per Port | Up to 30 W per port |
| Case Material | Metal |
| Product Title | TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Desktop/Rackmount Switch |
| Certifications | FCC CE RoHS |
| Layer Supported | Layer 2 |
| Number of Ports | 8 |
| Transfer Method | Store-and-Forward |
| Hardware Version | V5.60 (software/download page reference) |
| Package Contents | TL-SG1008MP switch Power cord Installation guide Rackmount kit Rubber feet |
| Advanced Features | Plug and play, no configuration required Energy-efficient technology (saves power consumption) Overload protection with port priority IEEE 802.3x flow control MAC address auto-learning and auto-aging QoS support for traffic prioritization |
| Country of Origin | China |
| MAC Address Table | 4K entries |
| Network Technology | 1000Base-T / Gigabit Ethernet |
| Switching Capacity | 16 Gbps |
| Power Supply (Input) | 100-240 VAC, 50/60 Hz |
| Packet Forwarding Rate | 11.904 Mpps |
| Port Priority Function | Yes (priority order: Port 1 > Port 2 > Port 3 > Port 4 > Port 5 > Port 6 > Port 7 > Port 8) |
| Environmental Specifications | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40 to 70 C (-40 to 158 F) Operating Temperature: 0 to 50 C (32 to 122 F) |
| Power Consumption (no PD connected) | Approximately 9.9 W |
TP-Link TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports - 3 Yr WTY
