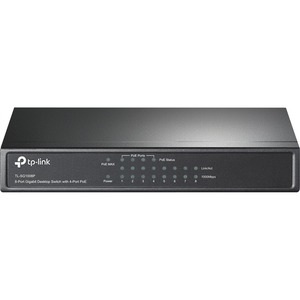

TP-Link Tl-Sg1008P 8-Port Gigabit Desktop PoE Switch, 8 Gigabit RJ45 Ports Including 4 PoE Ports, 53W PoE Power Supply, Steel Case,3 Yr Wty TL-SG1008P
SKU
413302
Brand
MPN
TL-SG1008P
Warranty
Standard Manufacturer's Warranty
$103.00
Buy Now And Earn 103 Reward Points!
TP-Link TL-SG1008P 8-Port Gigabit Desktop PoE Switch, 8 Gigabit RJ45 ports including 4 PoE ports, 53W PoE Power supply, steel case,3 Yr WTY
| QoS | 802.1p / DSCP (port-based QoS) |
|---|---|
| SKU | TL-SG1008P |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1008P |
| Notes | Plug-and-play unmanaged switch. PoE budget figures are vendor-specified and actual available power may vary depending on connected devices and environmental factors. |
| Weight | Approx. 520 g (1.15 lb / 18.34 oz) |
| Fanless | Yes |
| Category | Networking |
| Warranty | 3-Year Limited |
| Multicast | IGMP Snooping |
| Management | Unmanaged |
| Port Speed | 10/100/1000 Mbps |
| Description | Unmanaged 8-port Gigabit desktop switch with 4 PoE+ ports for powering compatible devices over Ethernet. Provides eight 10/100/1000 Mbps RJ45 ports (ports 1–4 support PoE+ 802.3at/af), plug-and-play installation, fanless quiet operation and a durable metal enclosure. Includes QoS (802.1p/DSCP), IGMP snooping and IEEE 802.3x flow control for reliable traffic handling, plus intelligent PoE power management with a 64 W total PoE budget and per-port support up to 30 W. |
| Form Factor | Desktop (wall-mountable) |
| Flow Control | IEEE 802.3X |
| PoE Standard | IEEE 802.3at (PoE+) / IEEE 802.3af |
| Power Source | External power adapter (required for PoE) |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Compatibility | Works with IEEE 802.3af/at compliant Powered Devices (PDs) |
| Product Title | TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4 PoE+ Ports (64W PoE Budget) |
| Certifications | CE FCC RoHS |
| Interface Type | 8 x RJ45 10/100/1000 Mbps (Auto-Negotiation, Auto MDI/MDIX) |
| Layer Supported | Layer 2 |
| Number of Ports | 8 |
| PoE Ports Count | 4 |
| PoE Port Numbers | Ports 1-4 |
| PoE Total Budget | 64 W |
| PoE Per-Port Power | Up to 30 W (per PoE port) |
| Switching Capacity | 16 Gbps (non-blocking) |
| Included Components | TL-SG1008P switch Power adapter User/Installation guide |
| Networking Standards | IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.1p 10/100/1000Base-T |
| Dimensions (W x D x H) | 6.7 x 3.9 x 1.1 inches (170 x 99 x 28 mm) |
| Operating Voltage (PoE) | 48 V (typical PoE voltage) |
| Power Consumption (no PoE) | Approximately 5.4 W |
| Priority / Power Management | Port priority function to protect system when PoE power is overloaded (lowest-priority port cut off when budget exceeded) |
