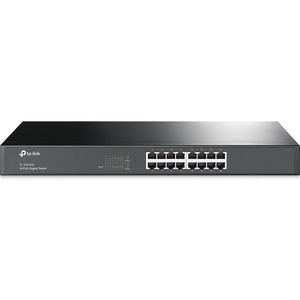

TP-Link Tl-Sg1016 16-Port Gigabit Rackmount Switch - 3 Yr Wty TL-SG1016
SKU
420211
Brand
MPN
TL-SG1016
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$128.00
Buy Now And Earn 128 Reward Points!
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch - 3 Yr WTY
| QoS | 802.1p / DSCP (hardware/version dependent) |
|---|---|
| UPC | 845973020095 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1016 |
| Power | Power Supply: Internal power supply Input Voltage: 100-240 VAC, 50/60 Hz Typical / Max Power Consumption: 9.26 W |
| Weight | 4.41 lbs (2000 g) |
| Fanless | Yes |
| Warranty | 3-Year limited warranty |
| Interface | 16 x 10/100/1000 Mbps RJ45 ports (Auto Negotiation / Auto MDI/MDIX) |
| Dimensions | Depth: 7.1 in (180 mm) Width: 17.3 in (440 mm) Height: 1.7 in (44 mm) |
| Management | Unmanaged (plug-and-play) |
| Description | The TP-Link TL-SG1016 is a compact, unmanaged 16-port Gigabit Ethernet switch designed for desktop or 19" rack deployments. It provides 16 x 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX and auto-negotiation, non-blocking store-and-forward architecture and IEEE 802.3x flow control for reliable wire-speed forwarding. The fanless steel chassis offers quiet operation and durability; energy-efficient features can reduce power use (up to ~40%) and the product complies with RoHS. Ideal for expanding network capacity in home, office or workgroup environments, it includes rackmount kits, rubber feet, power cord and installation guide. |
| Form Factor | Desktop / 19" Rackmountable (1U) |
| Jumbo Frame | 10 KB |
| Switch Type | Unmanaged, Layer 2 |
| Flow Control | IEEE 802.3x (Full Duplex) and backpressure (Half Duplex) |
| Buffer Memory | 4 MB |
| Product Title | TP-Link TL-SG1016 16-Port Gigabit Unmanaged Rackmount Switch (Fanless, Metal) |
| TAA Compliant | No |
| Certifications | FCC CE RoHS |
| Number of Ports | 16 |
| Chassis Material | Metal (steel) |
| Package Contents | 16-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Switching Method | Store-and-Forward |
| Advanced Features | Auto MDI/MDIX Auto-negotiation Non-blocking switching architecture MAC address auto-learning and auto-aging Diagnostic LEDs (power, link/activity, speed) |
| Country of Origin | Vietnam |
| Hardware Versions | V1 V8 V9 V10 V11 V12 V13 V15 V15.60 V17 V17.60 |
| MAC Address Table | 8K entries |
| Network Technology | 10/100/1000Base-T (Gigabit Ethernet) |
| Switching Capacity | 32 Gbps |
| Included Components | TL-SG1016 16-Port Gigabit Switch Power Cord Installation Guide Rackmount Kits / Brackets Rubber Feet |
| Operating Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Packet Forwarding Rate | 23.8 Mpps |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p (QoS/DSCP support on later hardware versions) |
| Compatibility / Use Cases | Compatible with desktop PCs, servers, NAS and other Ethernet devices (10/100/1000 Mbps). Suitable for home, office, workgroup, and small business network expansion. |
| Energy Efficiency / Green Technology | Innovative energy-efficient technology; can automatically reduce power on idle ports and adjust power by cable length (up to ~40% power saving). Most packaging recyclable. RoHS compliant. |
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch - 3 Yr WTY
