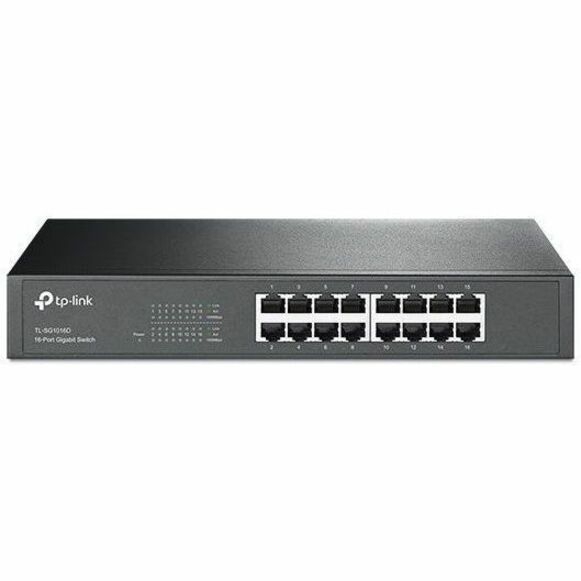

TP-Link16-port Gigabit Switch, 16 10/100/1000M RJ45 Ports, 1U 13-inch Rack-mountable Steel Case TL-SG1016D
SKU
445217
Brand
MPN
TL-SG1016D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$119.00
Buy Now And Earn 119 Reward Points!
16-port Gigabit Switch, 16 10/100/1000M RJ45 ports, 1U 13-inch rack-mountable steel case
| SKU | TL-SG1016D |
|---|---|
| UPC | 845973020613 |
| ASIN | B004ELA0SS |
| Brand | TP-Link |
| Layer | Layer 2 |
| Model | TL-SG1016D |
| Ports | 16 x RJ-45 (Auto Negotiation, Auto MDI/MDIX) |
| Power | Internal 100–240 VAC, 50/60 Hz (IEC power cord) |
| Weight | 2 lb (product weight) |
| Fanless | true |
| Category | Networking |
| Features | Energy-efficient technology (power adjusts by link status/cable length) Auto MDI/MDIX Auto-negotiation MAC address auto-learning and auto-aging Non-blocking switching architecture Flow control (802.3x) and backpressure |
| Warranty | 3 Year Limited (reported) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Port Count | 16 |
| Description | The TP-Link TL-SG1016D is a 16-port unmanaged Gigabit Ethernet switch that provides a plug-and-play upgrade to 10/100/1000 Mbps networks. All 16 RJ-45 ports support auto-negotiation and Auto MDI/MDIX. The switch uses a non-blocking, store-and-forward architecture with IEEE 802.3x flow control and backpressure, a 32 Gbps switching capacity and a 23.8 Mpps forwarding rate. It supports 10KB jumbo frames, an 8K MAC address table and energy-efficient features that reduce power consumption. The metal, fanless design is desktop- and 1U rack-mountable and includes rack brackets, rubber feet, power cord and installation guide. Ideal for small office and workgroup environments that need reliable, high-throughput connectivity without configuration. |
| Form Factor | Desktop / Rackmount (1U) |
| Jumbo Frame | 10 KB |
| Other Notes | Fanless, metal housing; diagnostic LEDs for power, link/activity and speed. |
| Port Speeds | 10/100/1000 Mbps |
| Rack Height | 1U |
| Manufacturer | TP-Link |
| Product Type | Unmanaged Ethernet Switch |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Product Title | TP-Link TL-SG1016D 16-Port Gigabit Unmanaged Switch (Desktop / Rackmount, Metal, Fanless) |
| Certifications | RoHS FCC |
| Shipping Weight | 4.78 lb (reported) |
| Storage Humidity | 5% to 90% non-condensing |
| Switching Method | Store-and-Forward |
| MAC Address Table | 8K |
| Network Technology | Gigabit Ethernet (10/100/1000Base-T) |
| Operating Humidity | 10% to 90% non-condensing |
| Switching Capacity | 32 Gbps |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Included Accessories | Power cord Rackmount kit / brackets Rubber feet Installation guide / documentation |
| Max Heat Dissipation | 31.60 BTU/h |
| Max Power Consumption | 9.26 W (220V/50Hz) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Packet Forwarding Rate | 23.8 Mpps |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
| Manufacturer Part Number | TL-SG1016D |
| Hardware Versions Reported | V12.60 V12 V10.60 V10 V8 V7 V6 V5 V4 V3 |
TP-Link16-port Gigabit Switch, 16 10/100/1000M RJ45 ports, 1U 13-inch rack-mountable steel case
