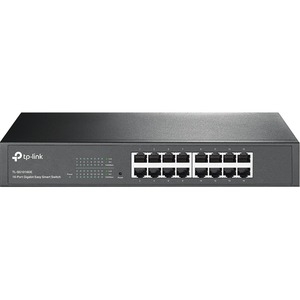

TP-Link16-Port Gigabit Easy Smart Switch, 16 10/100/1000Mbps RJ45 Ports, MTU/Port/Tag-based Vlan, QoS, Igmp Snooping, 1U 13-inch Rack-mountable Steel Case TL-SG1016DE
SKU
435428
Brand
MPN
TL-SG1016DE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$138.00
Buy Now And Earn 138 Reward Points!
16-Port Gigabit Easy Smart Switch, 16 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, 1U 13-inch rack-mountable steel case
| Fan | Fanless |
|---|---|
| MPN | TL-SG1016DE |
| UPC | 845973021269 |
| VLAN | Port-based, Tag-based (802.1Q), MTU VLAN; supports up to 32 simultaneous VLANs (out of 4K VLAN IDs) |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1016DE |
| Ports | 16 x 10/100/1000 Mbps RJ45 |
| Category | Networking |
| Mounting | Rack-mountable (brackets included); desktop (rubber feet included) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Manageable | Easy Smart (web-based UI and TP-Link Easy Smart Utility) |
| Description | TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart switch designed for small and medium business networks. It provides web-based and utility management for basic network monitoring and configuration, including VLAN (port/tag/802.1Q/MTU), QoS (port/802.1p/DSCP, 4 priority queues), IGMP snooping, static link aggregation (LAG), port mirroring, loop prevention and cable diagnostics. The fanless metal desktop/rack-mountable (1U) design supports jumbo frames (reported as 9K or 10KB across listings), a switching capacity of 32 Gbps and a packet forwarding rate of 23.8 Mpps. Energy-efficient features automatically adjust power based on link status and cable length. Package includes the switch, power cord, installation guide, resource CD, rackmount kit and rubber feet. |
| Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Form Factor | Desktop; Rack-mountable (1U) |
| Item Weight | 2 lb (per listing) |
| Jumbo Frame | Up to 9K–10KB (reported values vary across sources) |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation (LAG) Port Mirroring Cable Diagnostics Loop Prevention |
| Manufacturer | TP-Link |
| Power Supply | 100-240VAC, 50/60Hz |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Network Media | 10BASE-T: UTP Cat3/4/5 (max 100m); 100BASE-TX: UTP Cat5/5e (max 100m); 1000BASE-T: UTP Cat5/5e/6 (max 100m); EIA/TIA-568 100Ω STP supported (max 100m) |
| Product Title | TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch |
| Certifications | FCC CE RoHS |
| Interface Type | 16 x 10/100/1000 Mbps RJ45; Auto Negotiation; Auto MDI/MDIX |
| Number of Ports | 16 |
| Additional Notes | Energy-efficient features adjust power based on link status and cable length to reduce power consumption. |
| Link Aggregation | Static link aggregation (LAG) supported |
| Package Contents | TL-SG1016DE switch Power cord Installation guide Resource CD Rackmount kit (brackets and screws) Rubber feet |
| Hardware Versions | V1 V2 V3 V4 V4.20 V4.26 V6 V6.60 V7 V7.60 |
| MAC Address Table | 8K entries |
| Network Technology | 10/100/1000Base-T (Gigabit Ethernet) |
| Quality of Service | Port-based 802.1p DSCP 4 priority queues Rate limit Storm control |
| Switching Capacity | 32 Gbps |
| Management Features | Web-based management page TP-Link Easy Smart Configuration Utility Device IP via DHCP or static Firmware update Backup and restore |
| System Requirements | Microsoft Windows for TP-Link Easy Smart Utility |
| Transmission Method | Store-and-Forward |
| Max Heat Dissipation | 34.5 BTU/h (approx.) |
| Packet Buffer Memory | 4.1 Mbit |
| Max Power Consumption | 10.22 W (220V/50Hz) |
| Packet Forwarding Rate | 23.8 Mpps |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p |
TP-Link16-Port Gigabit Easy Smart Switch, 16 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, 1U 13-inch rack-mountable steel case
