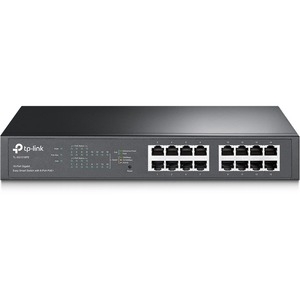

TP-Link 16-Port Gigabit Desktop/Rackmount PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports Including 8 PoE+ Ports, 3-Year Wty TL-SG1016PE
SKU
420210
Brand
MPN
TL-SG1016PE
Warranty
Standard Manufacturer's Warranty
$216.00
Buy Now And Earn 216 Reward Points!
TP-Link 16-Port Gigabit Desktop/Rackmount PoE+ Easy Smart Switch, 16 Gigabit RJ45 ports including 8 PoE+ ports, 110W PoE Power supply, PoE Managment, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Steel case
| QoS | Port-based / 802.1p / DSCP priority; 4 priority queues; rate limit; storm control |
|---|---|
| SKU | TL-SG1016PE |
| UPC | 840460603973 845973098865 |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN support |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1016PE |
| Weight | 3.86 lb |
| Category | Networking |
| Mounting | Desktop or rack-mountable (rackmount kit included) |
| Warranty | 3 Years (as listed) |
| Interface | 16 x 10/100/1000 Mbps RJ45; Auto Negotiation / Auto MDI/MDIX |
| PoE Ports | 8 (Ports 1-8) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Management | Easy Smart: Web-based GUI and Easy Smart Configuration Utility |
| Description | The TP-Link TL-SG1016PE is a 16-port Gigabit Easy Smart switch with 8 PoE+ ports that deliver data and power over a single Ethernet cable. It supports IEEE 802.3af/at PoE standards with up to 30 W per PoE port and a total PoE budget of 150 W. Designed for desktop or rack mounting, the metal-cased TL-SG1016PE provides easy web-based management and TP-Link Easy Smart configuration utility for VLAN, QoS (802.1p/DSCP), IGMP snooping, link aggregation and other L2 features. Additional features include PoE Auto Recovery, PoE prioritization, energy-efficient technology, auto negotiation/MDI-MDIX, and a compact 11.6 x 7.1 x 1.7 in form factor. |
| Jumbo Frame | 10 KB |
| L2 Features | IGMP Snooping v1/v2/v3; static link aggregation; port mirroring; cable diagnostics; loop prevention |
| Ports Total | 16 x 10/100/1000 Mbps RJ45 |
| Fan Quantity | 1 |
| Manufacturer | TP-Link (TP-LINK Technologies Co., Ltd) |
| PoE Features | PoE Management; Extend Mode; PoE Auto Recovery; PoE prioritization (port priority order) |
| PoE Standard | IEEE 802.3af/802.3at (PoE/PoE+) |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Network Media | 10BASE-T: UTP Cat3/4/5 (max 100 m); 100BASE-TX: UTP Cat5/5e (max 100 m); 1000BASE-T: UTP Cat5/5e/6 (max 100 m); EIA/TIA-568 100Ω STP supported |
| Non-PoE Ports | 8 Gigabit RJ45 (non-PoE) |
| Product Title | TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE+ Switch (8 PoE+ Ports, 150W PoE Budget) |
| Certifications | FCC, CE, RoHS |
| Additional Notes | PoE budget calculations are based on laboratory testing; actual PoE power budget may vary due to client limitations and environmental factors. PoE Auto Recovery can automatically reboot unresponsive PoE-powered devices. |
| Package Contents | TL-SG1016PE, power cord, installation guide, rackmount kit, rubber feet |
| PoE Max Per Port | Up to 30 W per port |
| PoE Power Budget | 150 W (total) |
| Storage Humidity | 5–90% non-condensing |
| Hardware Versions | V6.60 V6 V5.60 V5.26 V5.20 V5 V3.60 V3.26 V3.20 V3 V2 V1 |
| MAC Address Table | 8K |
| Power Consumption | 8.8 W (220 V/50 Hz with no PD connected); 172.26 W (220 V/50 Hz with 150 W PD connected) |
| Operating Humidity | 10–90% non-condensing |
| Switching Capacity | 32 Gbps |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Included Accessories | Power cord; rackmount kit; rubber feet; installation guide; TL-SG1016PE unit |
| Max Heat Dissipation | 30.01 BTU/h (no PD); 587.41 BTU/h (with 150 W PD) — as listed |
| Packet Buffer Memory | 4.1 Mbit |
| Operating Temperature | 0–50 °C (32–122 °F) |
| Packet Forwarding Rate | 23.8 Mbps (as listed) |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
TP-Link 16-Port Gigabit Desktop/Rackmount PoE+ Easy Smart Switch, 16 Gigabit RJ45 ports including 8 PoE+ ports, 3-Year WTY
