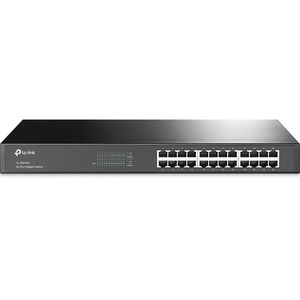

TP-Link 24-port Gigabit Switch - (Tl-Sg1024) - 3 Yr Wty TL-SG1024
SKU
432121
Brand
MPN
TL-SG1024
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $186.00 Regular Price $214.00
Buy Now And Earn 186 Reward Points!
TP-Link 24-port Gigabit Switch - (TL-SG1024) - 3 Yr WTY
| PoE | No |
|---|---|
| QoS | 802.1p/DSCP (supported on V11 and later revisions) |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1024 |
| Power | Power Supply: AC 100-240 V, 50/60 Hz Power Consumption: 13.6 W Max Heat Dissipation: 46.4 BTU/h |
| Weight | ≈2.0 kg (4.41 lb) |
| Cooling | Fanless |
| Warranty | 3-year limited warranty |
| Dimensions | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Management | Unmanaged (plug-and-play) |
| Description | The TP-Link TL-SG1024 is a 24-port unmanaged Gigabit Ethernet switch in a 19" rack-mountable steel case. All 24 RJ45 ports support 10/100/1000 Mbps, auto-negotiation and Auto MDI/MDIX for plug-and-play installation. The switch uses a non-blocking, store-and-forward architecture to provide wire-speed forwarding, a 48 Gbps switching capacity and a 35.7 Mpps packet forwarding rate. It includes energy-efficient features that reduce power based on link status and cable length, Jumbo Frame support (10 KB), IEEE 802.3x flow control (full-duplex) and backpressure (half-duplex). The fanless metal design is suitable for desktop or rack deployment and includes power cord, rackmount kits, rubber feet and an installation guide. |
| Form Factor | 19" rack-mountable steel case; desktop mountable |
| Jumbo Frame | 10 KB |
| Flow Control | IEEE 802.3x (full-duplex), backpressure (half-duplex) |
| Port Details | 24 x 10/100/1000 Mbps RJ45 (Auto MDI/MDIX, Auto-negotiation) |
| Product Type | Unmanaged Gigabit Ethernet Switch |
| Case Material | Metal / Alloy steel |
| Product Title | TP-Link TL-SG1024 24-Port Gigabit Unmanaged Rackmount Switch |
| Certifications | FCC CE RoHS |
| Model Revision | V12 |
| Layer Supported | Layer 2 |
| Number of Ports | 24 |
| Package Contents | TL-SG1024 24-Port Gigabit Switch Power cord Installation guide Rackmount kits Rubber feet |
| MAC Address Table | 8K entries |
| Network Standards | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
| Switching Capacity | 48 Gbps |
| Additional Features | Non-blocking switching architecture MAC address self-learning and auto-aging Store-and-forward transmission Dynamic LED indicators for status and basic diagnostics |
| Packet Forwarding Rate | 35.7 Mpps |
| Energy Efficient Features | Adaptive power savings by detecting link status and cable length; sources report power savings in the range of approximately 25%–40% |
| Environmental Specifications | Storage Humidity: 5%–90% non-condensing Operating Humidity: 10%–90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
TP-Link 24-port Gigabit Switch - (TL-SG1024) - 3 Yr WTY
