TP-Link 24-PORT UNMANAGED GIGABIT DESK/RACK SWITCH, STEEL CASE, 3YR WTY - TL-SG1024D
| MPN | TL-SG1024D |
|---|---|
| UPC | 845973020620 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1024D |
| Weight | 2000 g (4.41 lb) |
| Category | Networking |
| Mounting | Rack-mountable (rackmount kits included) / Desktop (rubber feet included) |
| Warranty | Limited 3-year warranty |
| Interface | 24 x 10/100/1000 Mbps RJ45 (Auto Negotiation / Auto MDI/MDIX) |

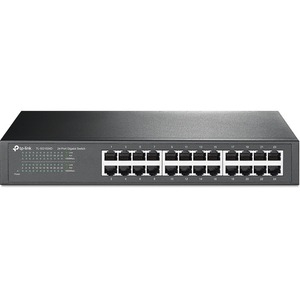

| Description | The TP-Link TL-SG1024D is an unmanaged 24-port Gigabit Ethernet switch designed for desktop or rackmount deployment. It provides 24 x 10/100/1000 Mbps RJ45 ports with Auto MDI/MDIX and auto-negotiation for plug-and-play installation. The switch uses a non-blocking, store-and-forward architecture to forward and filter packets at full wire speed, offering 48 Gbps switching capacity and a packet forwarding rate of 35.7 Mpps. It supports a 10 KB jumbo frame, an 8K MAC address table with auto-learning/auto-aging, and IEEE 802.3x flow control (full-duplex) and backpressure (half-duplex). Energy-efficient features power down idle ports and adjust power based on cable length to reduce consumption (typical savings up to 20%). The fanless design provides quiet operation. Package includes the switch, power cord, installation/user guide, rackmount kits and rubber feet. |
| Form Factor | Desktop / Rack-mountable |
| Jumbo Frame | 10 KB |
| Fan Quantity | Fanless |
| Flow Control | IEEE 802.3x (Full Duplex) / Backpressure (Half Duplex) |
| Manufacturer | TP-LINK Technologies |
| Power Supply | 100-240 VAC, 50/60 Hz (external/internal power supply with included power cord) |
| Product Type | Unmanaged Ethernet Switch |
| Sub-Category | Switches and Hubs |
| Auto Features | Auto MDI/MDIX; Auto-negotiation |
| Product Title | TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Ethernet Switch (Desktop/Rackmount, Fanless) |
| Certifications | FCC RoHS |
| Layer Supported | Layer 2 |
| Number of Ports | 24 |
| Transfer Method | Store-and-Forward |
| Package Contents | 24-Port Gigabit Desktop/Rackmount Switch (TL-SG1024D) Power Cord Installation / User Guide Rackmount Kits Rubber Feet |
| Storage Humidity | 5%–90% non-condensing |
| MAC Address Table | 8K entries |
| Advanced Functions | Port isolation mode (ports 1-22), Loop prevention (ports 1-24); MAC address auto-learning and auto-aging |
| Operating Humidity | 10%–90% non-condensing |
| Switching Capacity | 48 Gbps |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Packet Forwarding Rate | 35.7 Mpps |
| Switching Architecture | Non-blocking |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x |
| Maximum Heat Dissipation | 46.44 BTU/h |
| Energy Efficient Features | Power down idle ports; power adjustment by cable length — up to 20% power savings (manufacturer claim); RoHS compliant; recyclable packaging materials (majority recycled) |
| Maximum Power Consumption | 13.62 W (reported maximum) |
| Data Transfer Rate (per port) | 1000 Mbps |
