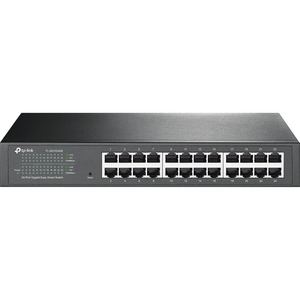

TP-Link 24-port Gigabit Switch - (Tl-Sg1024De) - 3 Yr Wty TL-SG1024DE
SKU
432120
Brand
MPN
TL-SG1024DE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$176.00
Buy Now And Earn 176 Reward Points!
TP-Link 24-port Gigabit Switch - (TL-SG1024DE) - 3 Yr WTY
| PoE | No |
|---|---|
| VLAN | Port-based, tag-based (802.1Q), MTU VLAN; supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1024DE |
| Series | TL-SG1024DE |
| Weight | Approximately 3.75 lb (59.96 oz) reported |
| Warranty | 3-year limited warranty (reported) |
| Interface | 24 10/100/1000 Mbps RJ45 ports; Auto-Negotiation/Auto MDI/MDIX |
| Port Type | 24 x RJ45 (10/100/1000 Mbps) |
| Management | Easy Smart (web GUI and Easy Smart Configuration Utility) — Easy Smart / semi-managed functionality (plug-and-play with configuration options) |
| Description | The TP-Link TL-SG1024DE is a 24-port Gigabit Easy Smart switch designed as an upgrade from unmanaged switches for small and medium business networks. It provides 24 x 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, L2 switching features including IGMP snooping, static link aggregation, port mirroring, cable diagnostics and loop prevention, and flexible VLAN (port/tag/MTU) with support for up to 32 simultaneous VLANs. QoS options (port-based, 802.1p and DSCP), 4 priority queues, rate limiting and storm control help keep latency-sensitive traffic smooth. Energy-efficient technologies automatically adjust power by link status and cable length; manufacturer materials report variable power savings (reported examples include up to 18% and up to 40%). The switch is fanless, metal-cased, rack-mountable (1U) and also suitable for desktop use; it includes a power cord, rackmount kit and rubber feet. |
| Form Factor | Desktop or rack-mountable (1U) |
| Jumbo Frame | Reported as 9K–10KB (sources report 9K and 10KB) |
| L2 Features | IGMP Snooping v1/v2/v3 (optimizes multicast), static link aggregation (up to 8 groups, 4 ports per group reported), port mirroring (one-to-one, many-to-one), cable diagnostics, loop prevention |
| Fan Quantity | Fanless |
| Manufacturer | TP-Link |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Case Material | Metal |
| Product Title | TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch (Desktop / Rackmount) |
| Layer Supported | Layer 2 |
| Number of Ports | 24 |
| Package Contents | TL-SG1024DE switch Power cord Rackmount kit Rubber feet Installation guide Resource CD / documentation |
| Storage Humidity | 5%–90% non-condensing |
| Country of Origin | China (reported) |
| Energy Efficiency | Energy-efficient technologies adjust power by link status and cable length; reported power savings vary by source (examples reported: up to 18%, up to 40%) |
| MAC Address Table | 8K entries |
| Data Rate per Port | 10/100/1000 Mbps |
| Operating Humidity | 10%–90% non-condensing |
| Quality of Service | Port-based, 802.1p, DSCP; 4 priority queues; rate limit; storm control |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Max Heat Dissipation | 48.39 BTU/h (reported) |
| Packet Buffer Memory | 4.1 Mbit |
| Max Power Consumption | 14.19 W (reported) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Packet Forwarding Rate | 35.7 Mpps |
| Standards and Protocols | IEEE 802.3 (10BASE-T) IEEE 802.3u (100BASE-TX) IEEE 802.3ab (1000BASE-T) IEEE 802.3x (flow control) IEEE 802.1q (VLAN tagging) IEEE 802.1p (QoS) |
| Total Switching Capacity | 48 Gbps |
| Certifications/Compliance | FCC CE RoHS |
| Hardware Versions Reported | V4 V7.60 |
| Environmentally Friendly / Compliance Notes | RoHS; energy-saving features as described by manufacturer |
TP-Link 24-port Gigabit Switch - (TL-SG1024DE) - 3 Yr WTY
