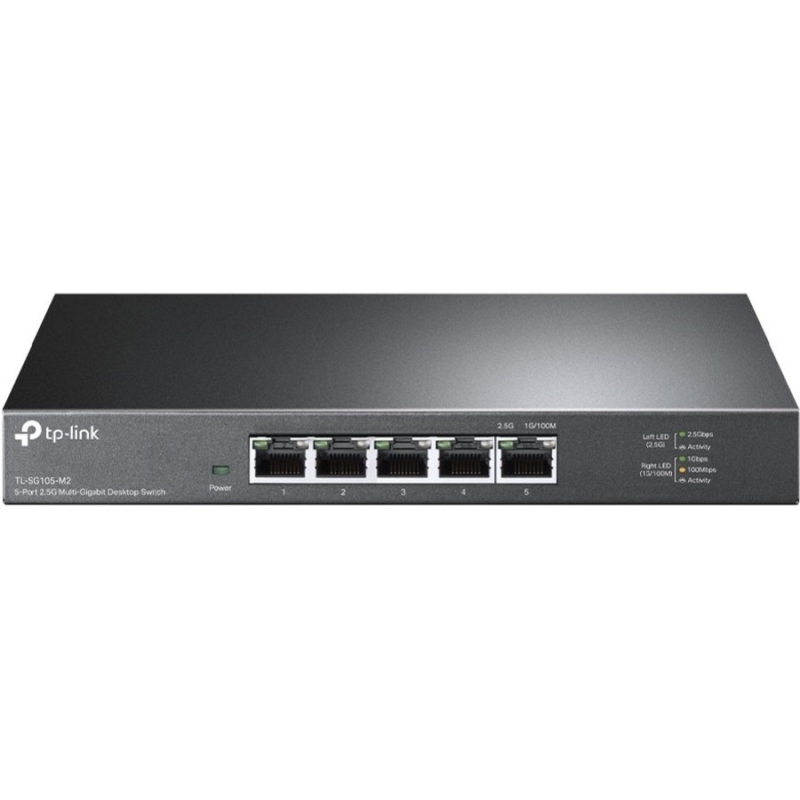

TP-Link 5-Port 2.5G Multi-Gigabit Desktop Switch (Tl-Sg105-M2), 3-Year Wty TL-SG105-M2
SKU
425286
Brand
MPN
TL-SG105-M2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$90.00
Buy Now And Earn 90 Reward Points!
TP-Link 8-Port 2.5G Multi-Gigabit Desktop Switch, PORT: 5× 2.5G RJ45 Ports
SPEC: Desktop Steel Case
FEATURE: Plug and Play
SPEC: Desktop Steel Case
FEATURE: Plug and Play
| Brand | TP-Link |
|---|---|
| Color | Black |
| GTINs | EAN: 6935364052881 UPC: [ "840460605335", "845973089757" ] ASIN: B08ZHGT2ZP |
| Model | TL-SG105-M2 |
| Power | Power Source: External power adapter Adapter Output: 12 V DC, 1 A Max Heat Dissipation: 41.32 BTU/h Max Power Consumption: 12.11 W |
| Warranty | 3 years |
| Port Type | RJ-45 (copper) |
| Dimensions | inches: 8.23 x 4.96 x 1.02 in millimeters: 209 x 126 x 26 mm |
| Manageable | No (Unmanaged) |
| Description | Compact unmanaged 5-port desktop switch providing 2.5 Gbps multi-gigabit RJ45 connectivity for instant network upgrades over existing Cat5e cabling. Features five auto-negotiating 100Mb/1Gb/2.5Gb ports (Auto-MDI/MDIX), fanless metal design for silent operation, desktop or wall-mountable form factor, and plug-and-play deployment. Ideal for connecting 2.5G NAS, WiFi 6 APs, gaming PCs, servers and media devices; includes power adapter, installation guide and rubber feet. |
| Form Factor | Desktop; wall-mountable |
| Item Weight | 0.56 kg |
| Jumbo Frame | 10 KB |
| Port Speeds | 100 Mbps / 1 Gbps / 2.5 Gbps (auto-negotiation) |
| Fan Quantity | Fanless (silent operation) |
| Manufacturer | TP-Link (TP-LINK Technologies Co., Ltd) |
| Auto-MDI/MDIX | Yes |
| Case Material | Metal |
| Product Title | TP-Link TL-SG105-M2 5-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch |
| Certifications | CE FCC RoHS |
| LED Indicators | System/Power: 1 Link/Activity per port: 5 |
| Layer Supported | Layer 2 |
| Number of Ports | 5 |
| Auto-Negotiation | 100Mb/1Gb/2.5G (per port) |
| Mounting Options | Desktop Wall-mount |
| Country of Origin | China |
| Hardware Versions | V3.60 V3 V2.60 V2 V1 |
| MAC Address Table | 16 K |
| Alternate Model(s) | TL-SG105S-M2 |
| Model Number / MPN | TL-SG105-M2 |
| Network Technology | 2.5GBase-T / Multi-Gigabit Ethernet |
| Notes / Highlights | Provides up to 25 Gbps switching capacity across five 2.5Gbps ports Supports 2.5G speeds over Cat5e or better cabling Plug-and-play, no configuration required |
| QoS / Flow Control | 802.3X Flow Control 802.1p / DSCP QoS |
| Switching Capacity | 25 Gbps |
| Transmission Method | Store-and-forward |
| Included Accessories | Power adapter Installation guide Rubber feet |
| Packet Buffer Memory | 1.5 Mb |
| Packet Forwarding Rate | 18.6 Mpps |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p IEEE 802.3bz |
TP-Link 5-Port 2.5G Multi-Gigabit Desktop Switch (TL-SG105-M2), 3-Year WTY
