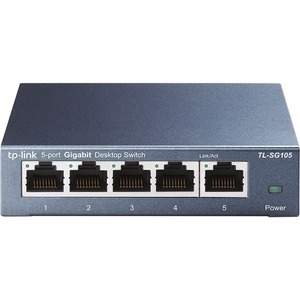

TP-Link 5-Port 10/100/1000Mbps Desktop Switch(TL-SG105), 3-Year Wty TL-SG105
SKU
425976
Brand
MPN
TL-SG105
Warranty
Standard Manufacturer's Warranty
$37.00
Buy Now And Earn 37 Reward Points!
TP-Link 5-Port 10/100/1000Mbps Desktop Switch(TL-SG105), 3-Year WTY
| SKU | TL-SG105 |
|---|---|
| Brand | TP-Link |
| Model | TL-SG105 |
| Ports | 5 |
| Fanless | true |
| Warranty | 3 Year limited warranty |
| Interface | 5 × 10/100/1000 Mbps RJ45 ports, Auto-Negotiation, Auto MDI/MDIX |
| Port Type | RJ45 |
| Unmanaged | true |
| Description | The TP-Link TL-SG105 is a compact, unmanaged 5-port Gigabit Ethernet switch that expands wired network capacity with five 10/100/1000 Mbps RJ45 ports (Auto-Negotiation, Auto MDI/MDIX). Plug-and-play installation requires no configuration. The fanless, metal-cased design supports desktop or wall mounting and includes Link/Act LEDs built into each port. Layer 2 features include IEEE 802.3x flow control, 802.1p/DSCP QoS and IGMP Snooping for traffic optimization and latency-sensitive applications. Energy-efficient Green Ethernet automatically adjusts power by link status and cable length to reduce consumption (up to 65%). Includes external 5 V DC, 0.6 A power adapter and installation guide. Certified CE/FCC/RoHS and backed by a 3-year limited warranty. |
| Item Weight | 7.76 ounces |
| Jumbo Frame | 16 KB |
| Port Speeds | 10/100/1000 Mbps (Gigabit) |
| UPC / GTINs | 845973021146 840460604031 06935364021320 |
| Flow Control | IEEE 802.3x |
| Product Type | Unmanaged Ethernet Switch |
| Case Material | Metal |
| IGMP Snooping | Yes |
| Product Title | TP-Link TL-SG105 5-Port Gigabit Unmanaged Ethernet Switch |
| Standby Power | 0.445 W (reported on some units) |
| Certifications | CE FCC RoHS |
| Finish / Color | Blue-grey metal (navy/blue-grey finish reported) |
| LED Indicators | System Power; Link/Act per port (built into each RJ-45) |
| Layer Supported | Layer 2 |
| Mounting Options | Desktop Wall-mount |
| Storage Humidity | 5–90% RH non-condensing |
| Switching Method | Store-and-Forward |
| MAC Address Table | 2K entries |
| Operating Humidity | 10–90% RH non-condensing |
| Quality of Service | 802.1p / DSCP QoS |
| Included Components | TL-SG105 5-Port Switch External Power Adapter (5 V DC / 0.6 A) Installation Guide |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Max Heat Dissipation | ≈7.8 BTU/h |
| Packet Buffer Memory | 1 Mb |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Packet Forwarding Rate | 7.4 Mpps |
| Power Adapter (Output) | 5 V DC / 0.6 A |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p |
| Advertised Power Savings | Up to 65% |
| Additional Features / Notes | Plug-and-play, no configuration required Auto MDI/MDIX eliminates need for crossover cables Single link/activity LED per port Kensington lock slot (reported in teardown notes) Store-and-forward switching |
| Energy Efficient Technology | Green Ethernet (automatic power adjustment by link status and cable length) |
| Product Dimensions (metric) | 100 x 98 x 25 mm |
| Switch Chip / Internal Notes | Realtek RTL8367S (reported in teardown notes) |
| Product Dimensions (imperial) | 3.9 x 3.9 x 1.0 in |
| Power Consumption (typical/max) | 2.3 W |
