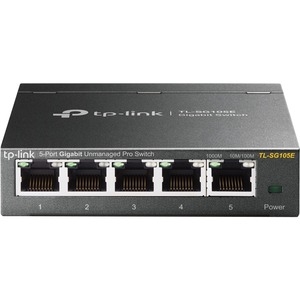

TP-Link5-Port Gigabit Desktop Easy Smart Switch, 5 10/100/1000Mbps RJ45 Ports, MTU/Port/Tag-based Vlan, QoS, Igmp Snooping TL-SG105E
SKU
425988
Brand
MPN
TL-SG105E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$41.00
Buy Now And Earn 41 Reward Points!
5-Port Gigabit Desktop Easy Smart Switch, 5 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping
| Fan | Fanless |
|---|---|
| UPC | 0845973022037 |
| VLAN | Port-based, Tag-based (802.1Q), MTU VLAN; supports up to 32 simultaneous VLANs (from 4K VLAN IDs) |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG105E |
| Weight | 0.43 kg (15.1 oz) |
| Warranty | Limited 3-year manufacturer warranty (majority of distributor listings) |
| Port Type | 10/100/1000 Mbps RJ45 (AUTO Negotiation, AUTO MDI/MDIX) |
| Manageable | Yes (Easy Smart management) |
| Description | Compact 5-port Gigabit Easy Smart switch for small and medium business networks. The TL-SG105E provides five 10/100/1000 Mbps RJ45 ports in a durable metal desktop enclosure with fanless operation. It offers basic managed features via a web UI and the Easy Smart Configuration Utility (Windows) — including VLAN (port/tag/MTU), port mirroring, port-based and 802.1p/DSCP QoS, IGMP snooping, loop prevention, cable diagnostics and static link aggregation — to improve traffic management and network segmentation. Energy-efficient design reduces power consumption (manufacturer claims up to 75% savings). Package includes the TL-SG105E unit, external power adapter, installation guide and rubber feet. |
| Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Form Factor | Desktop (wall-mountable) |
| Jumbo Frame | Approximately 15K–16K bytes (manufacturer/partner listings vary) |
| L2 Features | IGMP Snooping v1/v2/v3 Static Link Aggregation (LAG) Port Mirroring Cable Diagnostics Loop Prevention Storm Control |
| Power Supply | External power adapter. Manufacturer specification lists output as 5 V DC / 0.6 A; some third-party sources report 9 V DC / 0.6 A (sources conflict). |
| Product Line | EasySmart |
| Network Media | 10BASE-T: UTP Cat3/4/5 (max 100m) / 100BASE-TX: UTP Cat5/5e (max 100m) / 1000BASE-T: UTP Cat5/5e/6+ (max 100m); EIA/TIA-568 100Ω STP supported (max 100m) |
| Product Title | TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch |
| Certifications | FCC CE RoHS |
| Layer Supported | Layer 2 |
| Number of Ports | 5 |
| Hardware Version | V5 (manufacturer listings) / V5.60 (firmware/download pages) |
| Housing Material | Metal casing |
| Country of Origin | Reported as Vietnam (per some distributor listings); other listings cite China |
| Energy Efficiency | Green technology (automatic port power-down on unused ports); manufacturer claims up to 75% power savings |
| MAC Address Table | 2 K entries |
| Data Transfer Rate | 1 Gbps per port |
| Quality of Service | Port-based / 802.1p / DSCP priority; 4 priority queues; rate limit |
| Support / Downloads | TP-Link support downloads (firmware and Easy Smart Configuration Utility for Windows) — see TP-Link product support pages |
| Included Accessories | Power adapter Installation guide Rubber feet |
| Kensington Lock Slot | Yes (slot present) |
| Max Heat Dissipation | 9.62 BTU/h (per TP-Link spec) |
| Packet Buffer Memory | 1 Mb |
| Management Interfaces | Web UI, Easy Smart Configuration Utility (Windows) |
| Max Power Consumption | Approximately 2.7–2.82 W (per product listings) |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Packet Forwarding Rate | 7.4 Mpps |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p |
TP-Link5-Port Gigabit Desktop Easy Smart Switch, 5 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping
