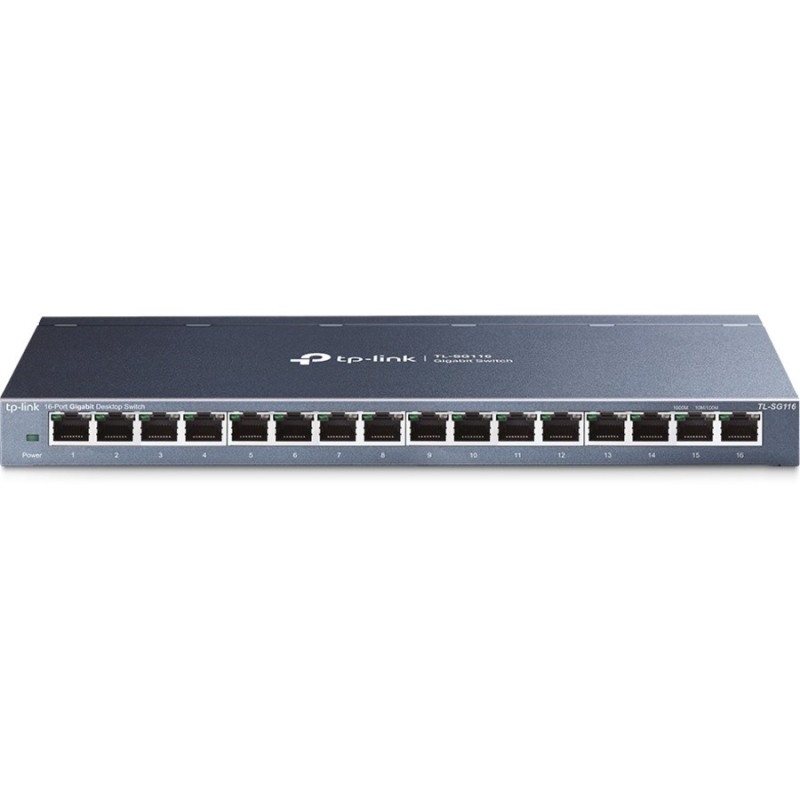

TP-Link16-Port Gigabit Desktop Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case TL-SG116
SKU
445218
Brand
MPN
TL-SG116
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$103.00
Buy Now And Earn 103 Reward Points!
16-Port Gigabit Desktop Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case
| SKU | TL-SG116 |
|---|---|
| UPC | 845973084325 |
| ASIN | B07GR9S6FN |
| GTIN | 6935364084332 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG116 |
| Ports | 16 x RJ45 |
| Weight | Product Weight: 1.32 kg (approx. 2.9 lb) (reported) Shipping Weight: 3 lb (reported by some sellers) |
| Fanless | Yes |
| Category | Networking |
| Warranty | 2 Year (reported) |
| Stackable | No |
| Dimensions | Width: 4.4 in Height: 1 in Length: 11.3 in Width_mm: 111.7 Height_mm: 25.4 Length_mm: 286 |
| Port Speed | 10/100/1000 Mbps (Gigabit) |
| Description | The TP-Link TL-SG116 is a 16-port unmanaged Gigabit Ethernet switch that delivers simple, reliable Gigabit connectivity for small offices and home networks. It features sixteen 10/100/1000 Mbps RJ45 ports with Auto-Negotiation and Auto-MDI/MDIX for plug-and-play installation, a sturdy fanless metal housing for quiet operation, and desktop or wall-mount versatility. Energy-efficient Green Ethernet technology reduces power consumption, while IEEE 802.1p/DSCP QoS, IGMP Snooping and IEEE 802.3x flow control optimize traffic for latency-sensitive applications. The switch provides a 32 Gbps switching capacity (approx. 23.8 Mpps forwarding rate), supports jumbo frames up to 9,000 bytes, and includes an external power adapter. |
| Form Factor | Desktop (wall-mountable) |
| Switch Type | Unmanaged |
| Uplink Port | No dedicated uplink port (any port can be used) |
| Flow Control | IEEE 802.3x |
| Jumbo Frames | Up to 9000 bytes |
| Manufacturer | TP-Link |
| Power Source | External power adapter (included) |
| Sub-Category | Switches and Hubs |
| VLAN Support | Reported (basic VLAN features listed by some sources) |
| IGMP Snooping | Yes |
| Port Features | Auto-Negotiation; Auto MDI/MDIX |
| Product Title | TP-Link TL-SG116 16-Port Gigabit Unmanaged Desktop/Wall-Mount Switch |
| Port Mirroring | Reported by some sources |
| Forwarding Rate | 23.8 Mpps (approx.) |
| Layer Supported | Layer 2 |
| Number of Ports | 16 |
| Energy Efficient | Green Ethernet technology (adjusts power by link status/cable length) |
| Housing Material | Metal / Steel |
| Link Aggregation | Reported by some sources |
| Number of Queues | 4 |
| Storage Humidity | 5%–90% non-condensing |
| Country of Origin | China (reported) |
| Hardware Versions | V1 V1.20 V1.26 V2 V2.60 |
| MAC Address Table | 8,000 entries |
| Power Consumption | Approximately 9.3–10 W (reported) |
| Operating Humidity | 10%–90% non-condensing |
| Switching Capacity | 32 Gbit/s |
| Included Components | Switch Power adapter Installation guide / Quick start guide Rubber feet |
| Storage Temperature | -40 to 70 °C |
| Networking Standards | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Flow Control) IEEE 802.1p (QoS) IEEE 802.1Q (VLAN tagging) (reported) |
| Packet Buffer Memory | 4.1 MB |
| Operating Temperature | 0 to 40 °C |
| Input Current (reported) | 0.6–1 A (varies by region/model) |
| Manufacturer Part Number | TL-SG116 |
| Quality of Service (QoS) | 802.1p / DSCP |
| Power Over Ethernet (PoE) | No |
| DC Input Voltage (reported) | 9 V or 12 V (varies by region/model) |
| Compatible Systems / Devices | Windows / macOS / Linux; desktops and network devices with RJ45 |
| Datasheet / Manual Links (reported) | https://www.tp-link.com/us/products/details/tl-sg116.html https://www.tp-link.com/us/document/116149/ https://www.tp-link.com/us/document/4305/ https://www.tp-link.com/us/document/901/ |
| Environmentally Friendly / Compliance | RoHS compliant; energy-efficient design |
