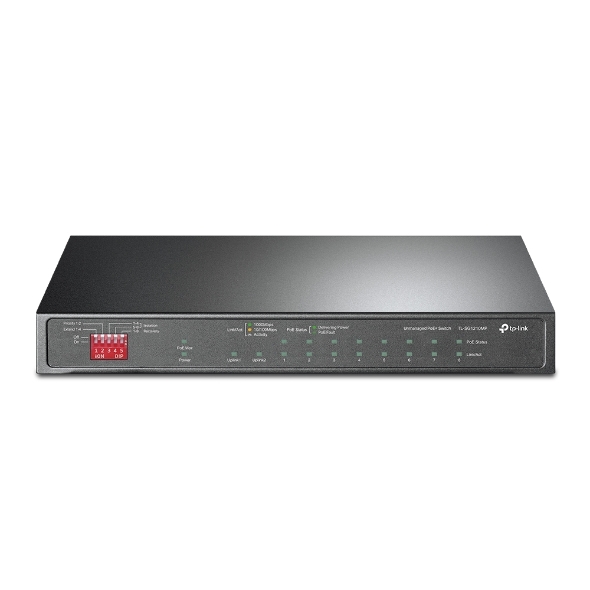

TP-Link Tl-Sg1210Mp 10-Port Gigabit Desktop Switch With 8-Port PoE+, 3-Year Wty TL-SG1210MP
SKU
405435
Brand
MPN
TL-SG1210MP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$176.00
Buy Now And Earn 176 Reward Points!
TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+,
PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot
SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case
FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, PoE Auto Recovery, Plug and Play"
PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot
SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case
FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, PoE Auto Recovery, Plug and Play"
| SKU | TL-SG1210MP |
|---|---|
| UPC | 845973099534 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1210MP |
| Ports | 10 total: 9 × 10/100/1000 Mbps RJ45 + 1 × 1000 Mbps combo SFP/RJ45 |
| Weight | 0.62 kg (1.36 lb) |
| Warranty | Limited lifetime protection (reported on multiple listings) |
| PoE Ports | Ports 1–8 (802.3af/at PoE+) |
| Description | Unmanaged 10-port Gigabit switch designed for small offices and SOHO. Provides 8 PoE+ ports (IEEE 802.3af/at) that automatically detect and power compliant PDs (up to 30 W per port) with an intelligent 123 W total PoE budget. The unit features 9 × Gigabit RJ45 ports plus 1 × Gigabit combo SFP/RJ45 port, plug-and-play operation, fanless metal housing, and advanced PoE functions including Extend Mode (up to 250 m, speed reduced to 10 Mbps), Priority Mode (ports 1–2), Isolation Mode (ports 1–4 / 5–8), and PoE Auto Recovery to reboot unresponsive PDs. Compact desktop / wall-mountable form factor with external 53.5 VDC / 2.43 A power adapter and basic switching specs suitable for reliable small-network deployments. |
| Extend Mode | Supports up to 250 m data and power transmission on designated ports (speed reduced to 10 Mbps) |
| Jumbo Frame | Up to 16 KB |
| Fan Quantity | Fanless |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Product Type | Unmanaged Ethernet Switch |
| Case Material | Metal |
| Network Media | 10BASE-T: UTP Cat3/4/5 (max 100 m); 100BASE-TX: UTP Cat5/5e (max 100 m); EIA/TIA-568 100Ω STP (max 100 m) |
| Priority Mode | Ports 1–2 |
| Product Title | TP-Link TL-SG1210MP — 10-Port Gigabit Desktop Switch with 8-Port PoE+ (123W) |
| Certifications | FCC CE RoHS |
| Isolation Mode | Ports 1–4 and 5–8 separation |
| Features Summary | Unmanaged plug-and-play operation 8 PoE+ ports with intelligent power management and per-port priority Extend Mode up to 250 m for surveillance deployments Isolation Mode for client traffic separation PoE Auto Recovery to reboot unresponsive PDs Fanless, metal design for quiet and durable operation |
| Package Contents | TL-SG1210MP switch Power adapter Installation guide |
| Storage Humidity | 5–90% RH non-condensing |
| Hardware Versions | V3.60 V3.40 V3 V2 |
| MAC Address Table | 4K entries |
| PoE Auto Recovery | Automatic detection and reboot of unresponsive PoE devices (ports 1–8) |
| Ports Detail Note | Provides 8 PoE-capable ports and 2 non-PoE uplink-capable Gigabit ports (one configured as a combo SFP/RJ45) |
| Interface Features | Auto Negotiation, Auto MDI/MDIX |
| Operating Humidity | 10–90% RH non-condensing |
| PoE Power per Port | Up to 30 W (per PoE port) |
| Switching Capacity | 20 Gbps |
| Included Components | TL-SG1210MP; Power Adapter; Installation Guide |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Transmission Method | Store-and-Forward |
| Max Heat Dissipation | 27.04 BTU/h (no PD); 482.17 BTU/h (with 123 W PD) |
| External Power Supply | External power adapter (Output: 53.5 V DC / 2.43 A) |
| Max Power Consumption | 7.93 W (no PD connected); 141.40 W (with 123 W PD connected) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Dimensions (W x D x H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Form Factor / Mounting | Desktop; wall-mountable |
| Packet Forwarding Rate | 14.88 Mpps |
| Total PoE Power Budget | 123 W |
| Manufacturer Part Number (MPN) | TL-SG1210MP |
TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+, 3-Year WTY
