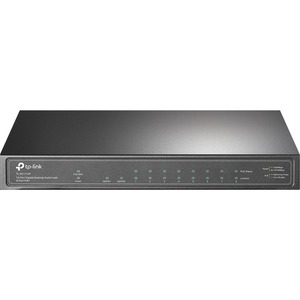

10-Port Gigabit Desktop Switch With 8-Port PoE+ TL-SG1210P
SKU
425999
Brand
MPN
TL-SG1210P
Warranty
Standard Manufacturer's Warranty
$133.00
Buy Now And Earn 133 Reward Points!
2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Desktop, Wall Mountable
| Brand | TP-Link |
|---|---|
| Color | Black |
| Model | TL-SG1210P |
| Weight | 2.7 lb |
| Managed | Unmanaged (Plug and Play) |
| Warranty | 3 Years |
| PoE Ports | 8 (ports 1–8) |
| Description | The TP-Link TL-SG1210P is an unmanaged 10-port Gigabit desktop/wall-mount switch with eight 802.3at/af PoE+ ports (ports 1–8), one Gigabit RJ45 uplink port and one Gigabit SFP slot. It delivers up to 30 W per PoE port with a shared 63 W PoE budget, a 20 Gbps switching capacity and 14.88 Mpps packet forwarding rate. Fanless, metal design supports quiet operation for small office, surveillance and wireless deployments. Advanced L2 features include 802.1p/DSCP QoS, IGMP snooping, 802.3x flow control, Extend Mode (up to 250 m on designated ports), Priority and Isolation modes, and PoE Auto Recovery. Plug-and-play operation with no configuration required. |
| Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Form Factor | Desktop; wall-mountable |
| Jumbo Frame | 16 KB |
| SFP Support | 1 × Gigabit SFP (1000BASE-X; MMF/SMF) |
| Fan Quantity | Fanless |
| PoE Standard | IEEE 802.3af/802.3at (PoE+) |
| Power Supply | External power adapter (53.5 V DC / 1.31 A) |
| Case Material | Metal |
| Network Media | UTP Cat3/4/5/5e/6 (up to 100 m), 100Ω STP (up to 100 m), 1000BASE-X fiber |
| Product Title | TP-Link TL-SG1210P 10-Port Gigabit Unmanaged Desktop PoE+ Switch (8 PoE+ Ports, 63W Budget, 1 SFP) |
| Certifications | CE FCC RoHS |
| Layer Supported | Layer 2 |
| Number of Ports | 10 (9 x Gigabit RJ45, including 8 x PoE+; 1 x Gigabit SFP) |
| Package Content | TL-SG1210P switch Power adapter Installation guide |
| Hardware Version | V4.60 |
| Max PoE per Port | Up to 30 W per port |
| PoE Power Budget | 63 W (total) |
| Advanced Features | 802.1p/DSCP QoS IGMP snooping 802.3x Flow Control (EEE) Extend Mode (ports 1–4 up to 250 m) Priority Mode (ports 1–2) Isolation Mode (ports 1–4 / 5–8) PoE Auto Recovery Intelligent PoE power management |
| MAC Address Table | 4K |
| Power Consumption | No PD Connected: ≈ 7.0 W With Full PoE Load (63 W PD connected): ≈ 77.24 W |
| Data Transfer Rate | Gigabit Ethernet (1000Base-T, 1000Base-X) |
| Port Configuration | 8× 10/100/1000 Mbps RJ45 PoE+ ports (ports 1–8), 1× Gigabit RJ45 uplink port, 1× Gigabit SFP port |
| Switching Capacity | 20 Gbps |
| Transmission Method | Store-and-Forward |
| Included Accessories | Power adapter (External; Output: 53.5 V DC / 1.31 A) Installation guide |
| Max Heat Dissipation | No PD Connected: 23.87 BTU/h With 63W PD Connected: 263.39 BTU/h |
| Dimensions (W x D x H) | Metric: 209 × 126 × 26 mm Imperial: 8.2 × 5 × 1 in |
| Packet Forwarding Rate | 14.88 Mpps |
| Physical Security Lock | Yes |
| Compatibility / Recommended Use | IP cameras Wireless access points IP phones Computers and printers Small office and surveillance deployments |
10-Port Gigabit Desktop Switch with 8-Port PoE+
