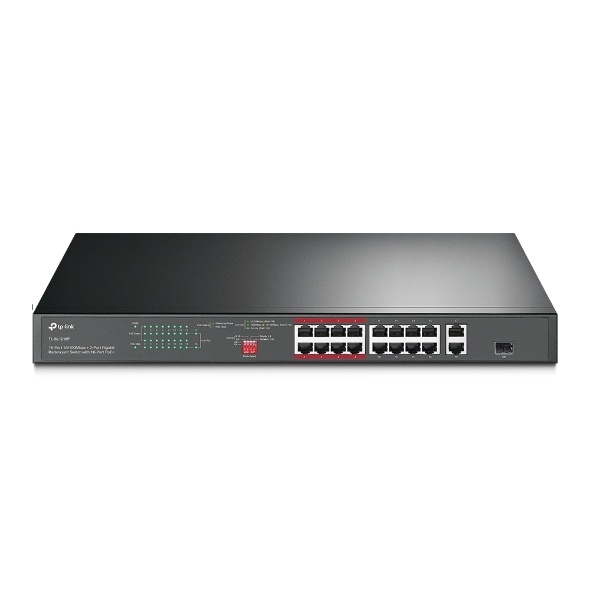

Tp-Link 18-Port Unmanaged Gigabit Rackmount Switch, POE+(16), SFP(2),250W, Metal Case, 5YR TL-SG1218MP

Name: Tp-Link 18-Port Unmanaged Gigabit Rackmount Switch, POE+(16), SFP(2),250W, Metal Case, 5YR TL-SG1218MP
Brand: Tplink
SKU: 301132
Price: 286 AUD
Availability: InStock

SKU

301132

Brand

Tplink

Manufacturer Link

MPN

TL-SG1218MP

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

$286.00

Buy Now And Earn 286 Reward Points!

16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	• 16× PoE+ gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Fan Quantity	2
Physical Security Lock	Yes
Power Supply	100–240 VAC, 50/60 Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	• 21.4 W (220/50 Hz. no PD connected) • 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation	• 72.97 BTU/h (no PD connected) • 977.44 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame	10 KB

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SG1218MP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet
Environment	• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
