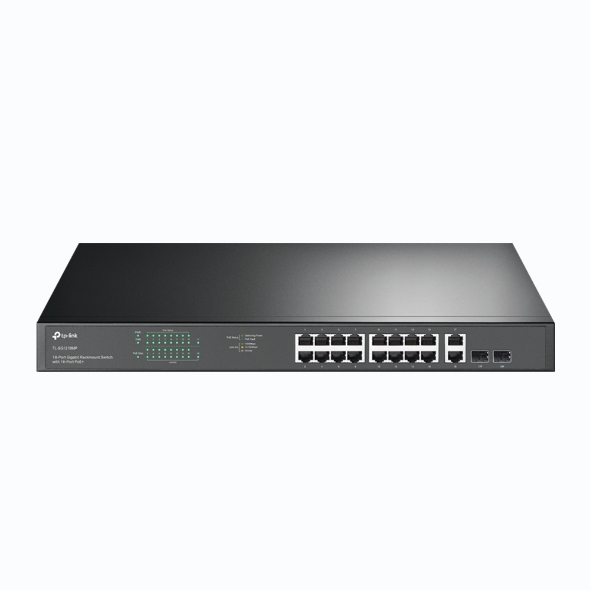

main product photo

TP-Link 18-Port Gigabit Rackmount Switch With 16-Port PoE+, 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit Sfp Slots, 3-Year Wty TL-SG1218MP

SKU
405434
Brand
Tp-link
Manufacturer Link
MPN
TL-SG1218MP
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$311.00
Buy Now And Earn 311 Reward Points!
Add to Compare
TP-Link18-Port Gigabit Rackmount Switch with 16-Port PoE+
PORT: 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots
SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Plug and Play
Fans2
BrandTP-Link
ColorBlack
ModelTL-SG1218MP
NotesPoE budget figures are based on laboratory testing; actual PoE power available may vary depending on powered device requirements and environmental factors. In Extend mode port speed will downgrade to 10 Mbps and maximum distance depends on cable quality and PD power consumption.
WeightApproximately 2.36 kg (5.19 lb)
ManagedNo
Warranty3-Year (manufacturer)
Data Rate10/100/1000 Mbps per Gigabit port
SFP Slots2 x Gigabit combo SFP (shared/mini-GBIC)
Interfaces16 x PoE+ Gigabit RJ45 2 x Gigabit RJ45 (non-PoE) 2 x Combo Gigabit SFP
DescriptionThe TP-Link TL-SG1218MP is an 18-port Gigabit rackmount switch with 16 IEEE 802.3at/af PoE+ RJ45 ports, 2 Gigabit non-PoE RJ45 ports and 2 combo Gigabit SFP slots. It provides up to 30 W per PoE port with a total PoE power budget of 250 W and features plug-and-play operation with QoS (802.1p/DSCP) and IGMP snooping for improved voice/video performance. Hardware highlights include a sturdy metal chassis, professional heat dissipation, 19" 1U rack mountability, dual fans, physical security lock, and intelligent PoE power management (priority/port isolation/auto recovery/extend mode). Ideal for IP cameras, access points, IP phones and other PoE devices.
Form FactorRack-mountable (19" 1U), Desktop-capable
Jumbo Frame10 KB
PoE FeaturesIntelligent Power Management (auto power cut for lower-priority ports when budget exceeded) Priority mode (ports 1–4) Isolation mode (ports 1–8 / 9–16) Extend mode (ports 1–4 up to 250 m, speed downgraded to 10 Mbps) PoE Auto Recovery (ports 1–16)
PoE StandardIEEE 802.3af IEEE 802.3at
Power SupplyAC 100–240 V, 50/60 Hz (internal)
Product LineJetStream
Product TypeEthernet Switch
Network Media10BASE-T: UTP Cat3/4/5 (max 100 m) 100BASE-TX: UTP Cat5/5e (max 100 m) 1000BASE-T: UTP Cat5/5e/6+ (max 100 m) 1000BASE-X: MMF/SMF
Ports - Total18
Product TitleTP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch (16 x PoE+ / 250W)
CertificationsCE FCC RoHS
Layer SupportedLayer 2
Chassis MaterialMetal
Storage Humidity5–90% RH non-condensing
Country of OriginChina
MAC Address Table8K
Physical SecurityKensington-style/physical security lock supported
Operating Humidity10–90% RH non-condensing
PoE Power per PortUp to 30 W (per PoE port)
Ports - PoE (RJ45)16
Switching Capacity36 Gbps
Storage Temperature-40–70 °C (-40–158 °F)
Included AccessoriesPower cord Rackmount kit Rubber feet Installation guide
Max Heat DissipationReported values vary by test condition (examples: ~64.79–73.0 BTU/h no PD; ~977.4–1000.29 BTU/h with 250 W PD)
Packet Buffer Memory4.1 Mbit
Max Power ConsumptionReported values vary by test condition (examples: 19–21.4 W no PD connected; ~286.6–293.34 W with 250 W PDs connected)
Operating Temperature0–50 °C (32–122 °F)
Dimensions (W x D x H)17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
Packet Forwarding Rate26.78 Mbps
Ports - Non-PoE (RJ45)2
Total PoE Power Budget250 W
Standards and ProtocolsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.3af IEEE 802.3at IEEE 802.1p IEEE 802.1q
TP-Link 18-Port Gigabit Rackmount Switch with 16-Port PoE+, 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots, 3-Year WTY
