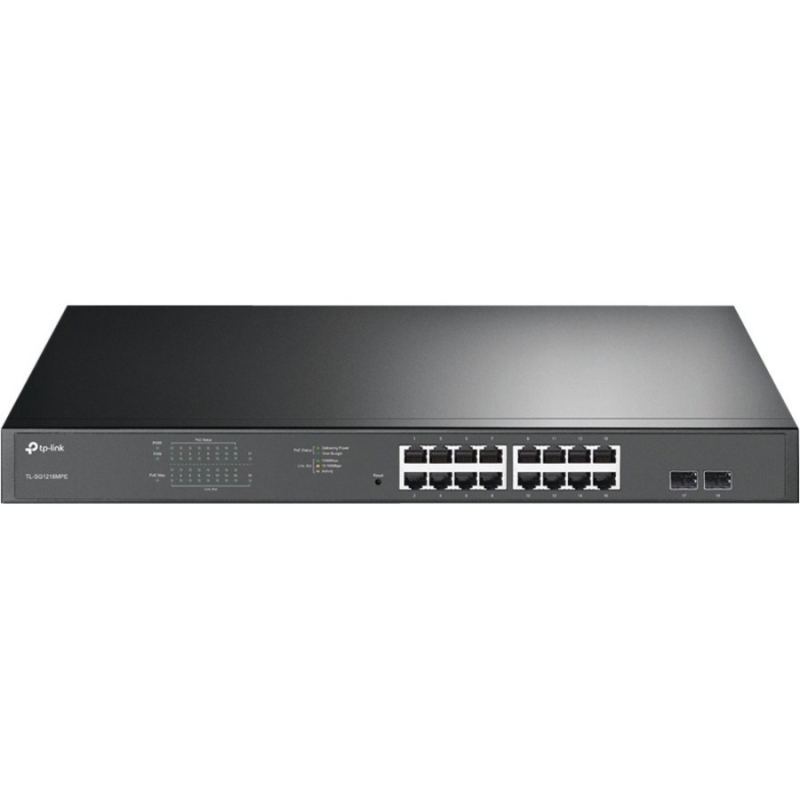

TP-Link 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 Sfp Slots, 3-Year Wty TL-SG1218MPE
SKU
410833
Brand
MPN
TL-SG1218MPE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$344.00
Buy Now And Earn 344 Reward Points!
TP-Link 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 802.3at/af, 192W PoE Power, 1U 19-inch Rack-mountable Steel Case, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management
| SKU | TL-SG1218MPE |
|---|---|
| UPC | 840460604154 845973086923 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1218MPE |
| Notes | Some vendor sources report a 192 W PoE budget in product text for certain revisions; available specifications across sources list the PoE power budget as 250 W. Values shown reflect the majority / higher-confidence specification across provided sources. |
| Cooling | Fan-cooled |
| Category | Networking |
| Material | Metal |
| Warranty | 3 Year Manufacturer's Warranty |
| PoE Ports | 16 |
| SFP Slots | 2 |
| Interfaces | 16 x Gigabit RJ45 PoE+ 2 x Gigabit RJ45/SFP combo SFP (mini-GBIC) |
| Manageable | Easy Smart (web-based UI and management utility) |
| Description | The TP-Link JetStream TL-SG1218MPE is an 18-port Gigabit Easy Smart switch designed for small-to-medium business networks. It provides 16 PoE+ (802.3at/af) RJ45 ports supporting up to 30 W per port with a total PoE power budget of 250 W, plus 2 gigabit RJ45/SFP combo uplink ports. Managed via a web-based interface and smart configuration utility, the switch offers VLAN, QoS (802.1p/DSCP), link aggregation (LAG), IGMP snooping, port mirroring and network monitoring. Intelligent power management, PoE Auto Recovery and port priority protect sensitive devices and help prevent power overloads. Rack-mountable (1U) metal enclosure, fan-cooled, with a 3-year manufacturer warranty. |
| Form Factor | Desktop Rack-mountable (1U) |
| Input Power | 100–240 VAC, 50/60 Hz |
| Item Weight | 5.3 lb (reported) |
| Jumbo Frames | 10,000 Bytes |
| PoE Features | PoE Auto Recovery Port Priority Intelligent Power Management Overload Protection |
| PoE Standard | 802.3af 802.3at (PoE+) |
| Product Line | JetStream |
| Sub-Category | Switches and Hubs |
| Packet Buffer | 4.1 Mb |
| Product Title | TP-Link JetStream TL-SG1218MPE 18-Port Gigabit Easy Smart PoE+ Switch (16 PoE+, 250W, 2 SFP) |
| Package Weight | 6.67 lb (reported) |
| Forwarding Rate | 26.78 Mpps |
| Layer Supported | Layer 2 |
| Max PoE Per Port | Up to 30 W |
| PoE Power Budget | 250 W |
| Storage Humidity | 5 to 90% (reported) |
| Country of Origin | China |
| MAC Address Table | 8K |
| Other Identifiers | ASIN: B0876YM2D4 Manufacturer Part Number: TL-SG1218MPE |
| Power Supply Type | Internal |
| Non-PoE RJ45 Ports | 2 (shared with combo uplinks as applicable) |
| Operating Humidity | 10 to 90% (non-condensing) (reported) |
| Switching Capacity | 36 Gbps |
| Included Components | Power cord Installation guide Resource CD / documentation Rack-mount kit Rubber feet |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Uplink / Combo Ports | 2 x Gigabit RJ45/SFP combo |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Dimensions (W x D x H) | 17.32 x 7.09 x 1.73 in (440 x 180 x 44 mm) |
| Number of Ports (Total) | 18 |
| Maximum Power Draw (Max) | 296.3 W (reported value) |
| Hardware / Firmware Notes | Firmware / Manual Resources: Manufacturer-provided firmware, utilities and manuals available Hardware Revisions Reported: [ "V3.20", "V5.60" ] |
| Supported Protocols / Features | VLAN QoS (802.1p/DSCP) Link Aggregation (LAG) IGMP Snooping Port Mirroring Auto-MDIX DHCP Snooping Storm Control |
| Power Consumption (Idle/Typical reported) | 21.4 W (reported) |
TP-Link 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 3-Year WTY
