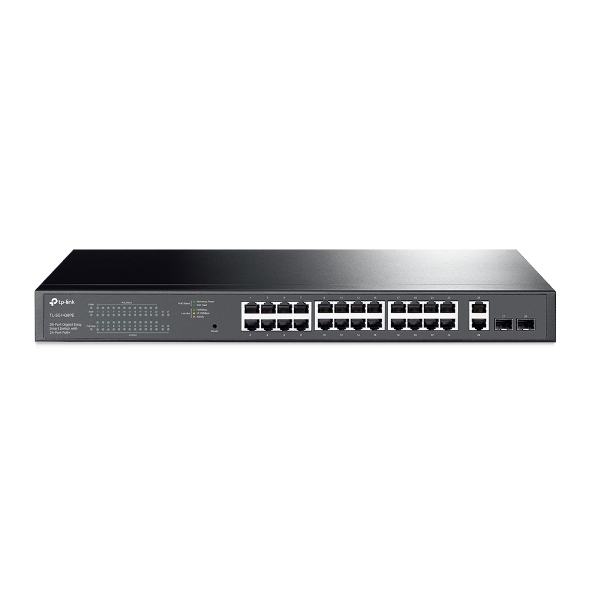

TP-Link 28-Port Gigabit Easy Smart Switch With 24-Port PoE+, 3- Year Wty TL-SG1428PE
SKU
408034
Brand
MPN
TL-SG1428PE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$417.00
Buy Now And Earn 417 Reward Points!
TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
| QoS | Port-based 802.1p/DSCP, 4 priority queues, DSCP support |
|---|---|
| UPC | 845973040482 |
| Fans | 2 fans |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1428PE |
| Weight | 3.1 kg (6.82 lb) |
| Warranty | 3-Year Limited Warranty |
| PoE Ports | 24 x 10/100/1000 Mbps RJ45 (PoE+) |
| SFP Slots | 2 x Gigabit SFP |
| Dimensions | 17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm) |
| Management | Easy Smart (Web-based GUI), Easy Smart Configuration Utility |
| PoE Budget | 250 W (total) |
| Description | The TP-Link TL-SG1428PE is an Easy Smart (JetStream) 28-port gigabit switch with 24x 802.3af/at PoE+ RJ45 ports and a total PoE budget of 250 W (up to 30 W per port). Designed for small-to-medium business deployments such as surveillance, Wi‑Fi access points and VoIP, it provides 2 additional gigabit RJ45 uplinks plus 2 SFP fiber uplinks, Layer 2 features (VLAN, LAG, IGMP snooping), QoS and PoE Auto Recovery with intelligent power management. Rack-mountable 1U metal chassis, 56 Gbps switching capacity and web-based Easy Smart management make it suitable for compact, managed network environments. |
| Form Factor | 1U Rack-mountable / Desktop-capable |
| Jumbo Frame | 9 KB |
| L2 Features | VLAN (802.1Q), IGMP Snooping v1/v2/v3, Static Link Aggregation (LAG), Port Mirroring, Loop Prevention, Cable Diagnostics, Storm Control, Port-based 802.1p/DSCP prioritization, Rate Limit |
| Total Ports | 28 (24 PoE+ RJ45 + 2 non-PoE RJ45 + 2 SFP) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Product Line | JetStream / Easy Smart |
| Product Type | Managed / Smart Ethernet Switch (PoE+) |
| Packet Buffer | 4.1 Mbit |
| Product Title | TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart (JetStream) Switch — 24-Port PoE+ (250W) |
| Certifications | CE, FCC, RoHS |
| Forwarding Rate | 41.7 Mpps |
| Layer Supported | Layer 2 |
| Max PoE per Port | Up to 30 W (per port, dependent on total budget and client limits) |
| Package Contents | TL-SG1428PE switch; Power cord; Installation guide; Rackmount kit; Rubber feet |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | Vietnam |
| MAC Address Table | 8K entries |
| Power Consumption | 27 W (no PD connected); 304.7 W (with 250 W PD connected) |
| Data Rate per Port | 1 Gbps |
| Enclosure Material | Metal |
| Non-PoE RJ45 Ports | 2 x 10/100/1000 Mbps RJ45 |
| Operating Humidity | 10% to 90% non-condensing |
| Switching Capacity | 56 Gbps |
| Additional Features | IGMP Snooping for IPTV optimization, VLAN, LAG, PoE Auto Recovery for self-healing PoE devices, Priority Mode for video/voice quality |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Included Accessories | Power cord, Installation guide, Rackmount kit, Rubber feet |
| Power Supply / Input | Internal power supply, AC 100–240 V, 50/60 Hz |
| Special PoE Features | PoE Auto Recovery, Priority Mode, Intelligent Power Management |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Network Media Supported | Twisted pair (10/100/1000Base-T), Optical fiber (1000Base-X) |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1p, 802.3af, 802.3at |
| Performance / Capacity Notes | Store-and-forward transmission, cable diagnostics, packet buffer 4.1 Mbit |
| Compatible Devices / Applications | IP cameras, Access points (Omada EAP compatible), IP phones, PCs, printers, IPTV |
