TP-Link JetStreamâ„¢ 10-Port Gigabit Smart Switch With 8-Port PoE+, 5-Year Wty SG2210MP
SKU
393647
Brand
MPN
SG2210MP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$305.00
Buy Now And Earn 305 Reward Points!

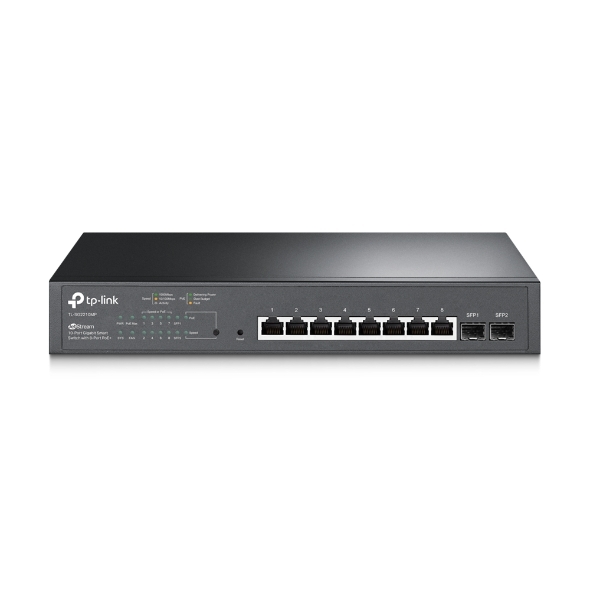

TP-Link JetStreamâ„¢ 10-Port Gigabit Smart Switch with 8-Port PoE+
| SKU | SG2210MP |
|---|---|
| UPC | 845973088675 |
| Brand | TP-Link |
| Model | TL-SG2210MP |
| Power | Power Input: 100-240V AC, 50/60Hz Max Power Consumption (no PD): 12.2 W (110V/60Hz, no PD connected) Max Power Consumption (with 150W PD): 173.9 W (110V/60Hz with 150 W PD connected) |
| Managed | Yes (Smart/Managed) |
| Category | Networking |
| Physical | Color: Black Weight: 1.47 kg Form Factor: Desktop / 1U Rackmount Chassis Material: Metal Dimensions (W x D x H): 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Warranty | 5 Year (reported by TP-Link product listings) |
| Description | The TP-Link TL-SG2210MP (SG2210MP) JetStream is a 10-port Gigabit smart switch with 8 full IEEE 802.3at/af PoE+ RJ45 ports and 2 Gigabit SFP slots. It provides a 150 W total PoE budget (up to 30 W per PoE port), advanced L2/L2+ features and static routing for improved internal traffic efficiency, and robust security (ACL, IP-MAC-Port binding, 802.1X, DHCP snooping, DoS defense, storm control). The switch integrates with Omada SDN for centralized cloud management (Omada app, Omada Cloud-Based/Hardware/Software Controllers) while also supporting standalone management via Web GUI, CLI, SNMP and RMON. Additional features include L2/L3/L4 QoS, IGMP snooping, link aggregation (including 802.3ad LACP), VLANs, device discovery, batch configuration and monitoring tools. Rackmount/desktop form factor, durable metal chassis, and comprehensive package contents make it suitable for small-to-medium business deployments. |
| Performance | Jumbo Frame: 9 KB MAC Address Table: 8K entries Switching Capacity: 20 Gbps Packet Buffer Memory: 4.1 Mbit Packet Forwarding Rate: 14.9 Mpps |
| Port Speeds | 10/100/1000 Mbps (RJ45), 100/1000 Mbps (SFP) |
| Ports - SFP | 2 |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Product Line | JetStream / Omada |
| Sub-Category | Switches and Hubs |
| Ports - Total | 10 |
| Product Title | TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch (8x PoE+ / 2x SFP, 150W PoE) |
| Layer Supported | Layer 2 (L2) with L2+ features; L4 capabilities (QoS) |
| Additional Notes | Omada SDN features (cloud access, centralized management, Zero-Touch Provisioning) require compatible Omada controller (Cloud/Hardware/Software) as specified by TP-Link. PoE budget calculations are based on laboratory testing; actual available PoE will vary with client/device limitations and environmental factors. |
| Max PoE per Port | Up to 30 W (per port) |
| Package Contents | TL-SG2210MP / SG2210MP switch Power cord Installation guide Rackmount kit Rubber feet (Resource CD included in some packages) |
| Country of Origin | China |
| Ports - RJ45 PoE+ | 8 |
| Security Features | IP-MAC-Port Binding ACL (IPv4/IPv6, MAC, Time-based ACL) 802.1X (Port- and MAC-based authentication) DHCP/ARP Inspection DoS Defend Port Security (static/dynamic/permanent) Storm Control HTTPS/SSL, SSH for secure management |
| Thermal & Cooling | Fan Quantity: 1 Operating Humidity: 10–90% RH non-condensing Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–50 °C (32–122 °F) |
| PoE Budget (Total) | 150 W |
| Management & Control | Omada SDN integration (Omada Cloud-Based Controller / OC300 / OC200 / Omada Software Controller) Omada mobile app Web-based GUI Command Line Interface (CLI) SNMPv1/v2c/v3 RMON (1,2,3,9) Zero-Touch Provisioning (requires Omada Cloud-Based Controller; availability per firmware/hardware version) |
| Key Networking Features | 802.1Q VLAN (up to 4K VLANs) Static Routing L2/L3/L4 QoS (802.1p / DSCP, 8 priority queues) IGMP Snooping (v1/v2/v3), MLD Snooping Link Aggregation (Static & 802.3ad LACP) Spanning Tree (802.1D/802.1w/802.1s) DHCP Snooping IP-MAC-Port Binding Access Control Lists (up to 230 entries) Port Mirroring |
| Manufacturer Part Number | TL-SG2210MP |
| Certifications & Compliance | CE FCC RoHS |
TP-Link JetStreamâ„¢ 10-Port Gigabit Smart Switch with 8-Port PoE+, 5-Year WTY
