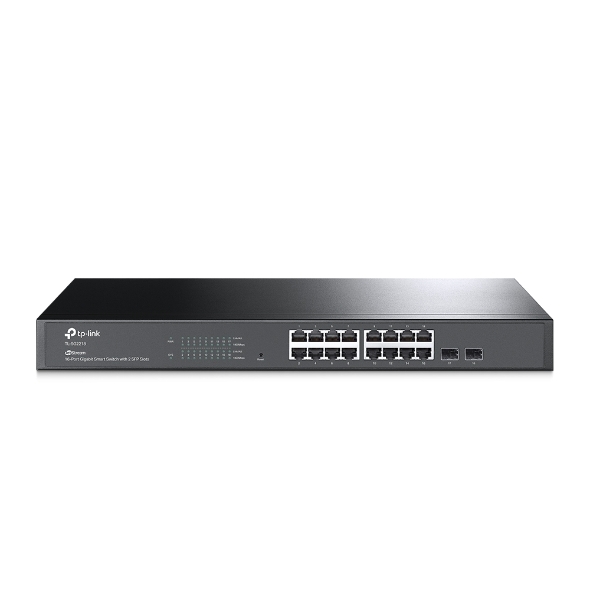

TP-Link JetStream™ 16-Port Gigabit 1U Smart Switch, 16× Gigabit RJ45 Ports, 2× Gigabit Sfp Slots SG2218
SKU
395387
Brand
MPN
SG2218
Warranty
Standard Manufacturer's Warranty
$286.00
Buy Now And Earn 286 Reward Points!
TP-Link JetStreamâ„¢ 16-Port Gigabit Smart Switch with 2 Gigabit SFP Slots
| Fan | Fanless |
|---|---|
| SKU | SG2218 |
| UPC | 840030702471 |
| MIBs | MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RADIUS Accounting/Auth MIBs (RFC2618/2620) Remote Ping/Traceroute MIB (RFC2925) RMON MIB (RFC1757) |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG2218 |
| Notes | Designed for Omada SDN environments but supports standalone management modes; does not provide PoE. |
| Ports | 16 × RJ45 (10/100/1000 Mbps) |
| Series | JetStream |
| Weight | ≈1.88 kg (4.14 lb) |
| Managed | Smart Managed |
| Category | Networking |
| Warranty | 5-Year Manufacturer Warranty |
| Port Type | RJ45, SFP |
| SFP Slots | 2 × Gigabit SFP (mini-GBIC) |
| Description | The TP-Link TL-SG2218 (SG2218) JetStream is an 18‑port full Gigabit smart managed switch offering 16× 10/100/1000 RJ45 ports plus 2× Gigabit SFP (mini-GBIC) slots. Designed for small-to-medium business networks and Omada SDN integration, it supports centralized cloud management via Omada controllers or the Omada app, as well as standalone management via Web GUI, CLI (Telnet/SSH), SNMP and RMON. Layer 2+/Layer 3 features include static routing, VLAN (up to 4K), link aggregation (LACP), L2/L3/L4 QoS, IGMP snooping, and advanced security (IP-MAC-Port binding, ACL, DHCP snooping, 802.1X, port security, DoS protection and storm control). The fanless metal chassis is rack-mountable and includes a power cord, quick installation guide, rackmount kit and rubber feet. |
| Jumbo Frame | 9 KB |
| Power Input | 100–240 V AC, 50/60 Hz |
| Total Ports | 18 (16 RJ45 + 2 SFP) |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Line | Omada / JetStream |
| Sub-Category | Switches and Hubs |
| VLAN Support | 802.1Q VLAN, up to 4K VLAN groups; MAC VLAN; Voice VLAN; Protocol VLAN; GVRP |
| Case Material | Metal |
| IGMP Snooping | Yes |
| Product Title | TP-Link TL-SG2218 (SG2218) JetStream 16-Port Gigabit Smart Managed Switch with 2 SFP Slots |
| Certifications | CE FCC RoHS |
| Speed per Port | 10/100/1000 Mbps (gigabit) |
| Static Routing | Static IPv4/IPv6 routing (32 static routes) |
| Layer Supported | Layer 2 / Layer 3 (L2+) |
| Storage Humidity | 5–90% RH, non-condensing |
| Item Model Number | TL-SG2218 |
| MAC Address Table | 8K entries |
| Security Features | IP-MAC-Port Binding Access Control Lists (up to 230 entries) Port Security (up to 64 MACs per port) DHCP Snooping / DHCPv6 Snooping ARP Inspection ND Detection IP Source Guard IPv6 Source Guard 802.1X (Radius authentication, MAB, guest VLAN) DoS Defend Storm Control Port Isolation |
| Operating Humidity | 10–90% RH, non-condensing |
| Switching Capacity | 36 Gbps |
| Ethernet Technology | 10/100/1000Base-T, 1000Base-X |
| Expansion Slot Type | SFP (mini-GBIC) |
| Management Features | Omada Cloud-Based Controller / Hardware Controller / Software Controller Omada App Web-based GUI (HTTPS) CLI (Telnet, SSH) SNMP v1/v2c/v3, SNMP Trap/Inform RMON (1,2,3,9) Batch configuration / Batch firmware upgrade Zero-Touch Provisioning (ZTP) Dual Image / Dual Configuration Cable Diagnostics System Log / CPU Monitoring |
| Modular / Expansion | 2 SFP expansion slots |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Included Accessories | TL-SG2218 / SG2218 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
| Cloud/SDN Integration | Omada SDN integrated (centralized cloud management, Omada app, ZTP) |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Link Aggregation (LAG) | Yes (802.3ad) |
| Packet Forwarding Rate | 26.8 Mpps |
| Quality of Service (QoS) | L2/L3/L4 QoS, 802.1p CoS/DSCP, 8 priority queues, SP/WRR scheduling, bandwidth control |
| Maximum Power Consumption | 12.3 W |
TP-Link JetStream™ 16-Port Gigabit 1U Smart Switch, 16× Gigabit RJ45 Ports, 2× Gigabit SFP Slots
