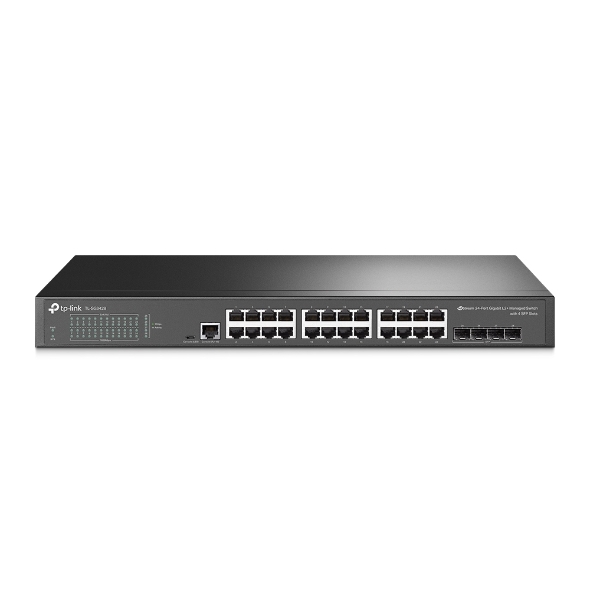

TP-Link JetStream™ 24-Port Gigabit L2+ Managed 1U Switch, 24× Gigabit RJ45 Ports, 4× Gigabit Sfp Slots, RJ45/Micro-USB Console Port, 5-Year Wty SG3428
SKU
395386
Brand
MPN
SG3428
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$460.00
Buy Now And Earn 460 Reward Points!
TP-Link JetStreamâ„¢ 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
| PoE | No |
|---|---|
| QoS | L2/L3/L4 QoS (Strict Priority, Weighted Round Robin (WRR)) |
| SKU | SG3428 |
| UPC | 845973010140 |
| VLAN | 802.1Q VLAN, QinQ supported |
| Brand | TP-Link (Omada) |
| Model | SG3428 |
| Notes | Omada SDN features require SDN firmware and compatible Omada controllers/devices. Zero-Touch Provisioning requires Omada Cloud-Based Controller. Some source listings reference TL-SG3428 as an earlier or alternate model designation; SG3428 is listed as newer/revised model on some sites. |
| Ports | Console: Micro-USB (management/console) SFP Gigabit Slots: 4 RJ45 Gigabit Ports: 24 |
| Hardware | Color: Black Cooling: Fanless / passive cooling (quiet operation reported) Form Factor: 1U rack-mountable metal chassis Input Power: 100–240 VAC, 50/60 Hz Power Supply: Internal Power Consumption: Approximately 19.9 W |
| Datasheet | https://cdn.shopify.com/s/files/1/0252/1897/3741/files/TL-SG3428_Datatsheet.pdf?v=1631055679 |
| Multicast | IGMP Snooping, IGMP throttling & filtering, IGMP authentication |
| Description | The TP-Link Omada SG3428 (TL-SG3428) is a 1U rack-mountable L2+ managed gigabit switch designed for small-to-medium enterprise, campus, and ISP deployments. It provides 24 × Gigabit RJ45 ports plus 4 × Gigabit SFP uplink slots, a 56 Gbps switching capacity and a 41.66 Mpps forwarding rate. Manage locally via Web/CLI/SNMP/RMON or centrally with Omada SDN cloud management and the Omada app (Zero-Touch Provisioning supported). Built-in L2/L2+ and L3 features include static routing, VLANs, ACL, L2–L4 QoS, IGMP snooping and link aggregation. Enterprise security and reliability features include IP-MAC-Port binding, ACL, 802.1X/RADIUS authentication, DHCP snooping, storm control, DoS protection, ERPS, OAM and DDM. The durable metal chassis is rack-mountable (1U) and designed for quiet operation (fanless/passive cooling reported). |
| Port Details | 24 × 10/100/1000 Mbps RJ45; 4 × Gigabit SFP |
| IPv6 Features | Dual IPv4/IPv6 stack IPv6 ACL MLD snooping DHCPv6 snooping IPv6 interface, PMTU discovery, IPv6 neighbor discovery |
| Product Title | TP-Link Omada SG3428 24-Port Gigabit L2+ Managed Switch with 4 SFP (56 Gbps) |
| Certifications | CE FCC RoHS |
| Product Family | JetStream / Omada |
| Switching Type | Managed L2 / L2+ (L2/L3 features including static routing) |
| Forwarding Rate | 41.66 Mpps |
| Layer3 Features | Static routing (basic L3), IPv4/IPv6 dual stack support |
| MFR Part Number | SG3428 |
| Link Aggregation | Link Aggregation Control Protocol (LACP) supported |
| Security Features | IP-MAC-Port(-VID) binding Access Control Lists (L2-L4) Port security 802.1X (RADIUS) authentication DHCP snooping Storm control DoS attack prevention |
| Switching Capacity | 56 Gbps |
| Physical Dimensions | Package Weight: ≈5.9 lb Dimensions (mm): 440 x 180 x 44 Dimensions (inches): 17.3 x 7.1 x 1.7 |
| Supported Protocols | IPv4 IPv6 STP/RSTP/MSTP LACP IGMP Snooping 802.1Q 802.3x Flow Control |
| Included Accessories | Power cord Quick Installation Guide Rack-mount kit Rubber feet |
| Operating Conditions | Storage Humidity: 5–90% RH non-condensing Operating Humidity: 10–90% RH non-condensing Storage Temperature: -40–70°C (-40–158°F) Operating Temperature: 0–45°C (32–113°F) |
| Performance & Capacity | MAC Address Table: 16K Jumbo Frame Support: Up to 9000 bytes |
| Alternate Model Numbers | TL-SG3428 SG3428(UN) TPL-TL-SG3428 |
| ISP / Advanced Features | OAM (802.3ah) Device Link Detection Protocol (DLDP) ERPS (ring protection) sFlow PPPoE ID insertion IGMP authentication |
| Management & Monitoring | Omada SDN cloud management (Omada app, controller compatible) Zero-Touch Provisioning (with Omada Cloud Controller) Web GUI Command Line Interface (Console/Telnet/SSH) SNMP v1/v2c/v3 RMON Dual image firmware |
TP-Link JetStream™ 24-Port Gigabit L2+ Managed 1U Switch, 24× Gigabit RJ45 Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port, 5-Year WTY
