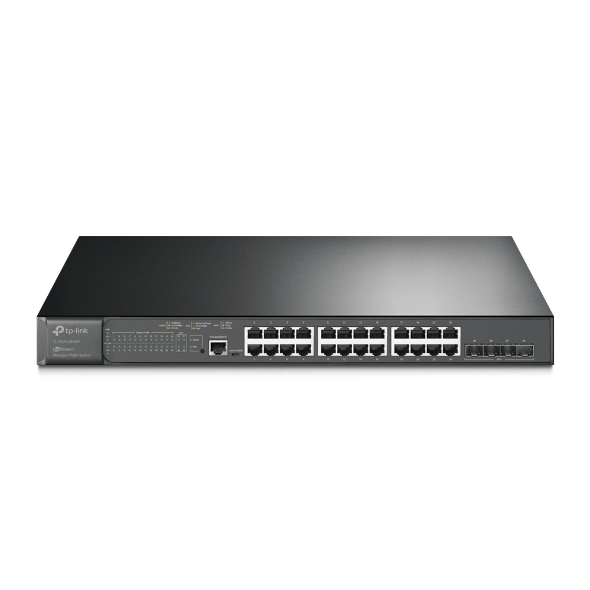

main product photo

TP-Link JetStreamâ„¢ 24-Port Gigabit And 4-Port 10GE Sfp+ L2+ Managed Switch With 24-Port PoE+,RJ45/Micro-USB Console Port, 5-Year Wty-(Tl-Sg3428Xmp) SG3428XMP

SKU
395390
Brand
Tp-link
Manufacturer Link
MPN
SG3428XMP
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$1,131.00
Buy Now And Earn 1131 Reward Points!
Add to Compare
TP-Link JetStreamâ„¢ 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
MPNTL-SG3428XMP
PoEStandard: 802.3at/af (PoE+) Max Per Port: Up to 30 W (per port, dependent on budget and device) Total Budget: 384 W
SKUSG3428XMP
UPC845973088101
BrandTP-Link
ModelTL-SG3428XMP
NotesPoE budget and per-port power are based on laboratory testing; actual performance may vary depending on connected devices and environmental factors. Zero-Touch Provisioning and some Omada cloud features require supported Omada controllers (OC200/OC300, Omada Software Controller, or Omada Cloud-Based Controller).
PortsSFP+: 4 × 10 Gbps SFP+ slots Console: Console port (CLI), supports Telnet/SSH Gigabit RJ45 (PoE+): 24 × 10/100/1000 Mbps (802.3at/af)
PowerVoltage: 48 V (PoE related) Maximum Power / PoE Budget: 384 W
PhysicalColor: Black Weight: 5.13 kg (11.29 lb) Material: Metal Dimensions (L × W × H): 17.32 × 13.27 × 1.73 inches
WarrantyManufacturer-stated warranty (refer to TP-Link for current warranty terms)
ManagementOmada SDN integration (Omada Hardware/Software/Cloud controllers) Zero-Touch Provisioning (with Omada Cloud-Based Controller) Web-based GUI CLI (console, Telnet, SSH) SNMP v1/v2c/v3 RMON Dual image/dual configuration System log, CPU monitoring, cable diagnostics
DescriptionTP-Link JetStream TL-SG3428XMP is a 24-port Gigabit L2+ managed switch with 24× 802.3at/af PoE+ RJ45 ports and 4× 10 Gbps SFP+ uplink slots. Designed for Omada SDN integration or standalone deployment, it offers centralized cloud management, Zero-Touch Provisioning (when used with Omada controllers), advanced security (VLAN, ACL, IP-MAC-Port binding, 802.1X), L2+ features including static routing and IGMP snooping, and comprehensive management via web GUI, CLI (console/telnet/SSH), SNMP and RMON. The switch supports QoS for voice/video prioritization and includes a metal chassis, rackmount kit, power cord, quick installation guide and rubber feet.
EnvironmentStorage Humidity: 5–90% RH (non-condensing) Operating Humidity: 10–90% RH (non-condensing) Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–45 °C (32–113 °F)
IPv6 SupportDual IPv4/IPv6 IPv6 ACL Static IPv6 Routing IPv6 Neighbor Discovery, ICMPv6, TCPv6/UDPv6 IPv6 SNMP/SSH/SSL, DHCPv6 Client
Product LineJetStream
Product TitleTP-Link JetStream TL-SG3428XMP — 24-Port Gigabit PoE+ L2+ Managed Switch with 4×10G SFP+ Uplinks (384W)
CertificationsCE FCC RoHS
L2/L3 Features802.1Q VLAN Static routing (L2+) STP/RSTP/MSTP Link Aggregation (LACP) Port mirroring 802.3x Flow Control
Uplink Bandwidth4 × 10 Gbps SFP+ (40 Gbps aggregate)
QoS and MulticastL2/L3/L4 QoS IGMP snooping, IGMP throttling & filtering Traffic prioritization by IP/MAC/TCP/UDP
Security FeaturesIP-MAC-Port-VID binding Access Control Lists (L2–L4 ACL) Port security DoS protection Storm control DHCP snooping 802.1X (RADIUS) authentication
What's in the boxTL-SG3428XMP Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
Documentation LinksManufacturer product sheet / manuals (referenced by sellers)
Included ComponentsTL-SG3428XMP switch Power cord Quick installation guide Rackmount kit Rubber feet
TP-Link JetStreamâ„¢ 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+,RJ45/Micro-USB Console Port, 5-Year WTY-(TL-SG3428XMP)
