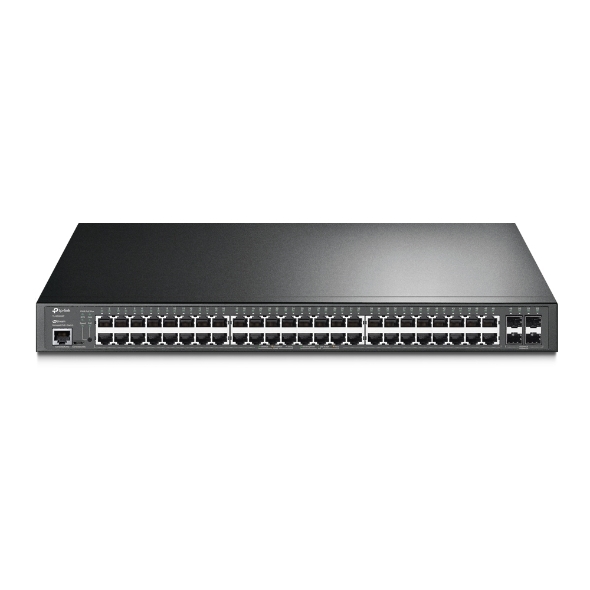

TP-Link JetStreamâ„¢ 48-Port Gigabit L2+ Managed Switch With 4 10GE Sfp+ Slots, 5-Year Wty SG3452X
SKU
397513
Brand
MPN
SG3452X
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,218.00
Buy Now And Earn 1218 Reward Points!
"TP-Link JetStreamâ„¢ 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
PORT: 48× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
PORT: 48× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
| MPN | TL-SG3452X |
|---|---|
| PoE | No |
| SKU | SG3452X |
| MIBs | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) and RMON2 (RFC2021) Radius Accounting/Authentication Client MIBs Remote Ping/Traceroute MIB (RFC2925) TP-Link private MIB |
| VLAN | QinQ: Port-based and selective QinQ supported 802.1Q: Yes MAC VLAN: 30 entries Max VLANs: 4096 Voice VLAN: Supported |
| Brand | TP-Link |
| Model | TL-SG3452X |
| Notes | Zero-Touch Provisioning (ZTP) requires Omada Cloud-Based Controller or compatible Omada controller. Some sources list slightly different switching capacity/forwarding values; majority values are used above. |
| Ports | Console: 1 x RJ45 console, 1 x Micro-USB console SFP+ (10 Gbps): 4 RJ45 (10/100/1000 Mbps): 48 |
| Power | AC Input: 100-240 V AC, 50/60 Hz Power Supply: Internal AC Heat Dissipation_Max: 111.65 BTU/h Power Consumption_Max: 32.72 W |
| Uplink | 4 x 10 Gbps SFP+ |
| Weight | 7.32 lbs (manufacturer-listed in one source) |
| Routing | Static Routing: Yes Max Static Routes: 48 IPv4/IPv6 Interfaces: 16 |
| UPC/EAN | 0840030702501 |
| Physical | Fan: Fanless Color: Black Depth: 8.7 in (220 mm) Width: 17.3 in (440 mm) Height: 1.7 in (44 mm) Rackmount: Yes (1U); rackmount kit included Dimensions_mm: 440 x 220 x 44 mm Dimensions_inch: 17.3 x 8.7 x 1.7 in |
| Security | ACL: L2-L4 ACLs (time-based, MAC, IP, combined, IPv6 ACL) 802.1X: Port and MAC based authentication (with RADIUS/TACACS+ support) DoS Defend: Yes DHCP Snooping: Yes Port Security: Static/Dynamic, up to 64 MAC addresses/port Storm Control: Broadcast/Multicast/Unicast ARP Inspection: Yes IPv4 Source Guard: 100 entries IPv6 Source Guard: 100 entries IP-MAC-Port Binding: Yes (512 entries) IPv6-MAC-Port Binding: Yes (512 entries) |
| Warranty | Varies by vendor/region (warranty information shown across sources includes Limited Lifetime Warranty, 5 Year, and 36 months) |
| Multicast | MLD Snooping: v1/v2 IGMP Snooping: v1/v2/v3 IGMP/MLD Features: [ "Querier", "Fast Leave", "IGMP Authentication", "MVR", "Multicast Filtering (256 profiles)" ] |
| Description | The TP-Link TL-SG3452X (JetStream) is a 1U rack-mountable L2+ managed Ethernet switch offering 48 x 10/100/1000 Mbps RJ45 ports and 4 x 10 Gbps SFP+ uplink slots for high-bandwidth, low-latency connectivity. Designed for Omada SDN integration, it supports centralized cloud management, Zero-Touch Provisioning (ZTP), advanced L2/L3 features (including static routing), extensive security (IP-MAC-Port binding, ACLs, DHCP snooping, 802.1X), and flexible management via web GUI, CLI (console, Telnet, SSH), SNMP and RMON. Compact, energy-efficient design with fanless operation and typical max power consumption of 32.72 W. |
| Environment | Storage Humidity: 5% to 90% RH non-condensing Operating Humidity: 10% to 90% RH non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 45°C (32°F to 113°F) |
| Form Factor | 1U Rack-mountable (desktop-capable) |
| Jumbo Frame | 9 KB |
| IPv6 Support | Dual IPv4/IPv6 stack MLD Snooping IPv6 ACL Static IPv6 routing IPv6 Neighbor Discovery, PMTU, ICMPv6 IPv6 DNS/SSH/SSL/TFTP support |
| Product Line | JetStream |
| Product Type | Managed Ethernet Switch |
| Packet Buffer | 12 Mbit |
| Product Title | TP-Link TL-SG3452X JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots |
| Certifications | CE FCC RoHS |
| Product Family | Omada |
| Layer/Management | L2+ managed (supports L3 features such as static routing) |
| Link Aggregation | Static and 802.3ad LACP; up to 8 aggregation groups (8 ports per group) |
| Country of Origin | China |
| MAC Address Table | 16000 |
| Quality of Service | Queues: 8 Features: [ "802.1p CoS/DSCP priority", "SP, WRR, SP+WRR scheduling", "Bandwidth control (port/flow)", "QoS remarking" ] |
| Ethernet Technology | Gigabit Ethernet (10/100/1000Base-T) 10 Gigabit Ethernet (10GBase-X) |
| Forwarding Rate_Mpps | 130.9 |
| Included Accessories | Power cord Quick installation guide Rackmount kit Rubber feet |
| Performance Features | Mirroring: Port and CPU mirroring (one-to-one, many-to-one, Tx/Rx/Both) Flow Control: 802.3x Flow Control, HOL blocking prevention Loopback Detection: Port-based and VLAN-based |
| Management & Software | Other: Dual image/dual configuration, batch configuration/firmware upgrade, cable diagnostics, EEE, system logging Protocols: SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, DHCP/BOOTP client Cloud Management: Omada Cloud-Based Controller / OC300 / OC200 / Omada Software Controller (ZTP supported with controller) Local Management: Web-based GUI, CLI (console/Telnet/SSH) |
| Switching Capacity_Gbps | 176 |
TP-Link JetStreamâ„¢ 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots, 5-Year WTY
