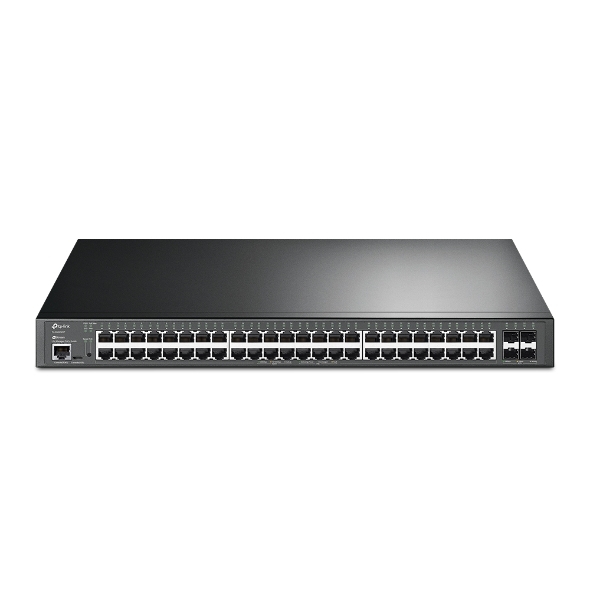

TP-Link JetStreamâ„¢ 48-Port Gigabit And 4-Port 10GE Sfp+ L2+ Managed Switch With 48-Port PoE+, RJ45/Micro-USB Console Port, 5-Year Wty SG3452XP
SKU
394275
Brand
MPN
SG3452XP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,808.00
Buy Now And Earn 1808 Reward Points!
"TP-Link JetStreamâ„¢ 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
| MPN | TL‑SG3452XP |
|---|---|
| PoE | Notes: PoE budget calculations are based on laboratory testing; actual budget may vary with client and environment. Standard: 802.3af/at (PoE+) Per_Port_Max: Up to 30 W per port Total_PoE_Budget: 500 W |
| SKU | SG3452XP |
| UPC | 840030702518 |
| MIBs | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q‑Bridge MIB (RFC2674) RMON MIB (RFC2819), RMON2 (RFC2021) |
| Brand | TP‑Link |
| Model | TL‑SG3452XP |
| Ports | RJ45_Ports: 48 × 10/100/1000 Mbps (PoE+) SFP+_Slots: 4 × 10 Gbps SFP+ Console_Ports: 1 × RJ45 console, 1 × Micro‑USB console |
| Power | Input: 100–240 V AC, 50/60 Hz Max_Heat_Dissipation: 167.85 BTU/hr (no PD); 2169.2 BTU/hr (with 500 W PD) Max_Power_Consumption: Approximately 635.7 W (with 500 W PD devices connected) Idle_Power_Consumption: 49.19 W (no PD connected) |
| Uplink | 4 × 10 Gbps SFP+ |
| Hardware | Fans: 3 Chassis: Durable metal casing, rack‑mountable Mounting: Rack mount kit included Physical_Security: Security lock |
| Warranty | 5 Year (as listed by vendor sources) |
| Management | Features: Zero‑Touch Provisioning (requires Omada Cloud‑Based Controller), batch configuration/firmware upgrade, cable diagnostics, dual image/configuration Protocols: SNMP v1/v2c/v3, RMON, LLDP/LLDP‑MED, DHCP, DHCP Relay Omada_Integration: Omada Cloud‑Based Controller, Omada Hardware Controller, Omada Software Controller; Omada app Standalone_Management: Web GUI, CLI (console/Telnet/SSH) |
| Port_Count | 48 |
| Description | The TP‑Link TL‑SG3452XP (SG3452XP) is an L2+ managed, rack‑mountable Gigabit switch featuring 48× 10/100/1000 Mbps RJ45 PoE+ ports and 4× 10 Gbps SFP+ uplink slots. It delivers a 500 W total PoE budget (up to 30 W per port), enterprise L2/L2+ capabilities including static routing, VLAN, ACL, QoS and IGMP snooping, and advanced security (IP‑MAC‑Port binding, 802.1X, DHCP snooping, DoS protection). Management options include Omada SDN cloud and controller integration, Omada app, standalone web GUI, CLI (console/Telnet/SSH), SNMP and RMON. Durable metal chassis, rack mount kit and included accessories make it suitable for campus and SMB deployments. |
| Product Line | JetStream |
| Environmental | Storage_Humidity: 5–90% RH non‑condensing Operating_Humidity: 10–90% RH non‑condensing Storage_Temperature: -40–70 °C (-40–158 °F) Operating_Temperature: 0–40 °C (32–104 °F) |
| Product Title | TP‑Link TL‑SG3452XP JetStream 48‑Port Gigabit PoE+ L2+ Managed Switch with 4× 10G SFP+ (500W PoE) |
| Certifications | CE FCC RoHS |
| L2_L2+_Features | Static Routing (48 IPv4/IPv6 static routes) 128 IP interfaces (IPv4/IPv6) Link Aggregation Spanning Tree Protocol 802.3x Flow Control Mirroring |
| Package_Content | TL‑SG3452XP switch Power cord Quick installation guide Rackmount kit Rubber feet |
| Additional_Notes | Recommended to use only one SM5310‑T (TL‑SM5310‑T) module with the SG3452XP. PoE budget figures are test‑based and not guaranteed in all environments. |
| Advanced_Features | ERPS (Ethernet Ring Protection Switching) L2PT, DLDP, PPPoE ID Insertion Ethernet OAM (802.3ah), DDM, sFlow Automatic device discovery and unified configuration |
| Security_Features | IP‑MAC‑Port binding (512 entries) DHCP Snooping, DHCP/ND Inspection IPv4/IPv6 Source Guard ACL (MAC/IP/IPv6 ACLs, time‑based ACL) 802.1X (port/MAC‑based, MAB), RADIUS/TACACS+ support Port security (up to 64 MACs/port), storm control, DoS defense, port isolation |
| VLAN_QoS_Multicast | QoS: 8 priority queues, 802.1p/DSCP, SP/WRR/SP+WRR scheduling, bandwidth control VLAN: Up to 4K VLANs, 802.1Q, Private VLAN, GVRP, Voice VLAN, VLAN mapping/replace Multicast: IGMP Snooping, MLD Snooping, MVR, supports up to 1000 IGMP groups |
| Compatibility_Notes | Certain Omada SDN features require Omada Hardware/Software/Cloud controllers. Zero‑Touch Provisioning requires Omada Cloud‑Based Controller. |
| Physical_Dimensions | Depth: 13.0 in (330 mm) Width: 17.3 in (440 mm) Height: 1.7 in (44 mm) Weight: 5.5 kg (12.1 lb) |
| Switching_Performance | Jumbo_Frame: 9 KB Packet_Buffer: 12 Mbit MAC_Address_Table: 16 K entries Switching_Capacity: 176 Gbps Packet_Forwarding_Rate: 130.9 Mpps |
TP-Link JetStreamâ„¢ 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+, RJ45/Micro-USB Console Port, 5-Year WTY
