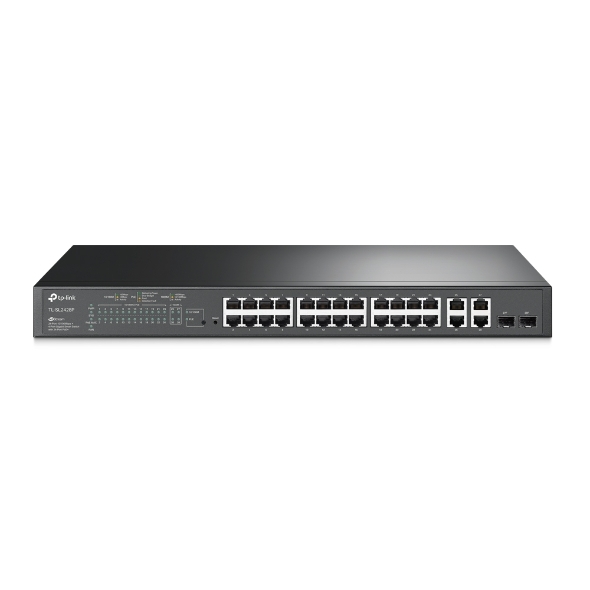

TP-Link JetStreamâ„¢ 24-Port 10/100 Mbps + 4-Port Gigabit Smart Switch With 24-Port PoE+, 5-Year Wty SL2428P

Name: TP-Link JetStreamâ„¢ 24-Port 10/100 Mbps + 4-Port Gigabit Smart Switch With 24-Port PoE+, 5-Year Wty SL2428P
Brand: Tp-link
SKU: 408723
Price: 434 AUD
Availability: PreOrder

SKU

408723

Brand

Tp-link

Manufacturer Link

MPN

SL2428P

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

Preorder (Contact Us)

Freight Estimate

$434.00

Buy Now And Earn 434 Reward Points!

TP-Link JetStreamâ„¢ 24-Port 10/100 Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

PoE	Standard: IEEE 802.3af / IEEE 802.3at (PoE+) PoE Management: Yes (per-port power management features) Max PoE Per Port (W): 30 Total PoE Budget (W): 250
SKU	SL2428P
Brand	TP-Link (Omada)
Model	TL-SL2428P
Notes	PoE budget is based on laboratory testing; actual available PoE may vary depending on client/device limitations and environmental factors.
Ports	PoE Ports: 24 × 10/100 Mbps RJ45 (802.3af/at PoE+) Combo SFP Slots: 2 × Gigabit RJ45/SFP combo uplink slots Total Ports (logical): 28 Gigabit RJ45 Uplink Ports: 4 × 10/100/1000 Mbps RJ45
Hardware	Fans: 2 Color: Black Chassis: 1U metal housing (rack-mountable) Case Material: Metal Physical Security Lock: Yes
Multicast	MLD Snooping: v1/v2, querier, fast leave IGMP Snooping: v1/v2/v3, querier, fast leave, authentication MVR / Multicast Filtering: Supported
Description	The TP-Link Omada TL-SL2428P is a 1U rack-mountable smart managed switch designed for SMB deployments that require extensive PoE support and centralized management. It provides 24× 10/100 Mbps 802.3af/at PoE+ ports (up to 30 W per port) with a total PoE power budget of 250 W, plus 4× gigabit RJ45 uplink ports and 2× combo Gigabit RJ45/SFP uplink slots. Built for enterprise-class access-edge networks, the switch delivers L2/L2+ and select L3 features (static routing, DHCP server/relay, IPv4/IPv6 support), advanced QoS (L2–L4), VLAN/ACL security, IGMP/MLD snooping, extensive management options (Web GUI, CLI, SNMPv1/v2c/v3, RMON, Omada SDN integration and Zero-Touch provisioning), and robust physical design with metal housing, dual fans, and rackmount kit.
Performance	Jumbo Frame: 9216 bytes MAC Address Table: 8K entries Switching Capacity: 12.8 Gbps Packet Forwarding Rate: 9.5 Mpps
Manufacturer	TP-Link
Product Title	TP-Link Omada TL-SL2428P 28-Port Smart Managed PoE+ Switch (24x 10/100 PoE+, 4x Gigabit, 2x Combo SFP, 250W)
Certifications	CE FCC RoHS
Product Family	Omada
Package Contents	TL-SL2428P (SL2428P) Power Cord Installation Guide Rackmount Kit Rubber Feet
Quality of Service	Queues: 8 priority queues QoS Levels: L2–L4 802.1p / DSCP: Supported Scheduling Modes: SP (Strict Priority), WRR (Weighted Round Robin) Bandwidth Control: Port/flow-based rate limiting
Included Accessories	Rackmount kit Rubber feet Power cord Installation guide
Power & Environmental	Voltage: AC (region dependent; product listings show 110–240 V variants) PoE Budget (W): 250 Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Max Heat Dissipation: 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected); 64.1 BTU/h (no PD); other region figures reported ~1001.2 BTU/hr Max Power Consumption: 286.7 W (220 V / 50 Hz with 250 W PD connected); 18.8 W (220 V / 50 Hz with no PD connected); other region figures reported up to 293.6 W (110 V) Operating Temperature: 0°C to 50°C (32°F to 122°F)
Layer Support & Routing	VLAN: 802.1Q VLANs, up to 4K VLAN groups, QinQ (selective/port-based), Voice VLAN, MAC VLAN Layer: L2 / L2+ (select L3 features) L3 Features: Static routing, 48 static routes, DHCP server/relay, Static ARP, Proxy ARP, IPv4/IPv6 interfaces (16)
Standards and Protocols	IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3ad IEEE 802.3x IEEE 802.3az IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1q IEEE 802.1x IEEE 802.1p IEEE 802.3af IEEE 802.3at
Management & Integration	Omada SDN: Integrated (Omada hardware/software/cloud controllers), Cloud access via Omada app, Zero-Touch provisioning Other Features: Dual image/configuration, Batch configuration/firmware upgrade, Cable diagnostics, LLDP/LLDP-MED Management Interfaces: Web-based GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON
Security & Access Control	ACL: MAC/IP/Time-based ACLs, up to listed entry counts 802.1X: Port- and MAC-based authentication, MAB, RADIUS support Port Security: Static/dynamic (up to 64 MACs per port) IP-MAC-Port Binding: DHCP snooping, ARP inspection, IPv4/IPv6 source guard, ND detection Management Security: HTTPS (SSL/TLS), SSH DoS Defend / Storm Control: Supported
MIBs & Management Protocols	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting/Authentication Client MIBs (RFC2620/RFC2618) Remote Ping/Traceroute MIB (RFC2925) TP-Link private MIBs
Physical Dimensions & Weight	Weight: 6.62 lbs Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Compatibility / Integration Notes	Omada SDN integration requires Omada Hardware Controller (OC200/OC300), Omada Cloud-Based Controller, or Omada Software Controller for full SDN/cloud features. SDN firmware compatibility required for SDN mode.
