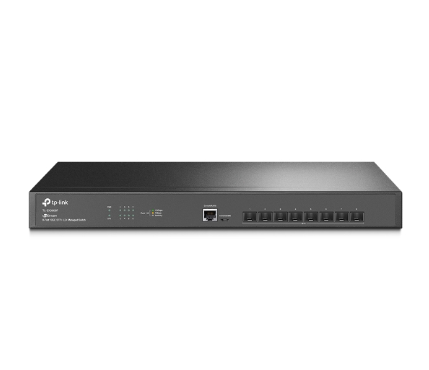

Omada SX3008F Omada 8-Port 10GE Sfp+ L2+ Managed Switch SX3008F
SKU
410831
Brand
MPN
SX3008F
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$566.00
Buy Now And Earn 566 Reward Points!
Omada SX3008F Omada 8-Port 10GE SFP+ L2+ Managed Switch
PORT: 8× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
PORT: 8× 10G SFP+ Slots, RJ45/Micro-USB Console Port
SPEC: 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
| SKU | SX3008F |
|---|---|
| VLAN | GVRP: Supported QinQ: Port-based QinQ, Selective QinQ MAC VLAN: 30 entries Voice VLAN: Supported 802.1Q VLAN: Up to 4K VLANs Private VLAN: Supported Protocol VLAN: Protocol template 16, Protocol VLAN 12 |
| Brand | TP-Link |
| Model | TL-SX3008F |
| Ports | 8 × 10 Gbps SFP+ ports |
| Power | Input Voltage: 100–240 V AC, 50/60 Hz Max Heat Dissipation: 52.75 BTU/hr (220 V / 50 Hz) Max Power Consumption: 15.46 W (220 V / 50 Hz) |
| Series | Omada / JetStream |
| Weight | 1.65 kg (3.63 lb) |
| Hardware | Chassis: Durable metal casing, rack-mountable Fan Quantity: Fanless Physical Security Lock: Yes |
| Material | Metal chassis |
| Mounting | Rack-mountable (rackmount kit included) |
| Security | ACL: L2–L4 IP/MAC/Port based ACLs, time-based ACLs 802.1X: Port-based, MAC-based, MAB, VLAN assignment, RADIUS DoS Defend: Supported AAA/TACACS+: Supported DHCP Snooping: Supported Port Security: Static/dynamic up to 64 MAC addresses per port Storm Control: Broadcast/multicast/unicast storm control (kbps/ratio) ARP Inspection: Supported Port Isolation: Supported Secure Management: HTTPS (SSL/TLS), SSH IP-MAC-Port Binding: 512 entries (IPv4 and IPv6) IPv4/IPv6 Source Guard: Supported |
| Warranty | 5 Year Manufacturer Warranty (reported) |
| Multicast | IGMP: IGMP snooping, IGMP authentication IGMP Groups: Supports up to 1000 (IPv4/IPv6) groups MLD snooping: Supported Multicast Filtering: 256 profiles, 16 entries/profile Multicast VLAN Registration (MVR): Supported |
| Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Omada app Web-based GUI Command Line Interface (console/Telnet/SSH) SNMP v1/v2c/v3 RMON Zero-Touch Provisioning (with Omada Cloud-Based Controller) Dual image / Dual configuration Batch configuration and firmware upgrade |
| Port Types | SFP+ (10Gbps) RJ45 console port (1) Micro-USB console port (1) |
| Description | The TP-Link Omada TL-SX3008F (SKU: SX3008F) is an 8‑port 10GbE SFP+ L2+ managed switch designed for high-bandwidth aggregation and enterprise deployments. It delivers non‑blocking 160 Gbps switching capacity (119.04 Mpps), extensive L2/L2+ and IPv6 features (VLAN, ACL, QoS, IGMP snooping, static routing), and centralized management through Omada SDN (cloud, hardware or software controller) or standalone management via Web GUI, CLI, SNMP and RMON. The fanless metal chassis supports rack mounting for quiet operation in edge and aggregation layers; advanced security and ISP features include IP‑MAC‑Port binding, DHCP/ND snooping, DoS defense, ERPS, QinQ, sFlow and 802.3ah OAM. |
| Environment | Storage Humidity: 5–90% RH (non-condensing) Operating Humidity: 10–90% RH (non-condensing) Storage Temperature: -40–70 °C Operating Temperature: 0–45 °C |
| Jumbo Frame | 9 KB |
| Console Ports | 1 × RJ45 console; 1 × Micro-USB console |
| IPv6_Features | Dual IPv4/IPv6 stack MLD snooping IPv6 ACL Static IPv6 routing IPv6 neighbor discovery (ND) and ND protection ICMPv6, TCPv6/UDPv6 DHCPv6 client, DHCPv6 snooping |
| Product Title | TP-Link Omada TL-SX3008F (SX3008F) 8‑Port 10G SFP+ L2+ Managed Switch (Fanless) |
| Certifications | CE FCC RoHS |
| Additional Notes | Certain Omada SDN functions, cloud access and Zero-Touch Provisioning require the use of Omada controllers (hardware, software or cloud). ISP-specific features may only be configurable in standalone mode. |
| Package Contents | TL-SX3008F / SX3008F switch Power cord Quick installation guide Rackmount kit Rubber feet Resource CD (included by some vendors) |
| MAC Address Table | 32 K |
| MIBs_and_Standards | MIB-II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON (RFC2819, RMON2 RFC2021) Remote Ping/Traceroute MIB (RFC2925) Radius client/accounting/authentication MIBs TP-Link private MIB supported |
| Quality of Service | QoS Remark: 802.1p remark, DSCP remark 802.1p/DSCP: Yes Priority Queues: 8 Queue Scheduling: [ "SP (Strict Priority)", "WRR (Weighted Round Robin)", "SP + WRR" ] Bandwidth Control: Port/flow-based rate limiting |
| Switching Capacity | 160 Gbps |
| Compatibility Notes | Requires SFP/SFP+ transceivers or DACs for connections. Some user reports indicate instability or lack of support when using certain 10GBase-T (RJ45) SFP+ transceivers; test compatibility before deployment. |
| Packet Buffer Memory | 16 Mbit |
| Dimensions (W x D x H) | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) |
| L2_and_L2plus_Features | ARP: { "Static ARP": "128 entries", "ARP Entries": "512" } DHCP: [ "DHCP server", "DHCP relay (interface/VLAN)", "DHCP L2 relay" ] Mirroring: Supported Flow Control: 802.3x IP Interfaces: Up to 128 IPv4/IPv6 interfaces Spanning Tree: STP/RSTP/MSTP Static Routing: 48 IPv4/IPv6 static routes Link Aggregation: Supported Loopback Detection: Supported |
| Packet Forwarding Rate | 119.04 Mpps |
| ISP_and_Advanced_Features | sFlow QinQ L2PT (Layer 2 Protocol Tunneling) PPPoE ID insertion ERPS (Ethernet Ring Protection Switching) 802.3ah Ethernet OAM Device Link Detection Protocol (DLDP) DDM |
Omada SX3008F Omada 8-Port 10GE SFP+ L2+ Managed Switch
