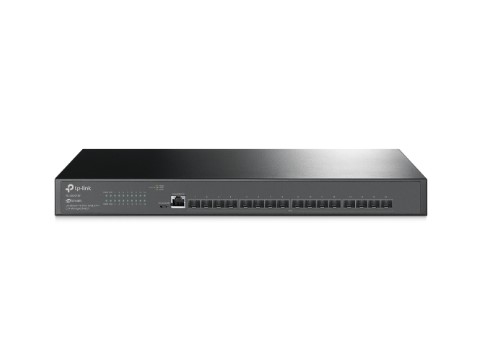

TP-Link JetStream™ 16-Port 10GE Sfp+ L2+ Managed Switch, 16× 10G Sfp+ Slots, RJ45/Micro-USB Console Port, 1U 19-inch Rack-mountable Steel Case, 5-Year Wty SX3016F
SKU
397512
Brand
MPN
SX3016F
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,218.00
Buy Now And Earn 1218 Reward Points!
TP-Link JetStream 16-Port 10GE SFP+ L2+ Managed Switch- (SX3016F)
| SKU | SX3016F |
|---|---|
| MIBs | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting/Authentication Client MIBs, Remote Ping/Traceroute MIB (RFC2925), TP-Link private MIB support |
| Brand | TP-Link |
| Model | TL-SX3016F |
| Ports | 16 × 10G SFP+ |
| Weight | 2.76 kg (6.07 lb) |
| Mounting | Rack mountable (rack ears included) |
| Warranty | 5 Year Limited Manufacturer Warranty |
| Multicast | IGMP v1/v2/v3 snooping (querier, fast leave, authentication), MLD v1/v2 snooping, MVR, multicast filtering (256 profiles) |
| Management | Omada Cloud-Based/Hardware/Software Controller, Web GUI, CLI (console/Telnet/SSH), SNMP v1/v2c/v3, RMON, Dual Image/Configuration, batch config/firmware upgrade, cable diagnostics, EEE |
| Port Types | SFP+ (10 Gbps) |
| Description | The TP-Link TL-SX3016F is a JetStream L2+ managed 1U switch with sixteen dedicated 10 Gbps SFP+ fiber ports and a non-blocking 320 Gbps switching capacity. It delivers enterprise L2/L2+ features — including static routing, advanced QoS, IGMP/MLD snooping, LACP link aggregation, VLANs and extensive access control — plus robust security (IP-MAC-Port binding, ACLs, 802.1X, DHCP snooping, DoS/storm controls). Management options include Omada SDN integration (cloud, hardware or software controller), Web GUI, CLI (console/Telnet/SSH), SNMP/RMON and Zero-Touch Provisioning (with Omada Cloud controller). Rack-mountable with redundant power capability, the TL-SX3016F is designed for high-bandwidth aggregation, backbone and server-access deployments. |
| Environment | Operating temperature 0–45 °C (32–113 °F); storage temperature -40–70 °C (-40–158 °F); operating humidity 10–90% RH non-condensing |
| Form Factor | 1U, rack-mountable (also desktop-capable) |
| L2 Features | 802.1Q VLAN, MAC VLAN, Link Aggregation (static & 802.3ad LACP, up to 8 groups, 8 ports/group), Spanning Tree (STP/RSTP/MSTP), Loopback detection, Flow control, Port mirroring |
| L3 Features | Static routing (up to 48 static routes), Static ARP, Proxy ARP, DHCP Server/Relay (DHCP Interface Relay, DHCP VLAN Relay), IPv4/IPv6 interfaces support |
| Cloud Access | Yes (via Omada controllers) |
| Fan Quantity | 1 |
| Power Source | Internal power supply |
| Product Line | JetStream |
| Product Title | TP-Link TL-SX3016F JetStream 16-Port 10G SFP+ L2+ Managed Switch (Omada SDN) |
| Certifications | CE, FCC, RoHS |
| Additional Ports | 1 × RJ45 console port, 1 × Micro-USB console port |
| Package Contents | TL-SX3016F switch, 2× power cords, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| Country of Origin | China |
| MAC Address Table | 32 K entries |
| Security Features | IP-MAC-Port Binding, IPv6-MAC-Port Binding, ACLs (L2/L3/L4, time-based), 802.1X (port/mac-based, MAB, guest VLAN), DHCP snooping, ARP inspection, IPv4/IPv6 Source Guard, DoS defend, port security (up to 64 MACs/port), port isolation, AAA/TACACS+ support |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Switching Capacity | 320 Gbps (non-blocking) |
| Compatibility Notes | Omada SDN features require compatible Omada controllers or SDN-capable firmware; standalone mode supports full L2/L2+ and selected L3/ISP features. Recommended to use compatible SFP+ modules (manufacturer notes recommend TL-SM5310-T modules for grouped SFP+ port setups). |
| Jumbo Frame Support | 9 KB |
| Included Accessories | 2 × power cords, Quick Installation Guide, Rackmount kit (rack ears), Rubber feet |
| Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
| Packet Buffer Memory | 24 Mbit |
| Max Power Consumption | 32.74 W |
| Omada SDN Integration | Yes (supports Omada Hardware Controller OC200/OC300, Omada Software Controller and Omada Cloud-Based Controller); Zero-Touch Provisioning requires Omada Cloud-Based Controller |
| Packet Forwarding Rate | 238.08 Mpps |
| Dimensions (W × D × H) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Quality of Service (QoS) | 8 priority queues, 802.1p CoS/DSCP, SP/WRR/SP+WRR scheduling, bandwidth control (port/flow rate limiting), QoS remarking |
| Redundant Power Supplies | Dual redundant power supply support (two power cords included) |
TP-Link JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch, 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port, 1U 19-inch Rack-mountable Steel Case, 5-Year WTY
