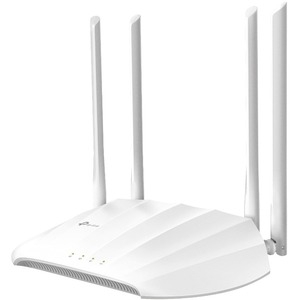

TP-LinkAC1200 Dual-Band Wi-Fi Access Point, 867Mbps At 5GHz + 300Mbps At 2.4GHz, 802.11b/g/n/ac, 1 Gigabit Ports, Passive PoE Supported, AP/Client/Range Extende TL-WA1201
SKU
431228
Brand
MPN
TL-WA1201
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$90.00
Buy Now And Earn 90 Reward Points!
AC1200 Dual-Band Wi-Fi Access Point, 867Mbps at 5GHz + 300Mbps at 2.4GHz, 802.11b/g/n/ac, 1 Gigabit Ports, Passive PoE Supported, AP/Client/Range Extender, Multi-SSID, 4 fixed antennas, Beamforming, MU-MIMO
| MPN | TL-WA1201 |
|---|---|
| PoE | Passive PoE supported; PoE injector included |
| SKU | TL-WA1201 |
| Brand | TP-Link |
| Color | White |
| Model | TL-WA1201 |
| Series | TL-WA1201 |
| Weight | ounces: 10.6 oz |
| Antenna | 4 fixed high-performance external antennas (Beamforming) |
| Buttons | Power On/Off WPS Reset |
| Category | Networking > Wireless Networking |
| Warranty | Limited lifetime protection (manufacturer-stated on multiple listings) |
| Dimensions | inches: 8.9 × 5.7 × 1.5 in millimeters: 225 × 145.5 × 37 mm |
| Management | Web (HTTP/HTTPS) management App management |
| Description | The TP-Link TL-WA1201 is an AC1200 (802.11ac Wave 2) dual-band wireless access point delivering combined speeds up to 1200 Mbps (867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz). Designed for flexible deployment, it supports Passive PoE (PoE injector included) and offers multiple operation modes (Access Point, Range Extender, Client, Multi-SSID). MU-MIMO and Beamforming improve multi-device performance and coverage across four fixed high-performance antennas. Management and configuration are available via web (HTTP/HTTPS) and app. Additional features include a captive portal, WMM QoS, IPv4/IPv6 support, Gigabit Ethernet, and common wireless security options (WEP/WPA/WPA2). |
| Form Factor | Desktop |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Environmental | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Max Data Rate | AC1200 (Up to 1200 Mbps total: 867 Mbps @5 GHz + 300 Mbps @2.4 GHz) |
| Product Title | TP-Link TL-WA1201 AC1200 Dual-Band Wireless Access Point (Passive PoE, Gigabit, 4 Antennas) |
| Wireless Type | Dual-Band, MU-MIMO |
| Certifications | CE FCC RoHS |
| Ethernet Ports | 1 × 10/100/1000 Mbps (Gigabit) Ethernet port (supports Passive PoE) |
| Wireless Modes | Access Point Range Extender Client Multi-SSID |
| Frequency Bands | 2.4 GHz 5 GHz |
| Power (Adapter) | 12V ⎓ 1.5A (external power adapter included) |
| Package Contents | TL-WA1201 access point Power adapter PoE injector RJ45 Ethernet cable Quick Installation Guide |
| Special Features | MU-MIMO Beamforming Captive Portal Passive PoE |
| Advanced Features | Captive Portal Multi-SSID (up to 4 SSIDs / VLAN support on some modes) WDS Bridge Wireless Multicast Forwarding Access Control DHCP Server |
| Country of Origin | China |
| Hardware Versions | V3.60 V3.46 V3 V2.60 V2 |
| Item Model Number | TL-WA1201 |
| Network Protocols | IPv4 IPv6 |
| Wireless Security | 64/128-bit WEP WPA WPA2 WPA-PSK WPA-PSK2 |
| Firmware / Support | Firmware downloads and documentation available from TP-Link regional support pages (hardware-version dependent) |
| Quality of Service | WMM |
| Transmission Power | < 30 dBm |
| Wireless Standards | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac (Wave 2) |
| Included Accessories | Wireless Access Point TL-WA1201 Power adapter RJ45 Ethernet cable Quick Installation Guide PoE power injector |
| Manufacturer Website | http://www.tp-link.com/us |
| Receiver Sensitivity | 5 GHz: { "11a 6 Mbps": "-95 dBm", "11a 54 Mbps": "-81 dBm", "11n HT40 (MCS0)": "-91 dBm", "11n HT40 (MCS7)": "-71 dBm", "11ac VHT20 (MCS0)": "-94 dBm", "11ac VHT20 (MCS8)": "-71 dBm", "11ac VHT80 (MCS0)": "-88 dBm", "11ac VHT80 (MCS9)": "-63 dBm" } 2.4 GHz: { "11g 54 Mbps": "-78 dBm", "11n HT20 (MCS0)": "-92 dBm", "11n HT20 (MCS7)": "-74 dBm", "11n HT40 (MCS0)": "-88 dBm", "11n HT40 (MCS7)": "-72 dBm" } |
| Operating System (device software) | ZyNOS (as listed on some product details) |
