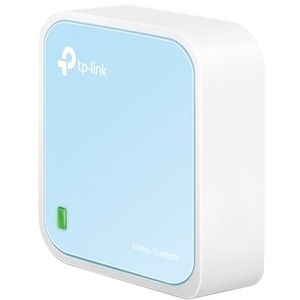

TP-Link 300Mbps Wireless N Nano Router - (Tl-Wr802N) TL-WR802N
SKU
425992
Brand
MPN
TL-WR802N
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$46.00
Buy Now And Earn 46 Reward Points!
TP-Link 300Mbps Wireless N Nano Router - (TL-WR802N)
| SKU | TL-WR802N |
|---|---|
| DDNS | NO-IP Comex DynDNS |
| DHCP | DHCP Server DHCP Client List Address Reservation |
| IPTV | IGMP Proxy |
| LEDs | Single status LED (indicators as described by manufacturer) |
| Brand | TP-Link |
| Model | TL-WR802N |
| Power | Input / Adapter: 5 V ⎓ 1 A (Micro-USB) Adapter Voltage (as listed): 100–240 V (external adapter) |
| Memory | DDR3 SDRAM (as listed) |
| Antenna | 2× fixed / on-board antennas |
| Battery | No internal battery (powered via Micro-USB / external adapter; can be run from USB power bank) |
| Buttons | Reset |
| Category | Networking |
| Security | Encryption: [ "WEP", "WPA", "WPA2", "WPA/WPA2-Enterprise (802.1x) - only in Router and AP modes" ] Guest Network: 1× 2.4 GHz guest network Firewall & Access: [ "SPI Firewall", "Access Control", "IP & MAC Binding", "Application Layer Gateway" ] |
| Warranty | TP-Link limited warranty (varies by region; 2-year warranty mentioned in product listings) |
| Processor | Single-Core CPU |
| USB Ports | 1× Micro USB (power) |
| Management | TP-Link Tether app Web interface (HTTP/HTTPS) |
| WiFi Speed | 300 Mbps (2.4 GHz, 802.11n) |
| Description | The TP-Link TL-WR802N is a pocket-sized 300Mbps (N300) portable nano router that creates a private Wi‑Fi hotspot wherever an Internet connection is available. Designed for travel and home use, it supports multiple operation modes (Router, Access Point, Range Extender/Repeater, Client, Hotspot/WISP) and is powered via Micro-USB (5V⎓1A) or an external power adapter. The unit includes a single 10/100 Mbps Ethernet port, integrated antennas, basic guest network and advanced security (WEP/WPA/WPA2/WPA/WPA2-Enterprise), and can be managed via the TP-Link Tether app or web interface. Package contents typically include the TL-WR802N router, power adapter, USB cable, RJ45 Ethernet cable, Quick Installation Guide and Resource CD. |
| Item Weight | 1.06 ounces |
| Sub-Category | Routers and Components |
| Product Title | TP-Link TL-WR802N 300Mbps Wireless N Pocket/Travel Nano Router (2.4 GHz, 5 Modes) |
| Certifications | FCC |
| Frequency Band | Single‑band 2.4 GHz (2.4–2.4835 GHz) |
| Operation Modes | Router Access Point (AP) Range Extender / Repeater Client Hotspot / WISP |
| Wi-Fi Generation | Wi‑Fi 4 |
| Quality of Service | QoS by Device |
| Wireless Standards | IEEE 802.11n IEEE 802.11g IEEE 802.11b |
| System Requirements | JavaScript-enabled web browser (IE11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+), cable/DSL modem (if required) and ISP subscription for internet access |
| Dimensions (W×D×H) | 2.2 × 2.2 × 0.7 in (57 × 57 × 18 mm) |
| Number of Processors | 1 |
| Ethernet Port Details | 1× 10/100 Mbps WAN/LAN (switchable) |
| NAT & Port Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| WiFi Range (as listed) | 2 Bedroom Houses |
| Notes / Additional Info | Pre-encryption feature sets initial SSID and password on first power-up; device may run warm under continuous use |
| Number of Ethernet Ports | 1 |
| Compatible Devices / Notes | Works with 2.4 GHz devices including Chromecast and Amazon Fire TV Stick; compatible with routers supporting 802.11 b/g/n |
| Network Services Enabled by Default | Web Server (port 80/443 TCP) DHCP Server (port 67 UDP) App management (ports 20001 TCP / 20002 UDP) |
| WiFi Transmission Power (Test Data) | <30 dBm (FCC) |
| Environment and Operating Conditions | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| WiFi Reception Sensitivity (Test Data) | 1M: -100 dBm @8% PER 6M: -92 dBm @10% PER 11M: -100 dBm @8% PER 54M: -78 dBm @10% PER 108M: -88 dBm @10% PER 130M: -75 dBm @10% PER 270M: -70 dBm @10% PER |
| Included Accessories / Package Contents | TL-WR802N Wi‑Fi Router Power Adapter USB Cable (Micro-USB) RJ45 Ethernet Cable Quick Installation Guide Resource CD |
TP-Link 300Mbps Wireless N Nano Router - (TL-WR802N)
