MPN	TP-DCDC-4856G-VHP
UPC	633090396595
ASIN	B00KJN9ITM
Brand	Tycon Systems
Model	TP-DCDC-4856G-VHP
Notes	Supplies passive 56 VDC PoE on all eight Ethernet conductors; removable wire terminal input; designed for high-power passive PoE applications.
Series	TP-DCDC
Weight	Ounces: 9 oz Pounds: 0.56 lb Kilograms:
PoE Type	4-pair passive PoE (56 VDC on all 8 wires)
Data Rate	Gigabit Ethernet (Gigabit compatible, data throughput supported)
Isolation	Input and output isolated
Packaging	Box
Dimensions	Width: 3.00 in Height: 1.50 in Length: 4.90 in Width_mm: 76.2 mm Height_mm: 38.1 mm Length_mm: 124.5 mm
Efficiency	Approximately 80%
PoE Pinout	Pins 3,4,5,6 = V+ ; Pins 1,2,7,8 = V-

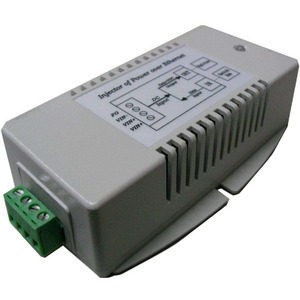

Description	The Tycon Systems TP-DCDC-4856G-VHP is a Gigabit-compatible, very high power DC-to-DC converter and passive PoE inserter that supplies 56 VDC passive PoE on all 8 Ethernet wires (4-pair) at up to 70 W. It accepts ±36–72 VDC wire-terminal input with two isolated DC inputs for primary/backup power, provides surge, short-circuit, over-current and over/reverse-voltage protection, and isolates input and output. Designed for Ubiquiti airFiber antennas and high-power PoE security/PTZ cameras, it supports Gigabit data throughput, operates from -40 °C to 70 °C, and is chassis-mountable. Dimensions: 4.90" L x 3.00" W x 1.50" H (124.5 x 76.2 x 38.1 mm); weight: ~9 oz (0.56 lb). Certifications include FCC, TÜV, UL1950/UL listed, CSA 22.2 and EN55022 Class B.
Part Status	Active
Protections	Surge protection Short-circuit protection Over-current protection Over-voltage / Reverse-voltage protection
Manufacturer	Tycon Systems Inc.
Output Power	70 W
Product Type	DC-DC Converter / Passive PoE Inserter
Input Voltage	±36–72 VDC (wire terminal)
Mounting Type	Chassis mount
Product Title	Tycon Systems TP-DCDC-4856G-VHP 56V 70W Gigabit DC-DC Converter & Passive PoE Inserter
Certifications	FCC TÜV UL1950 / UL listed CSA 22.2 EN55022 Class B I.T.E. Power Supply
Output Voltage	56 V DC (PoE)
Input Connector	Removable wire terminal (supports up to 12 AWG)
Output Connector	Gigabit Ethernet (PoE output/data passthrough)
Input Voltage Notes	Dual isolated DC inputs for connecting two power sources (primary and backup)
Operating Temperature	-40 °C to 70 °C
Maximum Output Current	1.25 A
Applications / Compatibility	Ubiquiti airFiber antennas High-power PoE security/PTZ cameras (e.g., Axis high power PTZ) 24 VDC remote power systems 48 VDC or -48 VDC remote power systems
