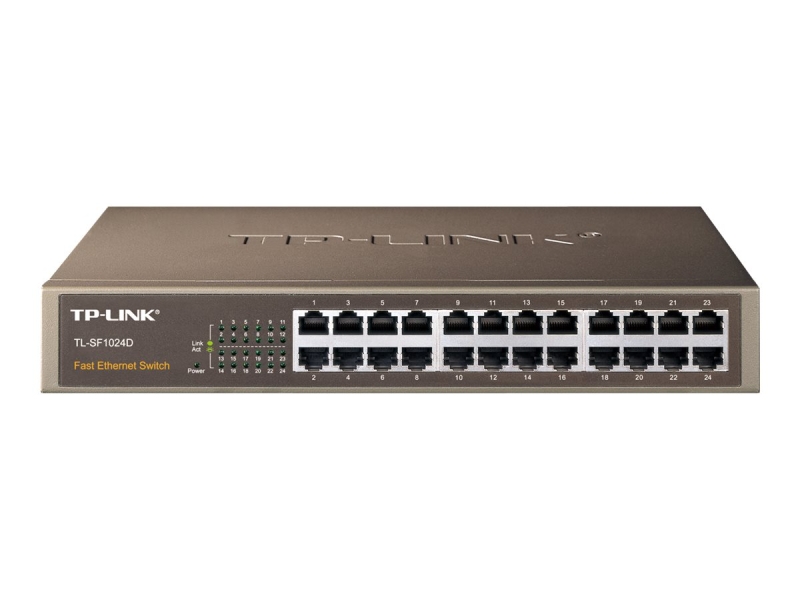

Tp-link 24 Port Unmanaged Switch, 10/ 100, Desktop & Rack, 3yr Tl-sf1024d
TP-LINK TL-SF1024D
WHAT THIS PRODUCT DOES
The TL-SF1024D Fast Ethernet Switch is a high-performance, easy-to-use, and
low-cost device to upgrade your old network to a 1000Mbps network. All 24 ports
support auto MDI/MDIX so you don?t need to worry about cable compatibility -
simply plug and play! Plus, with innovative energy-efficient technology, the
TL-SF1024D can save up to 75%* of the power consumption and recycle 80% of its
packaging material, making it an eco-friendly solution for your business
network.
HIGH PERFORMANCE
The TL-SF1024D?s metal case design combined with a safety certified internal
power supply make it very robust and cost-effective especially in environments
with 24 users or less. Featuring non-blocking switching architecture, the
TL-SF1024D forwards and filters packets at full wire-speed for maximum
throughput. Also, IEEE 802.3x flow control Full Duplex mode and backpressure for
Half Duplex mode, alleviating traffic congestion and increasing reliability.
TP-LINK GREEN TECHNOLOGY
Featuring the latest innovative energy-efficient technologies, the TL-SF1024D
can greatly expand your network capacity with much less power. The TL-SF1024D
automatically adjusts power consumption according to the link status and cable
length to limit the carbon footprint of your network. It also complies with the
EU'S RoHS, prohibiting the use of certain hazardous materials. Plus, 70% of the
packaging material can be recycled.
EASY TO USE
The auto features make the TL-SF1024D plug-and-play and hassle-free. No
configuration is required. Auto MDI/MDIX eliminates the need for crossover
cables. Furthermore, Auto-negotiation on each port senses the link speed of a
network device (10, 100, or 1000 Mbps) and intelligently adjusts for
compatibility and optimal performance.
See More:Datasheet
FEATURES
Innovative energy-efficient technology saves power up to 75%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
4.8 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps
hardware.
Plug and Play design simplifies installation
Fanless design to make sure it works quietly without disturbing your family
Model
Brand
TP-LINK
Model
TL-SF1024D
Spec
Switch Type
External
Standards
IEEE802.3, IEEE802.3u, IEEE 802.3x
Network Management Type
Unmanaged
Ports
24 x RJ45
Speed
10/100Mbps
MAC Address Table
8K
Switching Method
Store and Forward
Protocols
CSMA/CD, TCP/IP
LEDs
Power, Link/Act, 100Mbps
Power
100-240VAC, 50/60Hz
Dimensions
11.6" x 7.1" x 1.7"
Temperature
0ºC to 40ºC (32ºF to 104ºF)
Humidity
10% - 90%, Non-condensing
Features
Features
Basic Function:
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex
Mode
Port Forwarding:
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Standard 13-inch steel case
Innovative energy-efficient technology saves power up to 75%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
4.8 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps
hardware
Plug and Play design simplifies installation
Fanless design to make sure it works quietly without disturbing your family.
Details:
What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications:
HARDWARE FEATURES
- Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
- Interface: 24 x 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Network Media:
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- Backup Bandwidth: 4.8Gbps
- External Power Supply: 100-240VAC, 50/60Hz
- Fan Quantity: Fanless
- LED Indicator: Power, Link/Act, 100Mbps
- Dimensions (WxDxH): 11.6 x 7.1 x 1.7in. (294 x 180 x 44mm)
SOFTWARE FEATURES
- Basic Function:
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
- Port Forwarding:
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- Transfer Method: Store-and-Forward
- MAC Address Table: 8k
OTHERS
- Certification: FCC, CE, RoHS
- System Requirements:
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7
- MAC® OS, NetWare®, UNIX® or Linux
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
