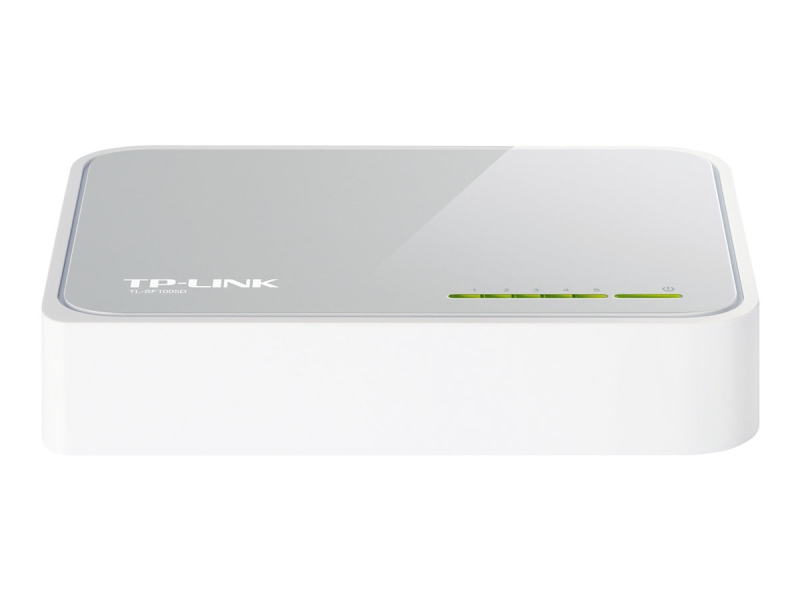

Tp-link 5 Port Unmanaged Switch, 10/ 100, Desktop, 3yr Tl-sf1005d
5-port Unmanaged 10/100M Desktop Switch (5 10/100M RJ45 ports)
TL-SF1005D
Spotlight:
* 5-port 10/100M Fast Ethernet Desktop Switch.
* Supports MAC address self-learning and auto MDI/MDIX.
TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps
Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function,
eliminating the need for crossover cables or Uplink ports. The Switch is
Plug-and-Play and each port can be used as general ports or Uplink ports and can
be simply plugged into a server, a hub or a switch, using straight cable or
crossover cable.
The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a
low-cost, easy-to-use, high-performance, seamless and standard upgrade to
improve your old network to a 100Mbps network. It will boost your network
performance up to full duplex data transfer. Its wire-speed switching that
forwards packets can be as fast as the speed that your network delivers those
packets to them.
Features
* Complies with IEEE802.3, IEEE802.3u standards
* 5 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
* Supports IEEE802.3x flow control for Full Duplex mode and backpressure for
half-duplex mode
* Supports MAC address auto-learning and auto-aging
* LED indicators for monitoring power, link, activity
* Plastic case, desktop or wall-mounting design
* External Power Adapter supply
Specifications
Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Topology Star
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), Fast
Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m),
EIA/TIA-568 100Ù STP (maximum 100m), 100Base-Tx: UTP category 5, 5e cable
(maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)
Number of Ports 5 10/100Mbps Auto-Negotiation ports
LED indicators Power, Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps
Power Supply Output 12V~ 50-60Hz, 0.35A
Safety & Emission FCC, CE
Dimensions (W?D?H) 5.5?3.3?1.2in.(140?85?30mm)
Environment
Operating Temperature: 0 C~40 C (32 F~104 F)
Storage Temperature: -40 C~70 C (-40 F~158 F)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
Details:
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Easy to Use
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications:
HARDWARE FEATURES
- Interface:
- 5 x 10/100Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- External Power Supply: 100-240VAC, 50/60Hz
- Dimensions (WxDxH): 4.1 x 2.8 x 0.9in. (103.5 x 70 x 22mm)
- Fan Quantity: Fanless
SOFTWARE FEATURES
- Transfer Method: Store and Forward
- Advanced Functions:
- Green Technology, saving power up to 68%
- 802.3X Flow Control, Back Pressure
- Auto-Uplink Every Port
OTHERS
- Certification: FCC, CE, RoHs
- Package Contents:
- 5-Port 10/100Mbps Desktop Switch
- Power Adapter
- User Guide
- System Requirements:
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7
- MAC® OS, NetWare®, UNIX® or Linux
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F);
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F);
- Operating Humidity: 10% ~ 90% non-condensing;
- Storage Humidity: 5% ~ 90% non-condensing
