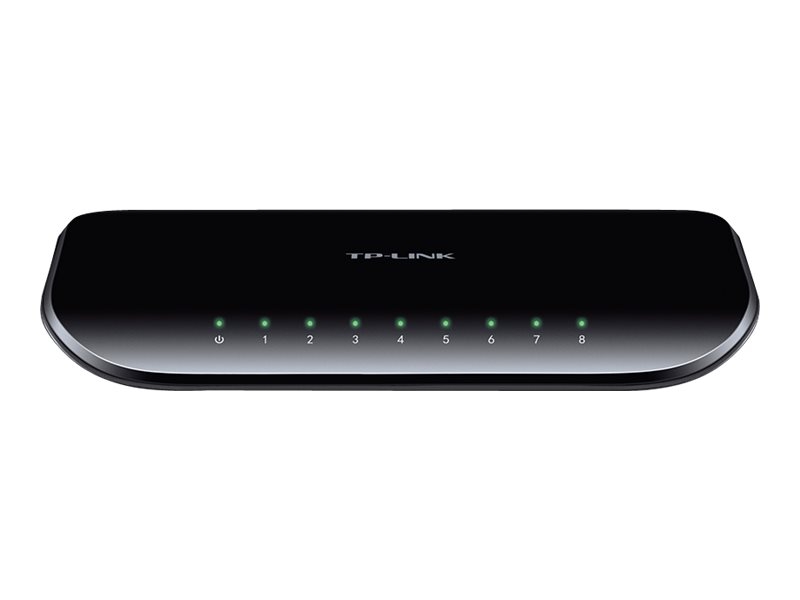

Tp-link 8 Port Unmanaged Switch, 10/ 100/ 1000, Desktop, 3yr Tl-sg1008d
8-port Unmanaged Gigabit Desktop Switch (8 10/100/1000M RJ45 ports)
TL-SG1008D
Spotlight:
* 8-port 10/100/1000M Gigabit Ethernet Desktop Switch Supports MAC address
self-learning and auto MDI/MDIX.
The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a
high-performance, low-cost, easy-to-use, seamless and standard upgrade to
improve old network to 1000Mbps network. Increase the speed of your network
server and backbone connections, or make Gigabit to the desktop a reality. Power
users in the home, office, workgroup, or creative production environment can now
move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or
multimedia files and other applications that have to move large files across the
network almost instantly.
Features
* Fully Complies with IEEE802.3, 802.3u and 802.3ab standards
* 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
* Supports IEEE802.3x flow control for Full Duplex mode and backpressure for
Half Duplex mode
* Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
* Supports MAC address auto-learning and auto-aging
* LED indicators for monitoring power, link, activity
* Plastic case, desktop or wall-mounting design
* External power adapter supply
Specifications
Standards IEEE802.3 , IEEE802.3u , IEEE802.3ab
Topology Star
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), Fast
Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex), Gigabit Ethernet:
2000Mbps (Full Duplex)
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m),
EIA/TIA-568 100Ù STP (maximum 100m), 100Base-Tx: UTP category 5, 5e cable
(maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m), 1000Base-T: UTP category 5,
5e cable (maximum 100m)
Number of Ports 8 10/100/1000Mbps Auto-Negotiation ports
LED indicators Power, Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps:
1488000pps
Power Supply Output 9V~ 50-60Hz, 1.2A
Dimensions (W?D?H) 7.3?5.7?1.7in.(186?146?44mm)
Safety & Emission FCC, CE
Environment
Operating Temperature: 0 C~40 C (32 F~104 F)
Storage Temperature: -40 C~70 C (-40 F~158 F)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
Details:
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 x 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use. - Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications:
HARDWARE FEATURES
- Interface:
- 8 x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- External Power Supply: 100-240VAC, 50/60Hz
- Fan Quantity: Fanless
- Dimensions (WxDxH): 6.5 x 4.3 x 1.1in. (165 x 108 x 28mm)
SOFTWARE FEATURES
- Transfer Method: Store and Forward
- MAC Address Table: 8K
- Advanced Functions:
- Green Technology, saving power up to 80%
- 802.3X Flow Control, Back Pressure
- Auto-Uplink Every Port
OTHERS
- Certification: FCC, CE, RoHs
- Package Contents:
- 8-Port Gigabit Desktop Switch
- Power Adapter
- User Guide
- System Requirements:
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7
- MAC® OS, NetWare®, UNIX® or Linux
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
