TP-LINK 8 PORT UNMANAGED SWITCH, 10/ 100/ 1000, UNMANAGED, DESKTOP & RACK, 3YRTL-SG1008
What This Product Does

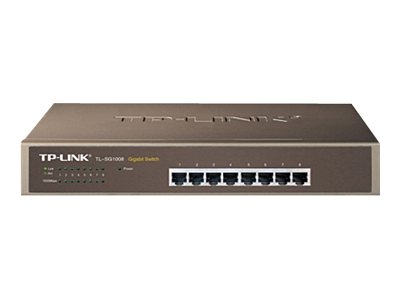

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to
make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no
need to worry about the cable type, simply plug and play. Moreover, with the
innovative energy-efficient technology, the TL-SG1008 can save up to 60%* of the
power consumption, making it an eco-friendly solution for your business network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008 greatly expands your network
capacity, enabling instant large files transferring. So, power users in the
home, office, workgroup, or creative production environment can now move large,
bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia
files across the network instantly
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This
new product TL-SG1008 features the latest innovative energy-efficient
technologies that can greatly expand your network capacity with much less power.
It automatically adjusts power consumption according to the link status and
cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a
traditional switch will continue to consume considerable amounts of power. The
TL-SG1008 can automatically detect the link status of each port and reduce the
power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation
over their length; this is not the case with most devices as they will use the
same amount of power across the cable regardless of the length.
Superior Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 96Gbps
switching capacity for maximum data throughput. An 8K MAC address table provides
scalability for even the largest networks. It also supports 802.3x Flow Control
for full-duplex mode, and back pressure flow control for half-duplex mode
alleviates traffic congestion and ensures reliable data transmission.
Ease of Use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports
eliminate the need for crossover cables or uplink ports. Auto-negotiation on
each port senses the link speed of a network device (either 10, 100, or 1000
Mbps) and intelligently adjusts for compatibility and optimal performance.
Compact size shell make it ideal for desktops with limited space while it is
also Rackmountable, convenient and safe. Dynamic LED lights provide real-time
work status display and basic fault diagnosis.
Innovative energy-efficient technology saves power up to 60%
100% Data filtering rate eliminates all error packets
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture forwards and filters packets at full
wire-speed for maximum throughput
16Gbps Switching Capacity
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Support the port N-Way Auto-Negotiation, Store and Forward
Compact size design for desktops, Rackmountable
Plug and Play design simplifies installation
HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
External Power Supply 100-240VAC, 50/60Hz
Fan Quantity Fanless
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer Method Store and Forward
MAC Address Table 8K
Advanced Functions 802.3X Flow Control, Back Pressure
Auto-Uplink Every Port
OTHERS
Certification FCC, CE, RoHS
Package Contents 8-Port Gigabit Desktop Switch
Power Cord
User Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7,
MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Details:
What This Product Does
The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save up to 75%* of the power consumption, making it an eco-friendly solution for your business network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new product TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Superior Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Specifications:
HARDWARE FEATURES
- Interface:
- 8 x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- External Power Supply: 100-240VAC, 50/60Hz
- Fan Quantity: Fanless
- Dimensions (WxDxH): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44mm)
SOFTWARE FEATURES
- Transfer Method: Store and Forward
- MAC Address Table: 8K
- Advanced Functions:
- 802.3X Flow Control, Back Pressure
- Auto-Uplink Every Port
OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:
- 8-Port Gigabit Desktop Switch
- Power Cord
- User Guide
- System Requirements:
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7
- MAC® OS, NetWare®, UNIX® or Linux.
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F);
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F);
- Operating Humidity: 10% ~ 90% non-condensing;
- Storage Humidity: 5% ~ 90% non-condensing
