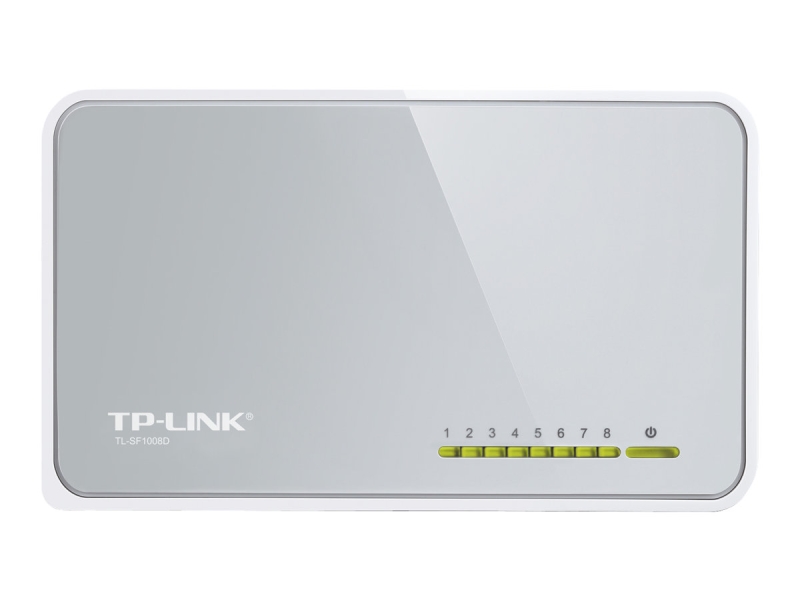

Tp-link 8 Port Unmanaged Switch, 10/ 100, Desktop, 3yr Tl-sf1008d
8-port Unmanaged 10/100M Desktop Switch (8 10/100M RJ45 ports)
TL-SF1008D
Spotlight:
* 8-port 10/100M Fast Ethernet Desktop Switch
* Supports MAC address self-learning and auto MDI/MDIX.
TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps
Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function,
eliminating the need for crossover cables or Uplink ports. The Switch is
Plug-and-Play and each port can be used as general ports or Uplink ports and can
be simply plugged into a server, a hub or a switch, using straight cable or
crossover cable.
The TP-LINK TL-SF1008D 8-port 10/100M Fast Ethernet Switch provides you with a
low-cost, easy-to-use, high-performance, seamless and standard upgrade to
improve your old network to a 100Mbps network. It will boost your network
performance up to full duplex data transfer. Its wire-speed switching that
forwards packets can be as fast as the speed that your network delivers those
packets to them.
Features
* Complies with IEEE802.3, IEEE802.3u standards
* 8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
* Supports IEEE802.3x flow control for Full Duplex mode and backpressure for
half-duplex mode
* Supports MAC address auto-learning and auto-aging
* LED indicators for monitoring power, link, activity
* Plastic case, desktop or wall-mounting design
* External Power Adapter supply
Specifications
Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Topology Star
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), Fast
Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m),
EIA/TIA-568 100Ù STP (maximum 100m), 100Base-Tx: UTP category 5, 5e cable
(maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)
Number of Ports 8 10/100Mbps Auto-Negotiation ports
LED indicators Power, Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps
Power Supply Output 9V~ 50-60Hz, 0.8A
Safety & Emission FCC, CE
Dimensions (W?D?H) 5.5?3.3?1.2in.(140?85?30mm)
Environment
Operating Temperature: 0 C~40 C (32 F~104 F)
Storage Temperature: -40 C~70 C (-40 F~158 F)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
Details:
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 73%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications:
HARDWARE FEATURES
- Standards and Protocols:
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- CSMA/CD
- Interface: 8 x 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- External Power Supply: 100-240VAC, 50/60Hz
- Fan Quantity: Fanless
- Data Rates:
- 10/100Mbps at Half Duplex
- 20/200Mbps at Full Duplex
- LED Indicator: Power, 1, 2, 3, 4, 5, 6, 7, 8
- Dimensions (WxDxH): 5.3 x 3.1 x 0.9in. (134.5 x 79 x 22.5mm)
- Power Supply: External Power Adapter
SOFTWARE FEATURES
- Transfer Method: Store and Forward
- Advanced Functions:
- Green Technology, saving power up to 73%
- 802.3X Flow Control, Back Pressure
- Auto-Uplink Every Port
OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:
- 8-Port 10/100Mbps Desktop Switch
- Power Adapter
- User Guide
- System Requirements:
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8
- Mac® OS, NetWare®, UNIX® or Linux
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F);
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F);
- Operating Humidity: 10% ~ 90% non-condensing;
- Storage Humidity: 5% ~ 90% non-condensing
