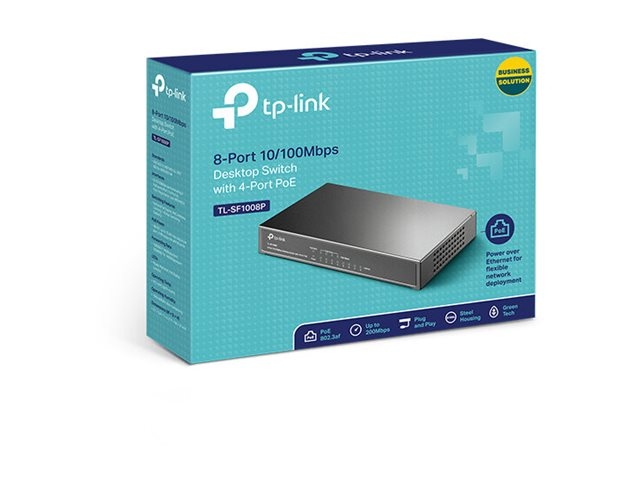

Tp-link 8 Port Unmanaged Switch (4 X Poe), 10/ 100, Desktop, 3yr Tl-sf1008p
TL-SF1008P
Spotlight:
* With four PoE ports, transfers data and power on one single cable
* Working with IEEE 802.3af compliant PDs, expands home and office network
* Requires no configuration and installation
The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network
connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network
capabilities.
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support
Power over Ethernet (PoE) function. These PoE ports can automatically detect and
supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this
situation, the electrical power is transmitted along with data in one single
cable allowing you to expand your network where there are no power lines or
outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones,
etc.
TL-SF1008P has the priority * function which will help protect the system when
the system power is overloaded. If all PoE PDs power consumption is >= 53W, a
priority will be arranged among the PoE ports, then the system will cut off the
power of the lowest-priority port.
TL-SF1008P is easy to install and use. It requires no configuration and
installation. With desktop design, outstanding performance and quality, the
TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for
expanding your home or office network.
Note: *priority (port-1>port-2>port-3>port-4): This function will help protect
the system if the system power becomes overloaded. For example, Port 1, 2 and 4
are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in
total (PoE max LED is red ). If there is an additional PD inserted to Port 3
with 10w then the system will cut off Port 4 to protect the system, this means
Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied
to Port 4
* Supports PoE power up to 15.4W for each PoE port
* Supports PoE power up to 53W for all PoE ports
* Supports PoE IEEE802.3af compliant PDs
* Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for
Half-duplex Mode
* 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
* LED indicators for monitoring power, link, activity and speed
* External power adapter supply
Software Specification
Standards and Protocols
IEEE 802.3, 802.3u, 802.3x, 802.3af
CSMA/CD, TCP/IP
Basic Function
Compatible with IEEE 802.3af compliant PDs
Port Priority Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex
Mode
Backbound Bandwidth
1.6Gbps
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Hardware Specification
Ports
8 10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4), Auto
MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
LED Indicators
Power, Link/Act, 100Mbps, PoE Status, PoE MAX
Safety & Emission
FCC, CE
Dimensions (W*D*H)
6.7*3.9*1.1 in. (171*98*27 mm)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
Consumption
5.8 watts (max. no PD connected)
58 watts (max. with 53w PD connected
Details:
8-Port 10/100Mbps Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SF1008P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
*Priority (port-1 > port-2 > port-3 > port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SF1008P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
Specifications:
HARDWARE FEATURES
- Interface:
- 8 x 10/100Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- PoE Ports (RJ45):
- Standard: 802.3 af compliant
- PoE Ports: Port1- Port4
- Power Supply: 57W
- Backbound Bandwidth: 1.6Gbps
- Mac Address Table: 2K
- External Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
- Dimensions (WxDxH): 6.7 x 3.9 x 1.1in. (171 x 98 x 27mm)
- Fan Quantity: Fanless
SOFTWARE FEATURES
- Transmission Method: Store-And-Forward
- Advanced Functions:
- Compatible With IEEE 802.3af Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:
- TL-SF1008P
- Power Adapter
- User Guide
- Consumption:
- 2.3 watts (max. no PD connected)
- 59.3 watts (max. with 53w PD connected)
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
