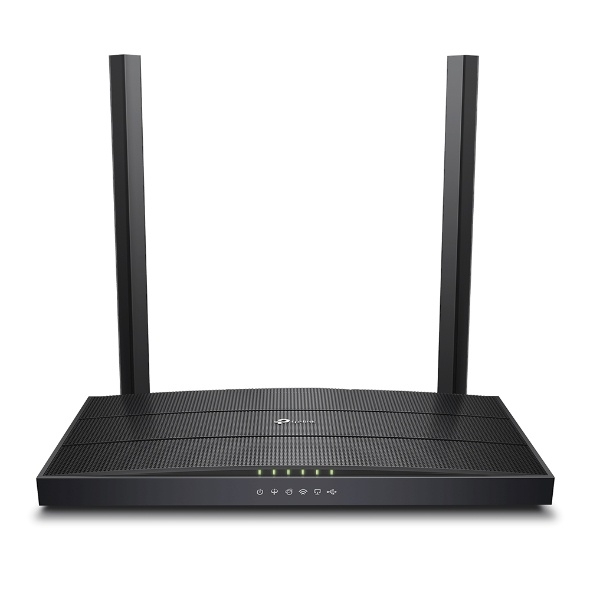

main product photo

Tp-link Archer-vr400, Wireless Ac1200 Vdsl/ Adsl Modem Router Archer-vr400

SKU
233680
Brand
Tp-link
Manufacturer Link
MPN
ARCHER VR400
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$181.00
Buy Now And Earn 181 Reward Points!
Add to Compare
  • Speedy Wi-Fi – Superb wireless experience with 300Mbps (2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections
  • Superior Range – Three detachable antennas provide stable wireless connections and optimal coverage
  • Versatile Connectivity – Fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services
  • Beamforming Technology – Improves wireless range and performance at 5GHz band
  • USB Port – Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle
  • Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices
  • Speedy Wi-Fi – Superb wireless experience with 300Mbps (2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections
  • Superior Range – Three detachable antennas provide stable wireless connections and optimal coverage
  • Versatile Connectivity – Fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services
  • Beamforming Technology – Improves wireless range and performance at 5GHz band
  • USB Port – Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle
  • Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices
  • Speedy Wi-Fi – Superb wireless experience with 300Mbps (2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections
  • Superior Range – Three detachable antennas provide stable wireless connections and optimal coverage
  • Versatile Connectivity – Fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services
  • Beamforming Technology – Improves wireless range and performance at 5GHz band
  • USB Port – Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle
  • Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices

HARDWARE FEATURES

  • Interface
    • 3 RJ45 LAN Ports
    • 1 RJ45 LAN/WAN Port
    • 1 RJ11 Port
    • 1 USB 2.0 Port
  • Button
    • WPS Button
    • Wireless On/Off Button
    • Power On/Off Button
    • Reset Button
  • Power Supply: 12V/1.5A
    • IEEE Standards
    • IEEE 802.3
    • IEEE 802.3u
    • 802.3ab
  • VDSL2 Standards
    • ITU G.993.2, Up to 17a prole (POTS)
    • ITU-T G.993.5 (G.vector)
    • ITU-T G.998.4 (G.INP)
  • ADSL Standards
    • Full-rate ANSI T1.413 Issue 2,
    • ITU-T G.992.1(G.DMT),
    • ITU-T G.992.2(G.Lite),
    • ITU-T G.994.1 (G.hs),
    • ITU-T G.995.1
  • ADSL2 Standards
    • ITU-T G.992.3 (G.DMT.bis),
    • ITU-T G.992.4 (G.lite.bis)
  • ADSL2+ Standards
    • ITU-T G.992.5
  • Dimensions (W x D x H): 243.5×167.5×32.7mm
  • Antenna Type: 3 xed external antennas

WIRELESS FEATURES

  • Wireless Standards
    • IEEE 802.11a/n/ac 5GHz,
    • IEEE 802.11b/g/n 2.4GHz
  • Wireless Speeds
    • 867Mbps at 5GHz
    • 300Mbps at 2.4GHz
  • Transmit Power
    • 2.4GHz <20dBm(EIRP)
    • 5GHz <23dBm(EIRP)
  • Wireless Functions
    • Enable/Disable Wireless Radio, WDS Bridge, WMM,
    • Wireless Statistics
  • Wireless Security
    • 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
    • encryptions, Wireless MAC Filtering
  • Wireless Schedule
    • Support 2.4GHz and 5GHz Wireless Schedule

SOFTWARE FEATURES

  • Quality of Service:
    • ATM QoS, Bandwidth Control
  • Security:
    • NAT Firewall, Access Control, IP and MAC Address Binding
  • Operating Modes:
    • VDSL/ADSL Modem Router, Wireless Router,3G/4G Router
  • Management
    • Web Based Conguration(HTTP), Remote management,
    • command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
    • Upgrade, Diagnostic Tools
  • DHCP:
    • Server, Client, DHCP Client List, Address Reservation, DHCP Relay
  • Port Forwarding:
    • Virtual Server, Port Triggering, DMZ, ALG, UPnP
  • Dynamic DNS:
    • DynDns, NO-IP
  • VPN Pass-Through:
    • PPTP, L2TP, IPSec Passthrough
  • Protocols:
    • Supports IPv4 and IPv6
  • ATM/PPP Protocols
    • ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
    • PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483
    • Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
  • Advanced Functions
    • Parental Control, Network Address Translation(NAT),
    • Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
    • DDNS, IGMP V1/V2/V3
  • USB Sharing
    • Support Samba(Storage)/FTP Server/Media Server/Printer
    • Server, 3G/4G Modem
  • Guest Network
    • 2.4GHz guest network, 5GHz guest network
  • IPSec VPN
    • Supports up to 10 IPSec VPN tunnels
  • Beamforming: 5GHz

OTHERS

  • Certification: CE, RoHS
  • Package Contents
    • AC1200 Wireless VDSL/ADSL Modem Router Archer VR400
    • External Splitter
    • RJ11 DSL Cable
    • RJ45 Ethernet Cable
    • Power Adapter
    • Quick Installation Guide
  • System Requirements
    • Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
    • Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
    • Subscription with an Internet Service Provider (for Internet access)
  • Environment
    • Operating Temperature: 0?~40? (32? ~104?)
    • Storage Temperature: -40?~70? (-40? ~158?)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
