TP-Link Gigabit Ethernet Media Converter (SC, multi-mode) Extends Up to 550 meters

Spotlight:
Complies with IEEE 802.3ab and IEEE 802.3z
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Provides switch configuration of Force /Auto transfer mode for FX port.
Extends fiber distance up to 0.5km

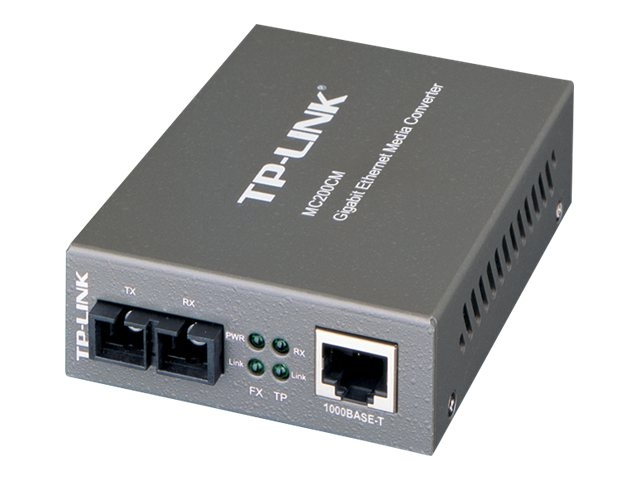

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port,and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Features:
Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Supports auto MID/MID-X for TX port
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 0.5km
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply
Specifications:

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)
LinkFaultPassthroughandFarEndFaultminimizetheloss causedbylinkfailuretimely
Ports
1 1000M SC port
1 1000M RJ45 port (Auto MDI/MDIX)
Network Media
1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-FX
Multi-mode Fiber
LED Indicators
PWR, LINK, RX
Safety & Emission
FCC, CE
Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Environment
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power Supply
External Power Adapter

More information of the 1000M series Media Converter
Model NO.
Interface
Transmission Distance
Transmission Media
Output Center Wavelength
MC200CM
RJ45--SC
0.55km(50/125um),
0.22km(62.5/125um)
Multi-mode Fiber,TP
850nm
MC210CS
RJ45--SC
15km
Single-mode Fiber,TP
1310nm
MC220L
RJ45--LC
0.55km /10km
Multi/Single-mode Fiber, TP
850nm/1310nm
