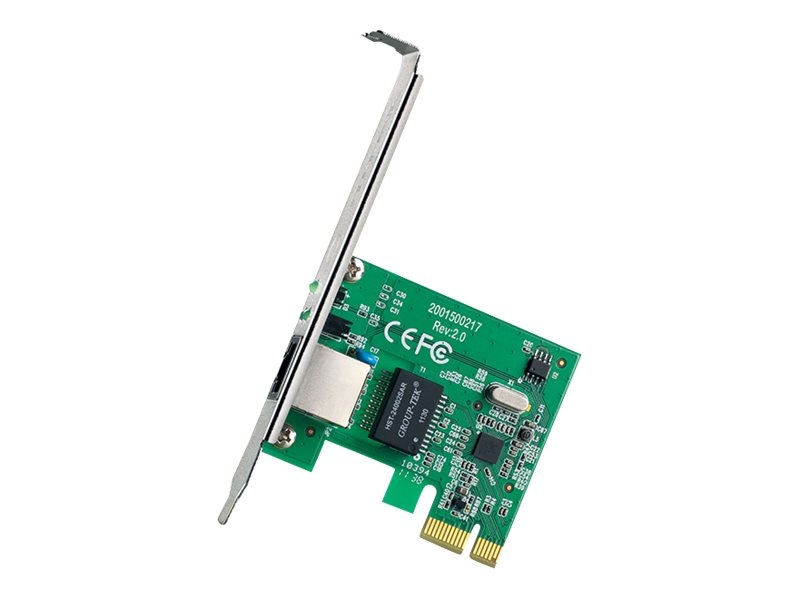

Tp-link Pci-e Network Adapter, Gb, 32-bit, Realtek Rtl8168b, 3yr Tg-3468
Overview
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and
cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant
with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed
for the high-speed PCI Express Bus Architecture. Designed to support
10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and
Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly
integrated and cost-effective Gigabit Ethernet Adapter which is a good selection
to upgrade your network.
Wake-on-LAN supporting
Auto-Negotiation and Auto MDI/MDIX
Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for
Half-duplex Mode
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
Supports power down/link down power saving
Specifications
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
CSMA/CD, TCP/IP
Interface 32-bit PCIe 1.0a
Transmission Rate 10/100Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
Jumbo Frame 4k Bytes
Port 10/100/1000Mbps RJ45
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicator 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
Safety & Emission FCC, CE
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Operating System Windows 98se/Me/2000/XP/XP64, Linux, Vista32/64
Details:
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
Specifications:
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
- Interface:
- 32-bit PCI Express
- 1 x 10/100/1000Mbps RJ45 port
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
- Data Rates:
- 10/100/1000Mbps for Half-Duplex mode
- 20/200/2000Mbps for Full-Duplex mode
- LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
- Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:
- Gigabit PCI Express Network Adapter TG-3468
- Resource CD
- Quick Installation Guide
- System Requirements:
- Windows 7 (32/64bits)
- Windows Vista (32/64 bits)
- Window XP (32/64bits)
- Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
