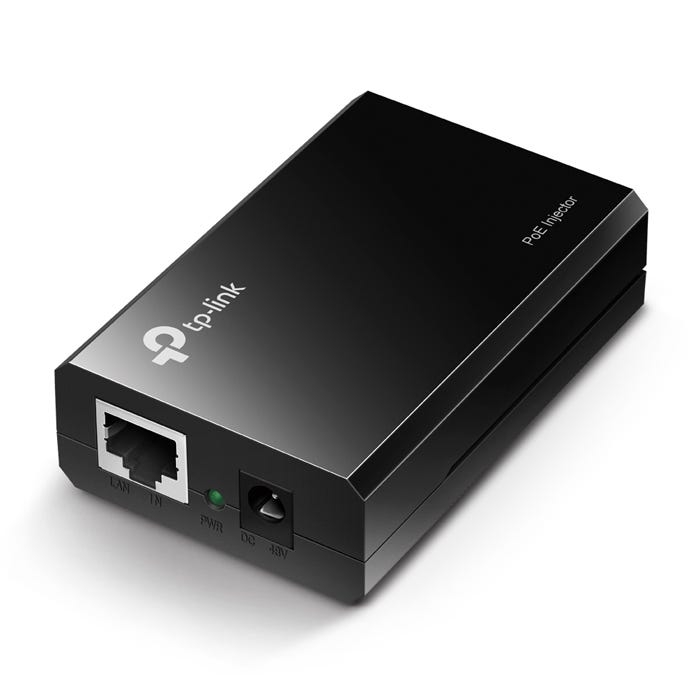

main product photo

Tp-link Power Over Ethernet Poe Injector: Tl-poe150s Tl-poe150s

SKU
238580
Brand
Tp-link
Manufacturer Link
MPN
006.008.0091
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$52.00
Buy Now And Earn 52 Reward Points!
Add to Compare

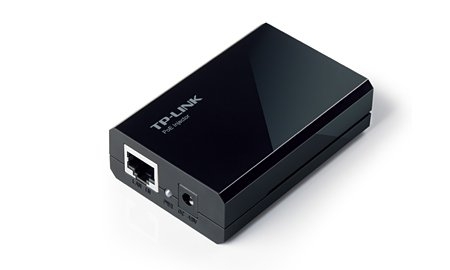

PoE InjectorTL-POE150S

  • IEEE 802.3af compliant
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

What This Product Does

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
  • External power adapter supply
HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 15.4W (Max. 48VDC)
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements
　
OTHERS
Certification FCC, CE, RoHS
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
The TP-LINK Power Over Ethernet PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. > IEEE 802.3af compliant > Auto-determine the necessary power requirements > Gigabit speed support > Plug-and-Play, requires no configurationSpecificationsHardware FeaturesIInterface: 2 10/100/1000Mbps RJ45 Port, AUTO Negotiation/AUTO MDI/MDIX, 1 48VDC POWER INPUT PORTDimensions: 80.8x54x24 mmLED Indicator: PWRPower Supply: 15.4W (Max. 48VDC)Software FeaturesBasic Function: Compatible With IEEE 802.3af Compliant PDs, Delivers Power Up To 100 Metres, Auto-Determine The Necessary Power RequirementsOthersCertification: FCC, CE, RoHSSystem Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.Operating Temperature: 0℃ to 40℃Storage Temperature: -40℃ to 70℃Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensingOur Promise & Value Add > We ship 97% of orders same day
