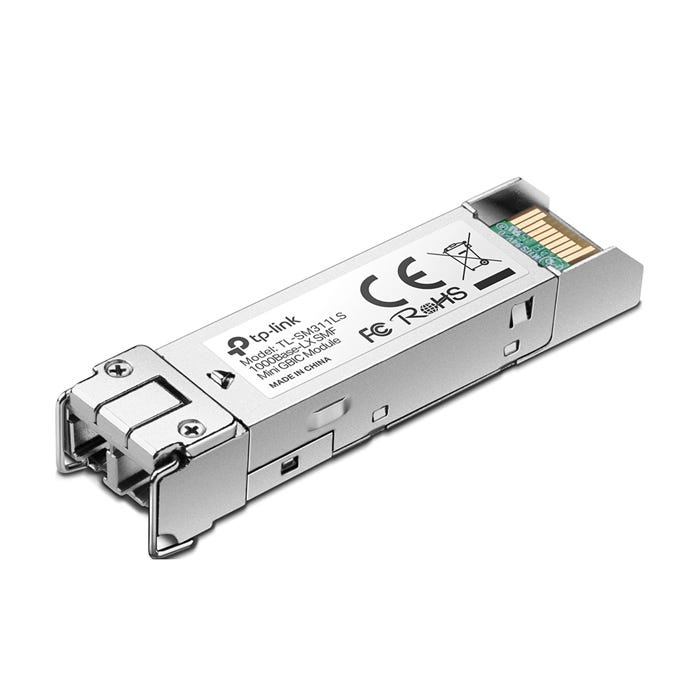

Tp-link | Tl-sm311ls Singlemode 1gb/ S Minigbic Module Tl-sm311ls

SKU
238579
Brand
Tp-link
Manufacturer Link
MPN
006.008.0071
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$47.00
Buy Now And Earn 47 Reward Points!
Add to Compare

What This Product Does

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

  • Supports Full-Duplex
  • Plug-and-Play
  • Supports Pull-or-Plug with power on switches
  • Power: internal power from switches
  • Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP
　
Wave Length 1310nm
Power Supply 3.3V
　
Safety & Emission FCC, CE
　
Cabel Single-mode Fiber
　
Fiber Type 9/125 μm Single-mode
Max. Cable Length 10km
Data Rate 1.25Gbps
　
Port Type LC/UPC
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TP-Link's TL-SM311LS Single-Mode Fibre Module Cards are designed for extending transfer distance between managed switches, media converters and other TP Link products such as the Smart PoE+ Switch, Web Smart Switch and the JetStream Stackable Managed Switch. When attached to TP-Links managed/smart switches, they can extend the distance to several kilometers even tens of kilometres which will satisfy the distance requirement of LAN. Users can choose whether and which items to use the fibre modules according to the demand in order to lower cost. Features Single-mode MiniGBIC module Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L Supports Full-Duplex. Plug-and-Play. Supports Pull-or-Plug with power on switches Power: internal power from switches Warranty1 year limited warranty.
