Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	16 PoE+ 10/100/1000Mbps RJ45 Ports 2 Fibre Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100-240V AC, 50/60 Hz
Backup Bandwidth	7.2 Gbps
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W
Mac Address Table	8K
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting	Rack-Mountable
Max Power Consumption	18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation	63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected)

PERFORMANCE
Switching Capacity	36 Gbps
Packet Forwarding Rate	23.8 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-based GUI Easy Smart Configuration Utility
Advanced Features	Compatible With IEEE 802.3at/af compliant PDs Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control
Transmission Method	Store-And-Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing

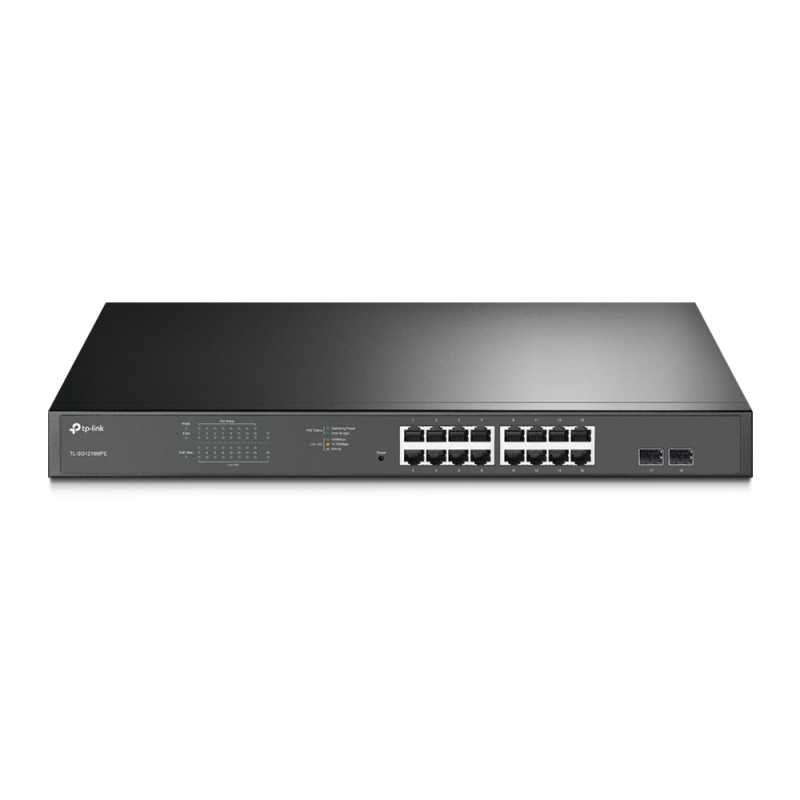

TP-Link TL-SG1218MPE JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch Easy Smart Switch is an ideal upgrade from Unmanaged Switch, designed for Small Office and Home Office networks. The switch supports the following features: Traffic monitoring: Port mirroring, loop prevention and cable test enable the administrator to monitor traffic of the network effectively.1 VLAN: MTU VLAN, Port based VLAN and 802.1Q VLAN can restrict broadcast domain, enhance network security and help manage devices easily. QoS: Port based QoS, 802.1P based QoS and DSCP/802.1P based QoS optimize traffic on your business network, and keep latency-sensitive traffic moving smoothly. Bandwidth control helps distribute and utilize network bandwidth reasonably. Storm control helps avoid network broadcast storm. PoE: PoE (Power over Ethernet) is a remote power supply function. With this function, the switch can supply power to the connected devices over twisted-pair cables Features 16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch 2 SFP ports PoE power budget is up to 192W, making it ideal for small to medium business surveillance system Port Priority is able to guarantee the quality of sensitive application like video monitor Intelligent power management can protect the switch from overload QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV. WARRANTY 5-Year Manufacturer’s Warranty Why 4Cabling? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
