Qnap Tr-002, 2-Bay Das Expansion Unit (No Disk), Sata USB-C(1), Twr, 2 Yrs Wty TR-002
SKU
368521
Brand
MPN
TR-002
Warranty
Standard Manufacturer's Warranty
$345.00
Buy Now And Earn 345 Reward Points!

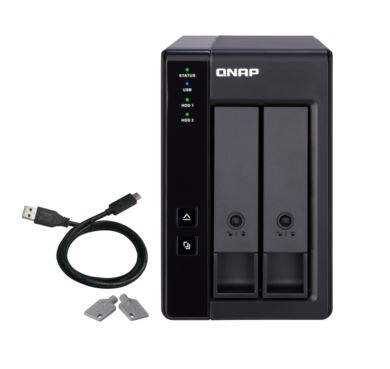

The TR-002 USB 3.2 Gen 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.2 Gen 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
| SKU | TR-002 |
|---|---|
| UPC | 885022017249 |
| Brand | QNAP |
| Model | TR-002 |
| Power | AC Input: 100-240VAC Power Supply: External AC adapter (12V DC minimum 36W) HDD Sleep Mode Power: 2.98 W Operating Power (Typical): 10.15 W |
| Cooling | 1 x 70mm fan; 5-speed automatic fan control; quiet operation |
| Category | Storage |
| Hot-Swap | Supported (note: hot-swap is not supported in Individual mode) |
| Drive Bays | 2 |
| Ship State | Enclosure Only (diskless) |
| Description | The QNAP TR-002 is a 2-bay USB 3.2 Gen 2 (10Gbps) Type-C RAID expansion enclosure and direct-attached storage (DAS) for NAS, PC, Mac and Linux systems. It accepts two 3.5" or 2.5" SATA drives (SATA III 6Gb/s, backward compatible with 3Gb/s) and supports Individual, JBOD, RAID 0 and RAID 1 modes with hardware RAID and optional software control via QNAP utilities. The TR-002 features a single USB-C 3.2 Gen 2 port (USB-C to USB-A cable included), tool-less trays for 3.5" drives, locking drive trays with keys, a 70mm fan with automatic speed control, LED and audio alerts, and sleep/power management. Ships diskless; includes AC adapter, power cord and mounting screws. |
| Form Factor | Tower / External Enclosure |
| Manufacturer | QNAP |
| RAID Control | Hardware RAID (0/1) with option for software-controlled mode via QNAP NAS or QNAP External RAID Manager (Windows/macOS utility) |
| Sub-Category | Drive Enclosures |
| Weight (Net) | 3.02 lbs |
| Compatibility | Devices: [ "Desktop", "Laptop", "QNAP NAS (expansion)" ] Operating Systems: [ "QNAP NAS (QTS 4.3.6 or later)", "Windows 8.1 or later", "Windows Server 2012 R2 or later", "macOS 10.13 or later", "Linux" ] |
| Product Title | QNAP TR-002 2-Bay USB 3.2 Gen 2 Type-C RAID Expansion Enclosure (Enclosure Only) |
| SATA Interface | SATA III 6Gb/s (backward compatible with 3Gb/s) |
| Drive Bay Details | 2 x 3.5" bays; supports 3.5" and 2.5" SATA HDD/SSD (use only one disk type per RAID group); tool-less trays for 3.5", screws for 2.5" |
| Relative Humidity | 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| Security Features | Lockable drive trays (keys included); system LED and audio alerts (buzzer) |
| Dimensions (HxWxD) | 6.63 x 4.02 x 8.62 inches |
| Notes / Limitations | Shipped without hard drives. Only one disk type (HDD or SSD) may be used in a RAID group; mixing disk types in a RAID group is not supported. Hot-swap not supported in Individual mode. RAID rebuild may delay sleep. |
| Storage Temperature | -20 - 70 °C (-4 - 158 °F) |
| Included Accessories | AC power adapter Power cord USB Type-C to Type-A cable Drive tray keys x2 USB cable clip Screws for 2.5" drives x6 Screws for 3.5" drives x8 Quick Installation Guide |
| Supported RAID Modes | Individual JBOD RAID 0 RAID 1 |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| Software / Management | QNAP External RAID Manager (Windows/macOS); QTS storage management features when used with QNAP NAS (RAID config, S.M.A.R.T., RAID rebuild/recovery, firmware update, logs, notifications) |
| Supported File Systems | EXT3 EXT4 NTFS FAT32 HFS+ exFAT (requires purchase of exFAT license) |
| Connectivity / Interface | 1 x USB 3.2 Gen 2 (10Gbps) Type-C port; includes USB-C to USB-A cable |
| Model Numbers / Part Numbers | TR-002 TR-002-A-US TR-002-US |
| Optional / Related Accessories (observed) | FAN-7CM-T01 PWR-ADAPTER-48W-A01 SCR-HDD25A-96 SCR-HDD35B-96 SP-1BAY-ADAPTOR TRAY-35-BLK01 CAB-U310G10MAC CAB-U310G10MCC |
QNAP TR-002, 2-BAY DAS EXPANSION UNIT (NO DISK), SATA USB-C(1), TWR, 2 Yrs WTY
