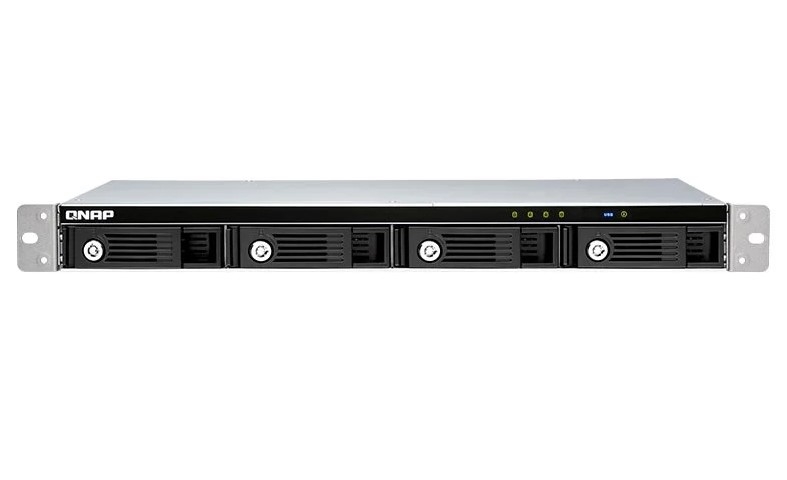

Qnap Tr-004U, 4 Bay Das(No Disk) Hardware Raid Expansion For Win,Mac,Linux Device, 1RU,2YR TR-004U
SKU
410827
Brand
MPN
TR-004U
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$770.00
Buy Now And Earn 770 Reward Points!
The TR-004 USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.
| EAN | 0885022017706 |
|---|---|
| MPN | TR-004U-US / TR-004U |
| UPC | 885022017706 |
| ASIN | B07SMB9BLG |
| Brand | QNAP |
| Color | Black |
| Model | TR-004U |
| Power | Input Voltage: 110 V AC / 220 V AC Power Supply Wattage: 100 W (open-frame) Operating Power Consumption: 100 W (reported) |
| Weight | 12.52 lb (approx.) |
| Cooling | Two 4 cm (40 mm) fans (speed adjusts based on system/drive temperature) |
| Features | Lockable drive trays Drive LEDs (drive, USB link, status) Eject button One Touch Copy button USB mode DIP switch (hardware/software control) Sleep mode (power/fan stop when host disconnects) |
| Material | Metal |
| USB Ports | 1 x USB 3.2 Gen 1 Type-C (includes 1 m USB-C to USB-A cable) |
| Dimensions | 21.26 x 16.54 x 7.87 inches (approx.) |
| Drive Bays | 4 |
| Description | The QNAP TR-004U is a 1U, short-depth 4-bay rackmount RAID expansion enclosure with a USB 3.2 Gen 1 (USB 3.0) Type-C host interface. It supports 3.5" and 2.5" SATA HDDs/SSDs (SATA III/6 Gbps) and multiple RAID modes (Individual, JBOD, RAID 0, RAID 1/10, RAID 5). RAID can be controlled via hardware (DIP switch) or software using a connected QNAP NAS or the QNAP External RAID Manager for Windows/macOS. The unit can function as a NAS expansion unit or a DAS device for direct-attached storage, and includes lockable drive trays, drive LEDs, an eject button, One Touch Copy, and power/sleep management features. Package contents include the TR-004U enclosure, power cord, 1 m USB-C to USB-A cable, two drive keys, USB cable clip, mounting/screws for 2.5" and 3.5" drives, and a quick installation guide. |
| Form Factor | 1U short-depth rackmount (12" short-depth) |
| Performance | Vendor lab: over 200 MB/s via USB 3.0 when using four drives (actual performance may vary by host and drives) |
| Rack Height | 1U |
| Manufacturer | QNAP |
| RAID Control | Hardware-controlled and software-controlled (DIP switch); configurable via QNAP NAS (Storage & Snapshots Manager) or QNAP External RAID Manager on Windows/macOS |
| Product Title | QNAP TR-004U 4-Bay 1U Rackmount USB 3.2 Gen 1 (USB 3.0) Type-C RAID Expansion Enclosure |
| Host Interface | USB 3.2 Gen 1 (USB 3.0) Type-C |
| Controller Type | Serial ATA/600 (SATA III 6 Gbps) |
| Package Contents | TR-004U 4-bay Rackmount USB 3.0 RAID Expansion Enclosure Power cord 1 x USB 3.0 Type-C to Type-A cable (1 m) 2 x drive tray keys USB cable clip Screws for 2.5" drives (12) Screws for 3.5" drives (16) Quick Installation Guide |
| Limitations & Notes | The TR-004U can only be used as an individual storage pool/volume on a connected NAS; its storage pool/volume cannot be combined into the connected NAS and NAS applications cannot be installed on the TR-004U Drives migrated from a TR-004U to a NAS (or another device) may not be recognized; drives can only be migrated between TR-004U units Drive hot-swap is not supported in Individual Mode Performance may vary depending on host system specifications and resources Certain older QNAP NAS models are not supported (examples listed by vendor: TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U and NAS models that cannot be updated to QTS 4.3.6 or later) |
| Optional Accessories | Rack ears / rack mount kit USB-C to USB-C cable |
| RAID Modes Supported | Individual JBOD RAID 0 RAID 1 RAID 10 RAID 5 |
| Supported Drive Sizes | 3.5 inch 2.5 inch |
| Supported Drive Types | SATA HDD SATA SSD |
| Supported Systems / OS | QNAP QTS Windows (including Windows Server) macOS Linux (host-managed RAID) |
| Maximum Drives Supported | 4 |
| Controller / Compatibility Notes | Can be used as NAS expansion (external storage mode) or as DAS via USB Users can configure RAID and monitor disk health using QNAP QTS Storage & Snapshots Manager or the QNAP External RAID Manager utility Supports large-capacity drives (vendor mentions support up to 40 TB drives; confirm with drive manufacturer for compatibility) |
| External RAID Manager Requirements | Windows 8.1 or later, Windows Server 2012 R2 or later, macOS 10.13 or later |
QNAP TR-004U, 4 BAY DAS(NO DISK) HARDWARE RAID EXPANSION FOR WIN,MAC,LINUX DEVICE, 1RU,2YR
