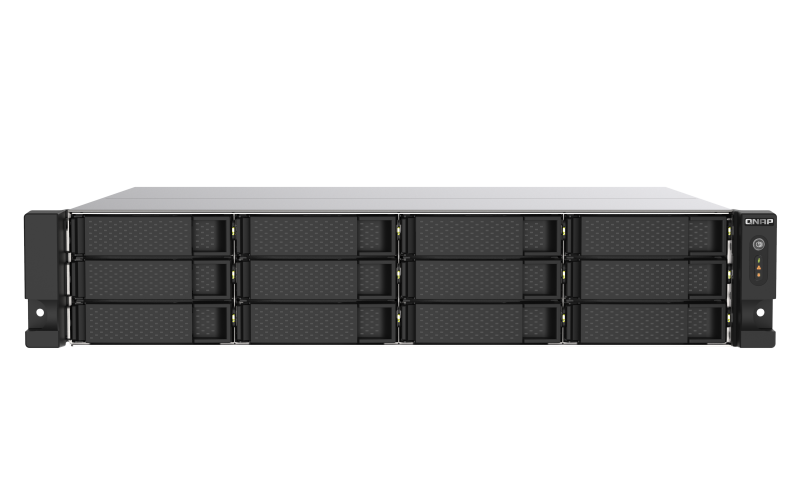

Qnap Ts-1273Au-Rp-8G 12-bay Rackmount Nas, AMD Ryzenâ„¢ Embedded V1500B Quad-core 2.2 GHz Processor, 8GB DDR4 RAM (max 32GB), 3y Wty (no Rail) TS-1273AU-RP-8G
SKU
370644
Brand
MPN
TS-1273AU-RP-8G
Warranty
Standard Manufacturer's Warranty
$5,058.00
Buy Now And Earn 5058 Reward Points!
QUICK OVERVIEW
, 8GB DDR4 RAM (max 32GB), 3y wty (no RAIL)
With its powerful AMD Ryzenâ„¢ V1000 series V1500B Quad-core processor, the TS-1273AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1273AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1273AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1273AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
| CPU | AMD Ryzen Embedded V1500B (V1500B) |
|---|---|
| SKU | TS-1273AU-RP-8G |
| Fans | 2 x 80 mm |
| Brand | QNAP |
| Color | Black |
| Model | TS-1273AU-RP-8G |
| Notes | M.2 SSDs are supported only via QNAP QM2 (PCIe) expansion cards. For memory upgrades, QNAP recommends using QNAP memory modules with identical specifications to maintain stability. |
| Series | TS-1273AU-RP |
| Category | Storage |
| Features | Hot-swappable drive bays AES-NI hardware encryption SSD caching support (via PCIe/QM2) GPU passthrough / optional GPU via PCIe for transcoding or VM passthrough Wake on LAN (via 2.5GbE port) Snapshot support (per QNAP documentation: up to 256 snapshots per volume/LUN, up to 1,024 snapshots per NAS reported) Supports QNAP virtualization and container apps, cloud gateways, surveillance station |
| Material | Metal |
| Warranty | Standard 3-year manufacturer warranty (warranty extension options available up to 5 years) |
| CPU Cores | 4 |
| CPU Speed | 2.2 GHz |
| USB Ports | 2 x USB 3.2 Gen 2 Type-C; 1 x USB 3.2 Gen 2 Type-A; 1 x USB 3.2 Gen 1 Type-A |
| Drive Bays | 12 x 3.5" / 2.5" SATA III (hot-swappable, diskless) |
| Encryption | AES-NI hardware encryption acceleration (AES-NI) |
| PCIe Slots | 2 x PCIe Gen3 x4 |
| CPU Threads | 8 |
| Description | High-performance 2U rackmount NAS with an AMD Ryzen™ Embedded V1500B quad-core (4-core/8-thread) 2.2 GHz processor and AES-NI hardware encryption. The TS-1273AU-RP-8G ships with 8 GB DDR4 UDIMM (two DIMM slots, ECC supported) and provides 12 hot-swappable 3.5"/2.5" SATA III drive bays (diskless). Dual 2.5GbE RJ45 ports and two PCIe Gen3 x4 expansion slots enable high-throughput networking and add-in options (10GbE, M.2 SSD caching via QM2, GPU, Fibre Channel). Redundant dual power supplies and enterprise features (iSCSI, virtualization certifications, RAID levels, QTS OS) make it suitable for virtualization, private cloud, VDI and other resource-demanding applications. Includes network cable, two power cords, HDD screws and quick installation guide. |
| Form Factor | 2U Rackmount |
| M.2 Support | Optional via QM2 PCIe expansion card (no onboard M.2 slots) |
| Memory Type | DDR4 UDIMM (supports ECC) |
| Memory Slots | 2 x UDIMM |
| Sub-Category | Network Attached Storage (NAS) |
| Weight (Net) | 24.54 lbs (manufacturer spec) |
| Compatibility | Client OS: Windows, macOS, Linux, Unix Supported Browsers: Latest versions of Chrome, Safari, Firefox, Microsoft Edge (per QNAP docs) |
| Network Ports | 2 x 2.5GbE RJ45 (2.5G/1G/100M/10M) |
| Product Title | QNAP TS-1273AU-RP-8G 12-Bay 2U Rackmount NAS - AMD Ryzen V1500B, 2 x 2.5GbE, Redundant PSU, 8GB DDR4 |
| iSCSI Support | Block-based iSCSI LUN supported |
| Maximum Memory | 64 GB (2 x 32 GB) - (manufacturer specs) |
| Weight (Gross) | 32.23 lbs (reported on some sources) |
| CPU Architecture | 64-bit x86 |
| Memory Installed | 8 GB UDIMM DDR4 |
| Network Features | Link aggregation (ports can be trunked up to 5 Gbps), optional 5Gb/10Gb via PCIe adapters |
| Operating System | QNAP QTS (pre-installed; versions cited include QTS 4.4.2 and QTS 5.x). QuTS hero listed as supported. |
| Dimensions (HxWxD) | 3.49 x 17.01 x 14.59 inches (manufacturer spec) |
| Operating Humidity | 5 - 95% RH non-condensing |
| Included Accessories | Ethernet cable x1, Power cord x2, Flat head screws for 3.5" HDD x48, Flat head screws for 2.5" HDD x36, Quick installation guide |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| RAID Levels Supported | Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Supported Drive Types | 3.5" SATA HDD, 2.5" SATA SSD |
| Redundant Power Supply | Yes (2 x 300W PSUs) |
| Storage Controller Interface | SATA III (6 Gb/s) |
| Virtualization Certifications | VMware Ready, Microsoft Hyper-V, Citrix |
| Performance (selected, reported) | 2.5GbE Windows Upload: 295 MB/s 2.5GbE Windows Download: 272 MB/s 2 x 10GbE Sequential Read: 2148 MB/s (reported in some test configurations) 2 x 10GbE Sequential Write: 1443 MB/s (reported in some test configurations) 2 x 2.5GbE Sequential (1M, Iometer) Read: 542 MB/s 2 x 2.5GbE Sequential (1M, Iometer) Write: 591 MB/s |
| Power Consumption (Disk Standby) | 43.67 W (reported) |
| Power Consumption (Operating, Typical) | 78.92 W (typical, reported) |
QNAP TS-1273AU-RP-8G 12-bay rackmount NAS, AMD Ryzenâ„¢ Embedded V1500B quad-core 2.2 GHz processor, 8GB DDR4 RAM (max 32GB), 3y wty (no RAIL)
