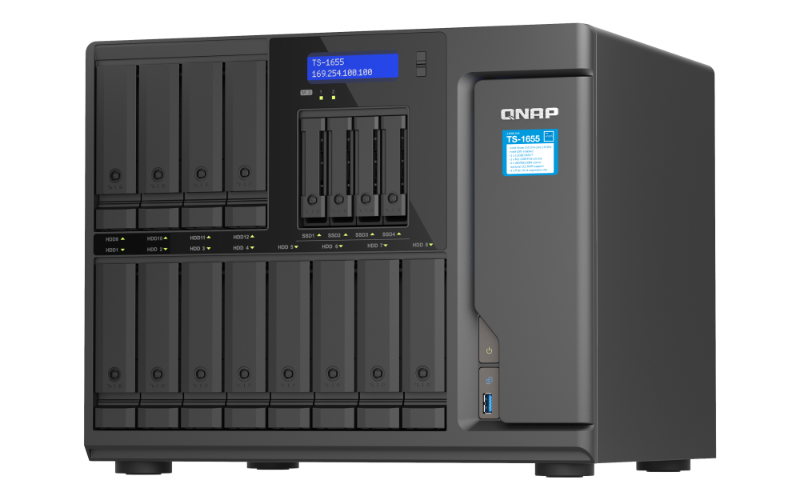

QNAP 16-BAY NAS (NO DISK) ATOM 8-CORE 2.8GHz, 8GB, 2.5GbE(2), M.2(2), 3YR WTY TS-1655-8G
SKU
401967
Brand
MPN
TS-1655-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $3,292.00 Regular Price $3,786.00
Buy Now And Earn 3292 Reward Points!
QNAP 16-BAY NAS (NO DISK) ATOM 8-CORE 2.8GHz, 8GB, 2.5GbE(2), M.2(2), 3YR WTY
| CPU | Intel ® Atom® C5125 8-core processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB UDIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x U-DIMM DDR4 Support ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable |
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card
Optional via PCIe expansion card
|
| 25 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | |
| PCIe Slot | 3 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x4 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 294.29 × 369.89 × 319.8 mm |
| Weight (Net) | 13.16 kg |
| Weight (Gross) | 16.68 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W, 100-240V
1 x 8-pin PCI-e cable + 1 x 8 (6+2)-pin PCI-e cable
|
| Power Consumption: HDD Sleep Mode | 68.004 W |
| Power Consumption: Operating Mode, Typical | 104.65 W
Tested fully populated with 1TB hard drives and 120GB solid-state drives.
|
| Fan | System fan: 3 x 92mm, 12VDC CPU fan: 2 x 97mm, 12VDC |
| Other Interfaces | Kensington security slot |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
QNAP 16-BAY NAS (NO DISK) ATOM 8-CORE 2.8GHz, 8GB, 2.5GbE(2), M.2(2), 3YR WTY
