Qnap Ts-1655-8G, Intel Atom C5125 8-core Processor, 2.8GHz, 8 Gb Udimm DDR4 (max 128GB), 12 X 3.5-inch + 4 X 2.5-inch Sata 6Gb/s, 3Gb/s,2 X M.2 2280, 2y Ar Wty TS-1655-8G
SKU
410021
Brand
MPN
TS-1655-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,958.00
Buy Now And Earn 3958 Reward Points!
QNAP TS-1655-8G,
Intel Atom C5125 8-core processor,
2.8GHz, 8 GB UDIMM DDR4 (max 128GB), 1
2 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s,
2 x M.2 2280 PCIe Gen3 x2 slots,
2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M),
4 x USB 3.2 Gen 1 port,
2 yrs Advanced Replacement Wty,
Intel Atom C5125 8-core processor,
2.8GHz, 8 GB UDIMM DDR4 (max 128GB), 1
2 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s,
2 x M.2 2280 PCIe Gen3 x2 slots,
2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M),
4 x USB 3.2 Gen 1 port,
2 yrs Advanced Replacement Wty,
| EAN | 4711103083178 |
|---|---|
| Brand | QNAP |
| Model | TS-1655-8G |
| Category | Storage |
| Diskless | Yes (sold as enclosure without drives) |
| Warranty | 3 years |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 (x2) |
| Processor | Intel Atom C5125 |
| USB Ports | 4 x USB 3.2 Gen1 (5 Gbps) |

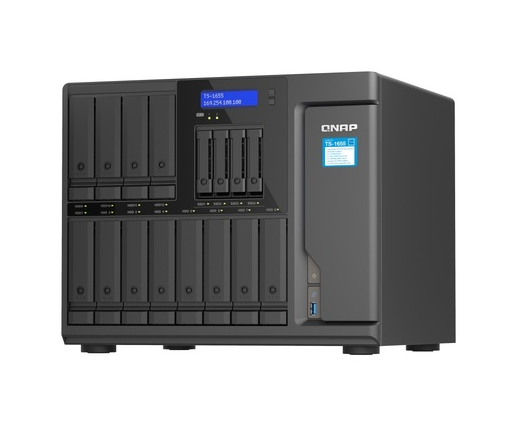

| Description | The QNAP TS-1655-8G is a high-capacity 16-bay desktop/tower NAS designed for hybrid storage in business environments. Powered by an Intel Atom C5125 8-core 2.8 GHz processor with Intel QuickAssist Technology (QAT) and AES-NI encryption, the diskless enclosure includes 8 GB DDR4 UDIMM (1 x 8 GB) preinstalled and four UDIMM slots (ECC supported) expandable up to 128 GB. It supports twelve 3.5" SATA HDD bays plus four 2.5" SATA SSD bays (hot-swappable), 2x M.2 2280 PCIe Gen3 slots, dual 2.5GbE RJ45 ports, 4x USB 3.2 Gen1 ports, and 3x PCIe Gen3 x4 expansion slots (for 10GbE/25GbE or other cards). Enterprise features include RAID 0/1/5/6/10/50/60 and JBOD support, SSD caching, SR-IOV support, snapshots, virtualization/container hosting, iSCSI, VMware/Hyper-V backup support, and S3-compatible object storage. |
| ECC Support | ECC supported (non-ECC module preinstalled) |
| Form Factor | Desktop / Tower |
| Memory Type | DDR4 UDIMM |
| Memory Slots | 4 UDIMM slots |
| Power Supply | 550W PSU |
| Sub-Category | Network Attached Storage (NAS) |
| Product Title | QNAP TS-1655-8G 16-Bay Desktop NAS (Intel Atom C5125, 8GB DDR4, 2.5GbE) |
| Included Items | TS-1655 storage system (diskless), 1 x Ethernet cable, 1 x power cord, 36 flat-head screws for 3.5" HDD, 36 flat-head screws for 2.5" HDD, 2 x drive tray keys, Quick Installation Guide |
| Maximum Memory | Up to 128 GB (4 x 32 GB) |
| PCIe Expansion | 3 x PCIe Gen3 x4 slots |
| Country of Origin | Taiwan |
| Drive Bay Details | 12 x 3.5" SATA 6Gb/s HDD bays (hot-swappable), 4 x 2.5" SATA 6Gb/s SSD bays (hot-swappable) |
| Processor Details | 8 cores / 8 threads, 2.8 GHz; supports Intel QuickAssist Technology (QAT) |
| Drive Bays (total) | 16 |
| Network Interfaces | 2 x 2.5GbE RJ-45 (2.5G/1G/100M) |
| Memory (preinstalled) | 8 GB DDR4 UDIMM (1 x 8 GB) |
| RAID Levels Supported | RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| Expansion / Optional Cards | Supports installation of 10GbE/25GbE dual-port cards, QM2 cards, Fibre Channel and storage expansion cards via PCIe |
| Hardware Encryption / Security | AES-NI; Intel QuickAssist (QAT) for compression and crypto offload; SR-IOV support |
| Manufacturer Part Number (MPN) | TS-1655-8G-US |
| Supported Protocols / Features | iSCSI, snapshots, virtualization and container hosting, local/remote/cloud backup, VMware/Hyper-V backup, S3-compatible object storage, SSD caching |
QNAP TS-1655-8G, Intel Atom C5125 8-core processor, 2.8GHz, 8 GB UDIMM DDR4 (max 128GB), 12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s,2 x M.2 2280, 2y AR wty
