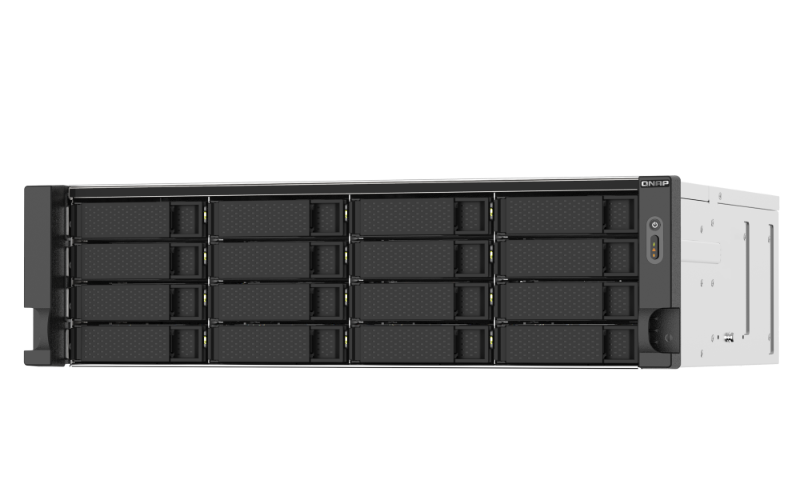

Qnap Ts-1673Au-Rp-16G 16-bay Rackmount Nas, AMD Ryzenâ„¢ Embedded V1500B Quad-core 2.2 GHz Processor, 16GB DDR4 RAM (max 64GB), 3y Wty (no Rail) TS-1673AU-RP-16G
SKU
408719
Brand
MPN
TS-1673AU-RP-16G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $6,634.00 Regular Price $7,629.00
Buy Now And Earn 6634 Reward Points!
With its powerful AMD Ryzenâ„¢ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
| CPU | Cores: 4 Model: AMD Ryzen Embedded V1500B Threads: 8 Encryption: AES-NI hardware-accelerated Clock Speed: 2.2 GHz |
|---|---|
| SKU | TS-1673AU-RP-16G |
| UPC | 885022019915 |
| Brand | QNAP |
| Model | TS-1673AU-RP-16G |
| Notes | Where multiple model identifiers were provided, TS-1673AU-RP-16G (also referenced as TS-1673AU-RP-16G-US) is used as the consolidated model. All technical specifications are drawn from the provided source details. |
| Memory | Installed: 16 GB DDR4 ECC UDIMM Memory Slots: 2 x UDIMM (ECC supported) Expandable To: Up to 64 GB DDR4 |
| Weight | Net: 12 kg (≈26.46 lb) Gross (reported): ≈17.15 kg |
| Network | Notes: 2.5GbE ports are backward compatible with 1GbE/100MbE/10MbE; port trunking supports aggregated throughput (up to 5 Gb/s with trunking) Ports: 2 x 2.5GbE RJ45 |
| Warranty | 3-year limited (extendable up to 5 years, optional) |
| Snapshots | Per NAS: Up to 1,024 snapshots Per Volume/LUN: Up to 256 snapshots |
| USB Ports | USB 3.2 Gen 1 Type-A: 1 USB 3.2 Gen 2 Type-A: 1 USB 3.2 Gen 2 Type-C: 2 |
| Dimensions | Depth: 425 mm (16.7 in) Width: 482 mm (≈19.0 in) Height: 132 mm (5.2 in) |
| Drive Bays | 16 x 3.5"/2.5" SATA (hot-swap) |
| PCIe Slots | 2 x PCIe Gen 3 x4 (for QM2/M.2, 10GbE/5GbE adapters, USB expansion, GPU, Fibre Channel, etc.) |
| Description | The QNAP TS-1673AU-RP-16G is a high-performance 3U 16-bay rackmount NAS powered by an AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor with AES-NI encryption acceleration. With 16 GB DDR4 ECC UDIMM installed (expandable up to 64 GB), dual 2.5GbE RJ45 ports, two PCIe Gen3 x4 expansion slots and redundant power supplies, the TS-1673AU-RP is designed for virtualization, VDI, private cloud and other resource-demanding business applications. It supports QTS and QuTS hero, block- and file-based iSCSI, SSD caching/Qtier, entry-level GPU support and comprehensive RAID and snapshot capabilities for data protection and performance optimization. |
| Form Factor | 3U Rackmount |
| GPU Support | Supports entry-level low-profile NVIDIA GeForce cards (e.g., GT 1030 / GT 1050) for hardware-accelerated transcoding; GPU passthrough supported |
| M.2 Support | Optional via QNAP QM2 PCIe card (M.2 NVMe support via expansion card) |
| RAID Levels | JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60 Hot Spare |
| Flash Memory | 5 GB (dual-boot OS protection) |
| Product Line | TS-1673AU-RP |
| Product Title | QNAP TS-1673AU-RP-16G 3U 16-Bay Rackmount NAS (AMD Ryzen V1500B, 16GB, 2x2.5GbE, Redundant PSU) |
| Other Features | Rack-mountable 3U chassis Supports Fibre Channel SAN via QNAP card Expandability via PCIe cards (10GbE, M.2 NVMe, USB, wireless, Fibre Channel) Supports block- and file-based cloud gateways with local caching Audible alarm |
| Power & Cooling | Cooling: Triple 80 mm fans Power Supplies: 2 x 550 W (redundant) Power Consumption (HDD Sleep/Standby): ≈47.75 W Power Consumption (Operating, fully populated): ≈97.34 W |
| Operating System | Default: QTS (e.g., QTS 4.4.2) Alternate: QuTS hero (ZFS-based) supported (notes/requirements apply) |
| Storage Features | SSD cache acceleration Qtier auto-tiering Supports adding SSD cache to increase IOPS and reduce latency Supports block-based iSCSI LUNs |
| Operating Environment | Operating Humidity: 5 - 95% (non-condensing) Storage Temperature: -20 - 70 °C Operating Temperature: 0 - 40 °C |
| Security & Encryption | 256-bit AES AES-NI SSL FIPS 140-2 (listed by some specifications) |
| Supported Drive Types | 3.5" SATA HDDs, 2.5" SATA SSDs (SATA III 6 Gb/s) |
| Indicators & Management | HDD status LEDs LAN LEDs USB LED Power LED Wake on LAN (WOL) Remote management via HTTP/HTTPS/SNMP/SSH/Telnet |
| Manufacturer Part Number | TS-1673AU-RP-16G-US |
| Certifications / Regulatory | TCO: No (reported) EPEAT: No (reported) ENERGY STAR: No (reported) |
| Virtualization & Compatibility | iSCSI: Supports block-based iSCSI LUN; compatible with VMware, Citrix, Microsoft Hyper-V, Windows Server; supports VMware VAAI and Microsoft ODX Certifications: [ "VMware Ready", "Microsoft Hyper-V", "Citrix", "Veeam Ready" ] Virtualization Support: Virtualization Station, Container Station, GPU passthrough supported |
| Included Items / Package Content | QNAP TS-1673AU-RP Storage unit 1 x Ethernet cable 2 x Power cords 64 x Flat head screws (for 3.5" HDD) 48 x Flat head screws (for 2.5" HDD) Quick Installation Guide |
QNAP TS-1673AU-RP-16G 16-bay rackmount NAS, AMD Ryzenâ„¢ Embedded V1500B quad-core 2.2 GHz processor, 16GB DDR4 RAM (max 64GB), 3y wty (no RAIL)
