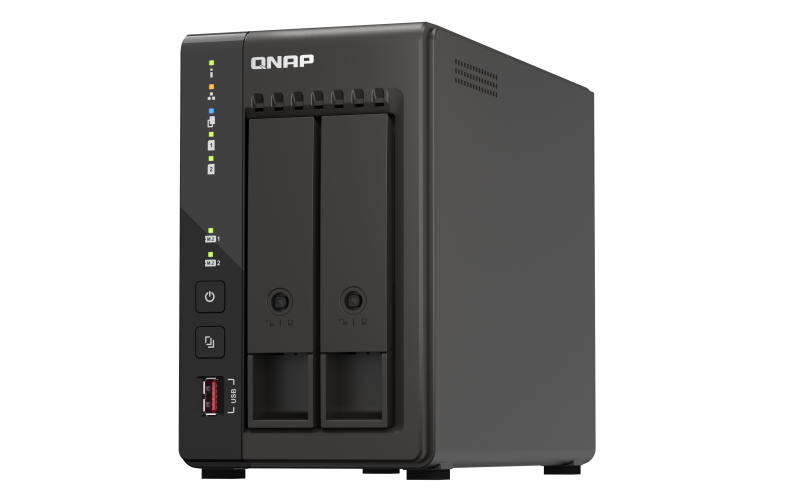

Qnap Ts-253E-8G, 2-bay Desktop Nas, Intel Celeron J6412 4C 2.0GHz, Burst 2.6GHz, Onboard 8GB Ram, 2 X Hdmi 1.4b, 2x M.2 2280 PCIe Slots, 2x 2.5GbE, 2 Years Wty TS-253E-8G
SKU
387785
Brand
MPN
TS-253E-8G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,175.00
Buy Now And Earn 1175 Reward Points!
QNAP TS-253E-8G, 2-bay desktop NAS, Intel Celeron J6412 4C 2.0GHz, burst 2.6GHz, onboard 8GB RAM, 2 x HDMI 1.4b, 2x M.2 2280 PCIe slots, 2x 2.5GbE, 3 Years WTY
| CPU | Intel Celeron J6412 (4-core / 4-thread) |
|---|---|
| Fan | 1 x 70 mm, 12 VDC |
| GPU | Intel UHD Graphics |
| MPN | TS-253E-8G-US |
| SKU | TS-253E-8G |
| ASIN | B0B99C8KDS |
| Brand | QNAP |
| Color | Black |
| Model | TS-253E-8G |
| Notes | Ships diskless. For HDD/M.2 compatibility lists and detailed compatibility, refer to QNAP compatibility resources. |
| Buttons | Power, Reset, USB Auto Copy |
| Network | 2 x 2.5GbE RJ-45 LAN ports (supports 2.5G/1G/100M) |
| Category | Storage |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x2 NVMe (compatible with NVMe SSD PCIe Gen3 and above) |
| USB Ports | 2 x USB 3.2 Gen2 Type-A (10 Gbps), 2 x USB 2.0 |
| Drive Bays | 2 x 3.5-inch SATA 6Gb/s (supports 2.5-inch SATA SSDs) |
| Description | The QNAP TS-253E-8G is a 2-bay desktop NAS enclosure powered by an Intel® Celeron® J6412 4-core/4-thread processor with Intel UHD Graphics and AES-NI encryption. It ships diskless with 8 GB DDR4 (SODIMM) installed, supports up to 16 GB (2 x 8 GB), and provides dual 2.5GbE LAN for accelerated file sharing. Storage options include 2 x 3.5" SATA drive bays (also compatible with 2.5" SATA SSDs) plus 2 x M.2 2280 PCIe Gen3 x2 NVMe slots for SSD caching or storage pools. The system includes multiple USB ports (2 x USB 3.2 Gen2 Type-A, 2 x USB 2.0), 2 x HDMI 1.4b outputs (up to 3840 x 2160 @ 30Hz), and runs QTS (5.2.8) or QuTS hero (h5.2.8). Bundled accessories include an Ethernet cable, power cord and AC adapter, drive screws, M.2 screws, quick installation guide, and drive tray keys. |
| Form Factor | Desktop / Tower |
| Flash Memory | 4 GB (dual-boot OS protection) |
| Memory Slots | 2 x SODIMM DDR4 |
| Power Supply | 60W/65W AC adapter, 100-240V |
| Sub-Category | Network Attached Storage (NAS) |
| Video Output | 2 x HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Weight (Net) | 5.67 lbs |
| Hot-swappable | M.2 SSD hot-swap not supported (drive bay hot-swap not explicitly specified) |
| Product Title | QNAP TS-253E-8G 2-Bay Desktop NAS (Intel Celeron J6412, 8GB DDR4, Dual 2.5GbE, Diskless) |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Maximum Memory | 16 GB (2 x 8 GB) |
| Number of Bays | 2 |
| System Warning | Buzzer |
| CPU Architecture | 64-bit x86 |
| Operating System | QTS 5.2.8; QuTS hero h5.2.8 supported |
| Encryption Engine | AES-NI |
| Relative Humidity | 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| Standard Warranty | 3 |
| Dimensions (HxWxD) | 6.5 × 4.02 × 8.69 inches (dimensions do not include foot pad) |
| Bundled Accessories | Ethernet cable x1, Power cord x1, AC adapter, Flat head screws for M.2 x2, Flat head screws for 3.5" HDD x8, Flat head screws for 2.5" HDD x6, Quick installation guide, Drive tray keys x2 |
| CPU Burst Frequency | Listed up to 2.6 GHz |
| Drive Compatibility | 3.5-inch SATA HDD, 2.5-inch SATA SSD |
| Storage Temperature | -20 - 70 °C (-4 - 158 °F) |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| Item Weight (as listed) | 5.41 - 5.67 pounds (sources list 5.41 lb and 5.67 lb) |
| Maximum Pool Size (QTS) | 308 TB |
| RAID Levels (supported) | JBOD, Single, RAID 0, RAID 1 (for 2-bay configuration) |
| Maximum Volume Size (QTS) | 250 TB |
| System Memory (Installed) | 8 GB DDR4 (SODIMM) |
| Maximum LUN Size (QuTS hero) | 1024 TB |
| Maximum Pool Size (QuTS hero) | 5 PB |
| Optional Accessories (listed) | PWR-ADAPTER-65W-A01 (EOL), PWR-ADAPTER-65W-A04, SCR-HDD25A-96, SCR-HDD35B-96, TRAY-35-BLK01, HS-M2SSD-01, RAM-8GDR4D0-SO-3200, RAM-8GDR4K0-SO-3200 |
| SSD Cache Acceleration Support | Yes (via M.2 NVMe slots) |
| Maximum Number of Volumes (QTS) | 128 |
| Maximum Shared Folder Size (QTS) | 250 TB |
| Supported Browsers and Languages | Supports latest versions of Safari, Chrome, Edge, Firefox; multiple UI languages (Chinese, English, French, German, Japanese, Korean, Spanish, etc.) |
| Supported Client Operating Systems | Apple macOS 10.10 or later; Ubuntu 14.04+, CentOS 7+, RHEL 6.6+, SUSE 12+; IBM AIX 7, Solaris 10+; Microsoft Windows 7/8/10/11 and Windows Server 2008 R2/2012/2012 R2/2016/2019/2022/2025 |
| Maximum Number of Storage Pools (QTS) | 128 |
| Power Consumption (Disk Standby Mode) | 20.943 W |
| Maximum Number of Shared Folders (QTS) | 512 |
| Maximum Shared Folder Size (QuTS hero) | 5 PB |
| Power Consumption (Operating, Typical) | 24.238 W |
| Product Dimensions (alternate listing) | 17 x 23 x 11 inches (alternate source listing) |
| Maximum Number of Targets LUN (QuTS hero) | 256 |
| Maximum Number of Storage Pools (QuTS hero) | 128 |
| Maximum Number of Shared Folders (QuTS hero) | 256 |
| Max Concurrent CIFS Connections (with max memory) | 1500 |
QNAP TS-253E-8G, 2-bay desktop NAS, Intel Celeron J6412 4C 2.0GHz, burst 2.6GHz, onboard 8GB RAM, 2 x HDMI 1.4b, 2x M.2 2280 PCIe slots, 2x 2.5GbE, 2 Years WTY
